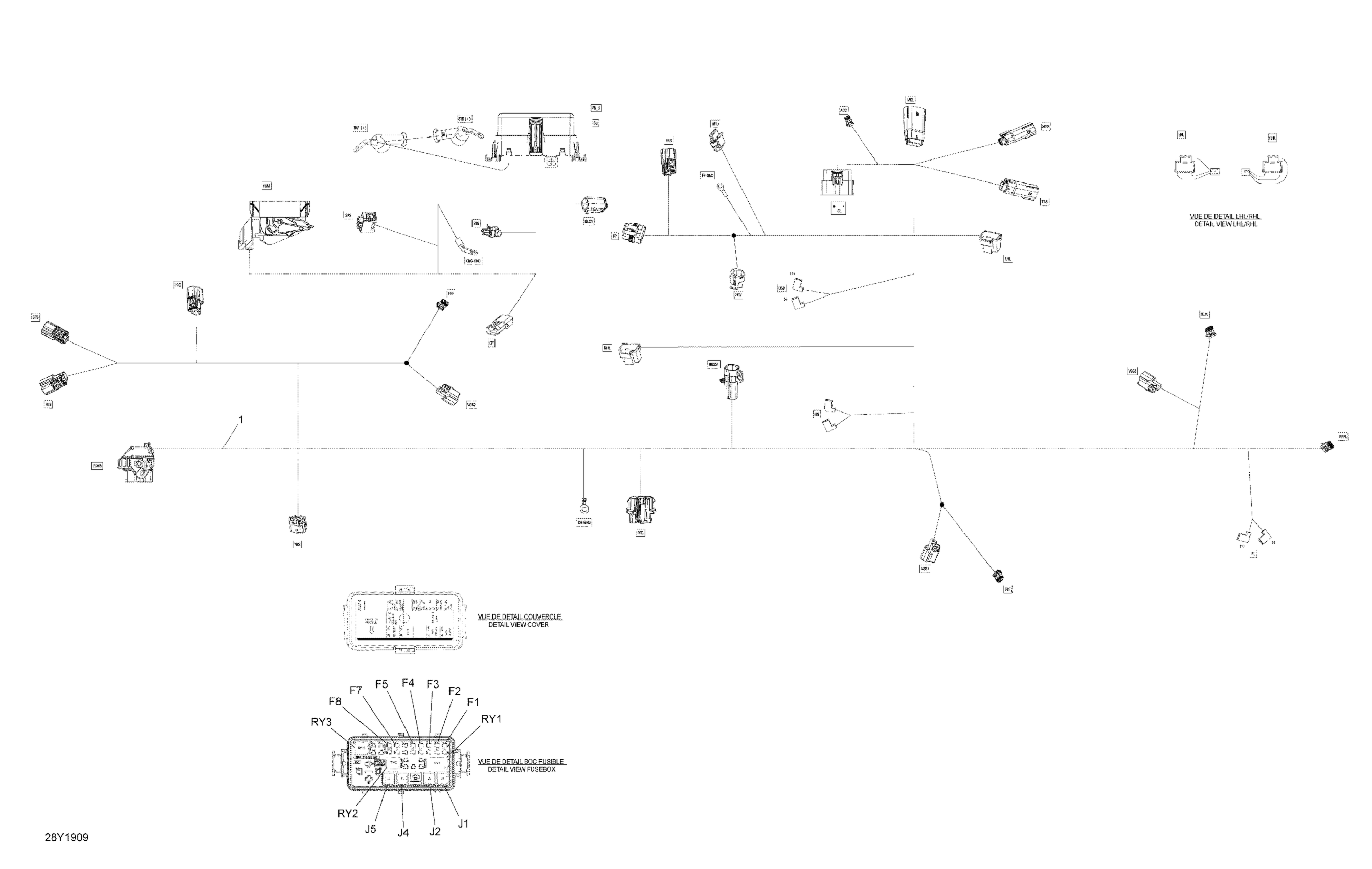

Can-Am On-Road 001 - RYKER STD 600 ACE, 2019 10- Electrical - Main Harness - 710005404 - North America Diagram

#

Description
Price

1

Wiring Harness, Chassis

710006898

$629.99

ACC

Housing JAE 2 Circuits

278002856

$14.29

ACC

Female Terminal

278002857

$0.92

BAT(+)

Protector Cap

710000393

$9.59

BFS

Female Terminal

515178018

$1.19

BFS

Connector 2 Pins with CPA

710005827

$23.49

BLS

Female Housing, 4 circuits

278003535

$25.99

BLS

Female Terminal

515178573

$2.29

BLS

Protector Cap

710000393

$9.59

CF

Female Housing, 2 Circuits

278000217

$9.59

CF

Male Terminal | XT Models

278000222

$3.19

CF

Wire Seal

278001065

$7.69

CH_GND

Open Barrel

278000992

$2.21

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

DLC1

Lock

710002705

$4.44

DLC1

Female Housing 6 Circuits

710002706

$20.49

DLC1

Female Terminal

710005438

$4.29

DLC1

Female Terminal

710005439

$4.44

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001727

$3.19

ENG_GND

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

F1

Little Fuse, 7.5 Amperes

710000743

$8.49

F2

Little Fuse, 15 Ampere

710000745

$8.49

F3

Little Fuse, 5 Amperes

710000742

$8.79

F4

Little Fuse, 15 Ampere

710000745

$8.49

F5

Little Fuse, 20 Amperes

710000746

$8.49

F7

Little Fuse, 10 Amperes

710000744

$8.79

F8

Little Fuse, 15 Ampere

710000745

$8.49

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

278002578

$1.04

FB

Seal Plug

278002880

$7.86

FB

Female Terminal

710000918

$7.69

FB

Terminal

710001630

$2.09

FB

Cap

710001631

$1.09

FB

Terminal Joint

710001905

$2.09

FB

Terminal

710001906

$2.54

FB

Seal Joint

710003133

$0.90

FB

Seal Joint

710003134

$1.39

FB

M Terminal

710003135

$2.79

FB

Fusebox Ass'y

710005623

$49.49

FB_C

Little Fuse, 7.5 Amperes

710000743

$8.49

FB_C

Little Fuse, 10 Amperes

710000744

$8.79

FB_C

Little Fuse, 15 Ampere

710000745

$8.49

FB_C

Little Fuse, 20 Amperes

710000746

$8.49

FB_C

Female Terminal

710000837

$5.39

FB_C

Cover

710007491

$17.99

FLF

Female Terminal

278002857

$0.92

FLF

Female Housing, 3 Circuits

515178538

$16.99

FP

Wire Seal

278001013

$3.28

FP

Female Terminal

278001014

$3.28

FP

Ring Terminal

515175504

$9.12

FP

Relay, 30 AMP

515176774

$21.99

FP

Female Terminal

710001340

$5.89

FP_GND

Wire Seal

515176621

$7.49

FP_GND

Female Housing

515177441

$17.59

FRF

Female Terminal

278002857

$0.92

FRF

Female Terminal

515178572

$2.29

HIC

Sealing Cap

278002860

$1.79

HIC

Female Terminal

409010300

$4.39

HIC

12 Circuits Male Housing

515178015

$13.16

HIC

Female Terminal

515178018

$1.19

HN

Female Terminal

409010300

$4.39

HO2S1

Seal

278001482

$3.19

HO2S1

Connector Holder

710002033

$3.39

HO2S1

Housing

710002466

$3.19

HO2S1

Gold Terminal

710002597

$3.19

J1

Fuse, 40 AMP

710001047

$11.80

J2

Fuse, 25 AMP

710001046

$3.91

J4

Fuse 30 amp.

710001200

$7.20

J5

Fuse, 50 AMP

710001048

$5.08

LHL

Terminal

515177217

$15.79

LHL

Female Housing

710004010

$6.79

MSL

Sealing Cap

278002860

$1.79

MSL

Male Terminal

515178013

$3.19

MSL

Female Terminal

515178018

$1.19

MSR

Male Terminal

515178013

$3.19

MSR

Female Terminal 18-20 AWG

515178348

$2.09

PGV

Female Terminal

278001481

$3.49

PGV

Seal

278001482

$3.19

PGV

Female Housing 2 Way

710005327

$3.59

PL

Female Terminal

409010300

$4.39

PRS

Male Housing Connector 4 Pins

515178347

$14.28

PRS

Connector 2 Pins with CPA

710005827

$23.49

REG

Female Housing, 4 circuits

278003535

$25.99

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Seal

710000881

$17.99

REG

Terminal

710001934

$5.50

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RHL

Shrink Tubing, 6 mm

515177246

$1.04

RHL

Female Housing

710004010

$6.79

RLFL

Female Terminal

278002857

$0.92

RLFL

Female Housing

515177441

$17.59

RRFL

Female Terminal

278002857

$0.92

RRFL

Male Terminal

515178013

$3.19

RY1

Relay, 30 AMP

515176774

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

SAS

Wire Seal

710001118

$1.16

SAS

Plug

710001938

$2.46

SAS

Housing

710003731

$8.59

SAS

Female Terminal

710003862

$2.43

STS

Terminal

515177217

$15.79

STS

Seal

710000926

$2.24

STS

Female Terminal

710001164

$8.89

STS (+)

Little Fuse, 5 Amperes

710000742

$8.79

STS (+)

Ring Terminal M6 x 45° Wire # 8

710006288

$5.82

TAS

Male Housing, 6 Circuits

278002906

$14.24

TAS

Female Terminal

515178014

$2.39

USB

Female Housing, 4 Circuits

409209700

$16.18

VCM

Wire Seal

278000999

$3.19

VCM

Female Terminal

710000877

$9.12

VCM

Wire Seal

710001159

$6.35

VCM

Plug

710001258

$3.29

VCM

Housing

710002768

$17.59

VCM

Terminal

710002773

$2.09

VCM

Terminal

710002775

$0.74

VCM

Connector Cover, 90 Degree

710005425

$2.53

VCM

Wire Seal

710006230

$1.49

VSS 1

Female Terminal 18-20 AWG

515178348

$2.09

VSS 1

Connector 2 Pins

710005669

$2.24

VSS 1

Seal

710005689

$2.09

VSS 2

Female Terminal 18-20 AWG

515178348

$2.09

VSS 2

Connector 2 Pins

710005669

$2.24

VSS 2

Seal

710005689

$2.09

VSS 3

Female Terminal 18-20 AWG

515178348

$2.09

VSS 3

Connector 2 Pins

710005669

$2.24

VSS 3

Seal

710005689

$2.09

YRS

Wire Seal

710001118

$1.16

YRS

Housing

710003730

$14.83

YRS

Female Terminal

710003862

$2.43
