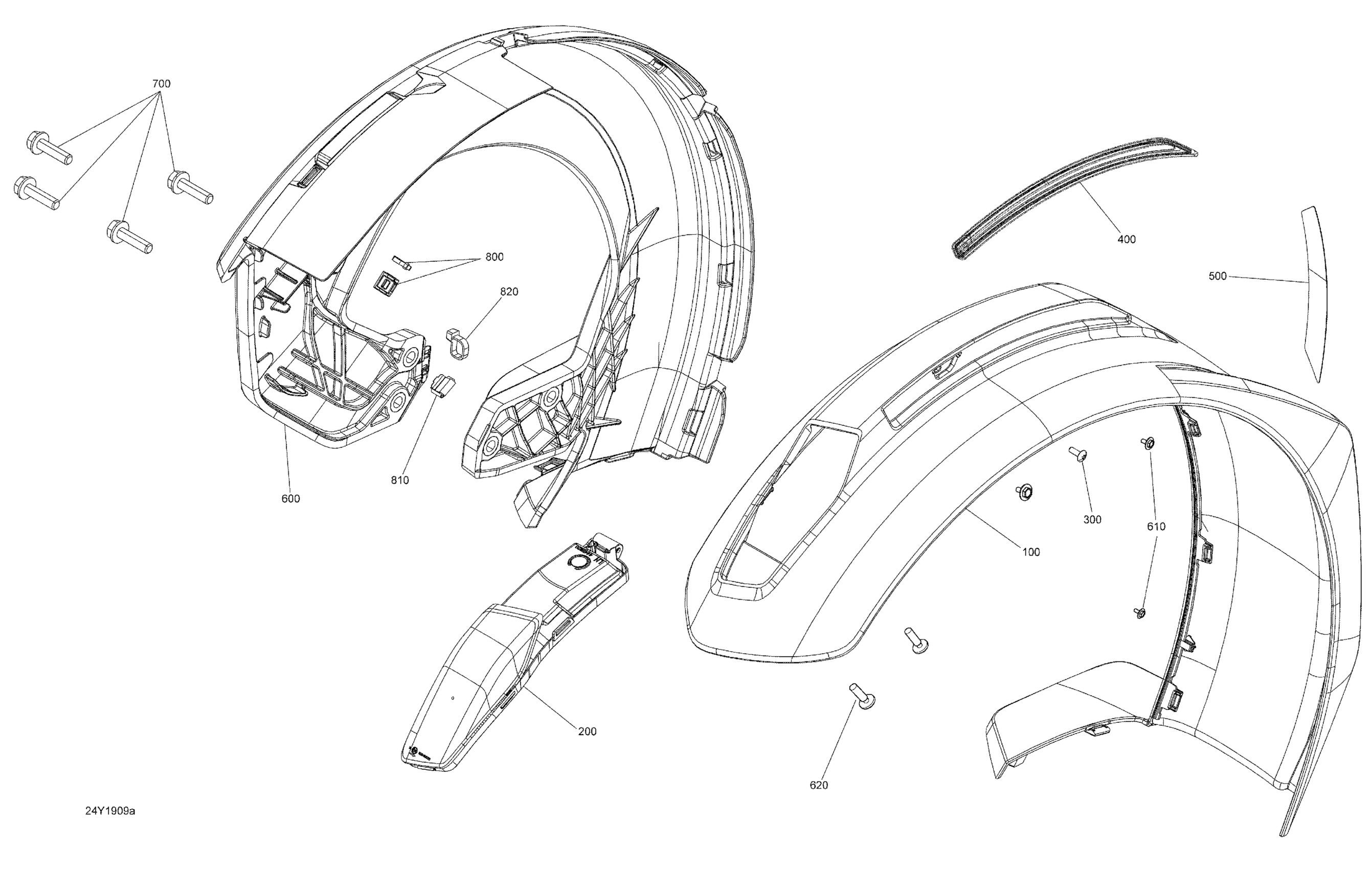

Can-Am RYKER STD 600 ACE, 2019 Body - Front Fender LH Diagram

Description

Price

100

LH Front Fender

705010755

$204.99

200

LH Front Position Light

710007008

$119.99

300

Torx Truss Screw K40 X 12

250000577

$2.11

400

Yellow, LH Reflector

705012404

$18.49

500

Rear Reflector, Front Fender

705012406

$4.59

600

LH Fender Support

705011696

$114.99

610

Plastite Screw M4 X 10

250000805

$2.11

620

Torx Screw K50 X 16

250000720

$1.69

700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

800

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

810

Clip Bracket Connector (edge)

409210100

$2.09

820

Tie Wrap 368 mm

293750008

$1.04
