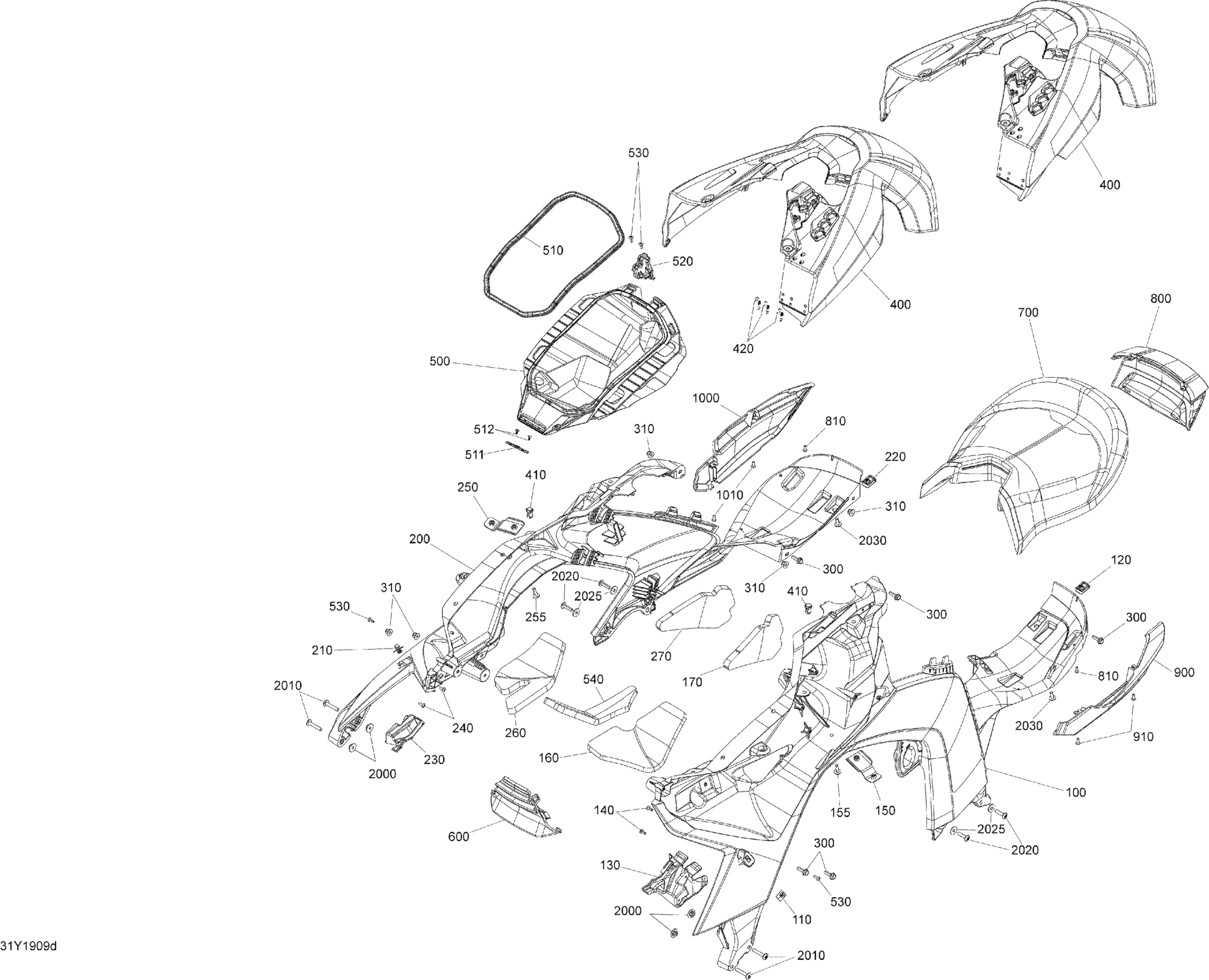

Can-Am RYKER STD 600 ACE, 2019 Body - Driver Seat / Upper Body Module Diagram

#

Description
Price

100

LH Upper Frame

705205817

$144.99

110

Dart Clip

293730080

$1.15

120

Panel Nut M6 X 1.0

250100208

$1.46

130

LH Holder (support)

705013415

$4.19

140

Torx Truss Screw K40 X 12

250000577

$2.11

150

Low Beam Support Ass'y

705207855

$20.99

155

Torx Screw M6 X 20

250000722

$1.68

160

LH Upper Front Acoustic Foam

705013944

$4.39

170

LH Upper Rear Acoustic Foam

705013946

$19.49

200

RH Upper Frame

705205818

$144.99

210

Dart Clip

293730080

$1.15

220

Panel Nut M6 X 1.0

250100208

$1.46

230

RH Holder (support)

705013416

$4.19

240

Torx Truss Screw K40 X 12

250000577

$2.11

250

Low Beam Support Ass'y

705207855

$20.99

255

Torx Screw M6 X 20

250000722

$1.68

260

RH Upper Front Acoustic Foam

705013945

$5.49

270

RH Upper Rear Acoustic Foam

705013947

$19.49

300

Hex. Flange Screw M6 X 20

207662054

$1.01

310

Hex. Flange Elastic Nut M6

233261466

$2.00

400

Tank Cover | North America

705016405

$214.99

400

Tank Cover | International

705016403

$214.99

410

Tuflok Plastic Rivet

293150230

$1.47

420

Clip Connector

515178223

$2.09

500

Storage Compartment Front

705205819

$109.99

510

Neoprene Seal Joint

708200794

$15.99

511

Pivot

705013475

$1.49

512

Torx-Truss Screw K40 X 10

250001034

$0.98

520

Push Latch

705007380

$62.99

530

Torx Truss Screw K40 X 12

250000577

$2.11

540

Acoustic Foam, Storage Compartment

705013943

$4.39

600

Center Front Fairing

705013110

$20.99

700

Driver Seat

708002411

$249.99

800

Rear Spoiler

705013202

$19.99

810

Torx Truss Screw K40 X 12

250000577

$2.11

900

LH Side Cap

705013413

$15.99

910

Torx Truss Screw K40 X 12

250000577

$2.11

1000

RH Side Cap

705013414

$15.99

1010

Torx Truss Screw K40 X 12

250000577

$2.11

2000

Large Shoulder Nut M6

705014119

$6.14

2010

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

2020

Torx Truss Screw M6 X 25

250000807

$2.11

2025

Stainless Steel Flat Washer

234062670

$2.11

2030

Torx Truss Screw M6 X 16

250000721

$1.69
