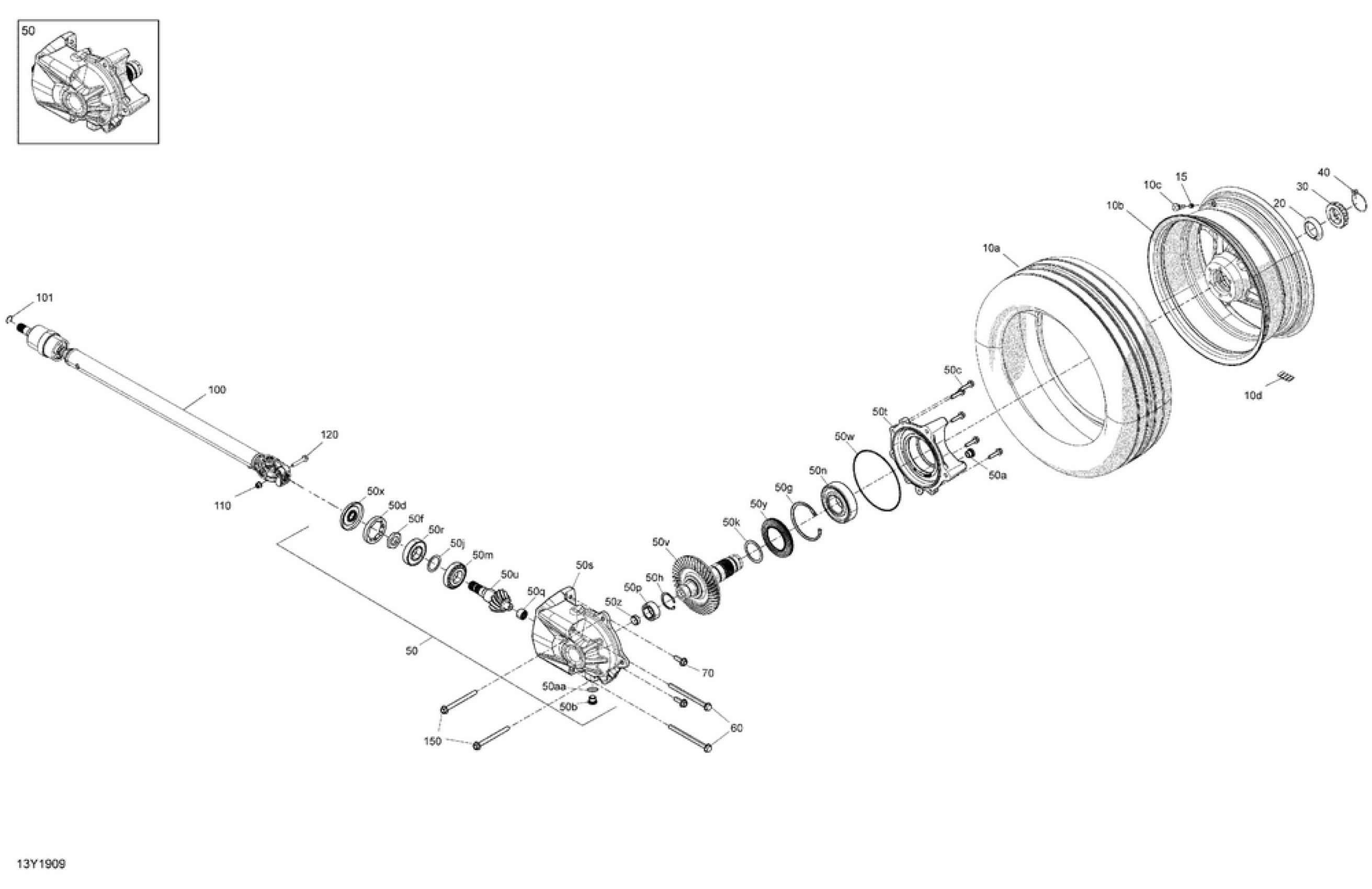

Can-Am RYKER STD 600 ACE, 2019 Drive System, Rear Drive Shaft & Final Drive + Wheel + Tire Diagram

#

Description
Price

10a

Rear Tire 205/45/R16 - 77T

705502453

$185.49

10b

Carbon Black, 16 inch Rim

705503342

$389.99

10c

Rim Valve With Cap

705400193

$8.69

10d

Self Adhesive Weight, 5G 20mm

705502106

$4.69

15

Valve Cap

293000110

$1.59

20

Conical Support Ring

705401983

$17.59

30

Wheel Nut M45

705402730

$31.99

40

External Retaining Ring

293370168

$2.32

50

Final Drive Unit | Includes 50 to 50aa

705503043

$1,420.49

50a

Fill Level Plug

705501889

$20.49

50b

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$19.99

50c

Hex. Flange Screw M8 X 1.25 x 35

705502849

$14.99

50d

Not Available As Spare Part - Friction Washer

Unavailable

50f

Nut M27 X 1.5

705401820

$20.99

50g

Retaining Ring OD 119mm

705502840

$20.99

50h

Retaining Ring OD 50.5mm

705502841

$20.99

50j

Not Available As Spare Part - Friction Washer

Unavailable

50k

Shim 2.047po X 2.5po X 0.60po

705502843

$92.99

50m

Not Available As Spare Part - Friction Washer

Unavailable

50n

Ball Bearing

705502845

$103.99

50p

Needle Bearing

705502852

$68.99

50q

Not Available As Spare Part - Friction Washer

Unavailable

50r

Not Available As Spare Part - Friction Washer

Unavailable

50s

Not Available As Spare Part - Friction Washer

Unavailable

50t

Rear Cover Machined

705502508

$232.99

50u

Not Available As Spare Part - Friction Washer

Unavailable

50v

Ring Gear FInal Drive Ass'y

705503168

Unavailable

50w

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

50x

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

50y

Oil Seal, Single Lip 68 X 110 X 8

705502847

$30.49

50z

Not Available As Spare Part - Friction Washer

Unavailable

50aa

O-Ring

219800486

$9.21

60

Hex. Flange Screw M10 X 140

230604056

$12.65

70

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

100

LH Homocinetic Joint | Includes 100 to 100k

705502456

$280.49

101

Circlip Joint | Not shown

705401349

$6.50

110

Hex. Elastic Flange Nut M8

233281416

$1.48

120

Hex. Flange Screw M8 X 45

207684586

$3.17

150

Hex. Flange Screw M10 X 115 Scotch G.

250000999

$6.77
