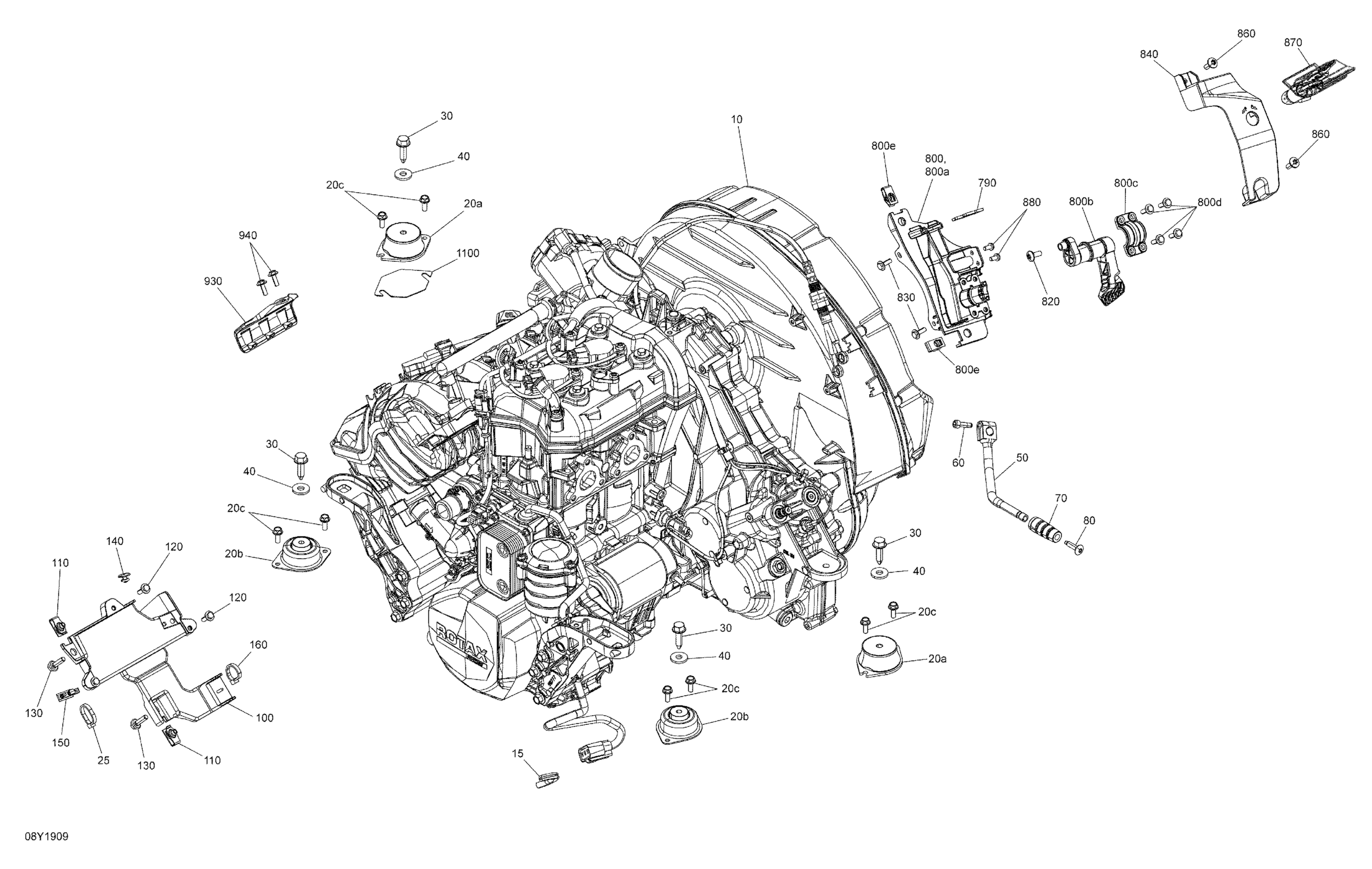

Can-Am RYKER STD 600 ACE, 2019 Engine - Support - 600 ACE Diagram

#

Description
Price

10

Long Block 602

420060270

$3,887.99

15

Trim 1000Mm Long

219704354

$14.30

20a

Rubber Mount

512061145

$10.33

20b

Rubber Mount

512060448

$41.01

20c

Hex. Flange Screw M6 X 16

210261640

$1.74

25

Tie Wrap 368 mm

293750008

$0.85

30

Cone Screw, M8 X 30

250000257

$1.67

40

Yellow, Washer

503183200

$2.91

50

Shift Lever

707002045

$88.99

60

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

70

End Clutch Pedal

707000456

$8.89

80

Torx Screw M6 X 25 | XT Models

250000728

$3.61

100

Support Module

707002214

$10.49

110

Panel Nut M6 X 1.0

250100198

$1.73

120

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

130

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Clip Connector

515178223

$1.63

160

Tie Wrap 368 mm

293750008

$0.85

790

Bracket

707002273

$2.75

800a

Support Parking Brake

707002218

$15.49

800b

Lever Parking Brake

707002138

$19.09

800c

Clamp

707002240

$2.11

800d

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

800e

Panel Nut M6 X 1.0

250100198

$1.73

820

Torx Head Screw M6 X 16

250000717

$1.74

830

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

840

Cover

707002239

$4.23

840

Cover

707002241

$5.18

860

Torx Head Screw M6 X 16

250000717

$1.74

870

Padlock with Key

707000666

$23.10

880

Socket Head Screw M5 X 10

205951046

$2.31

930

Deflector

707002582

$16.49

940

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

1100

Shim 1.0 MM

707002397

$2.43
