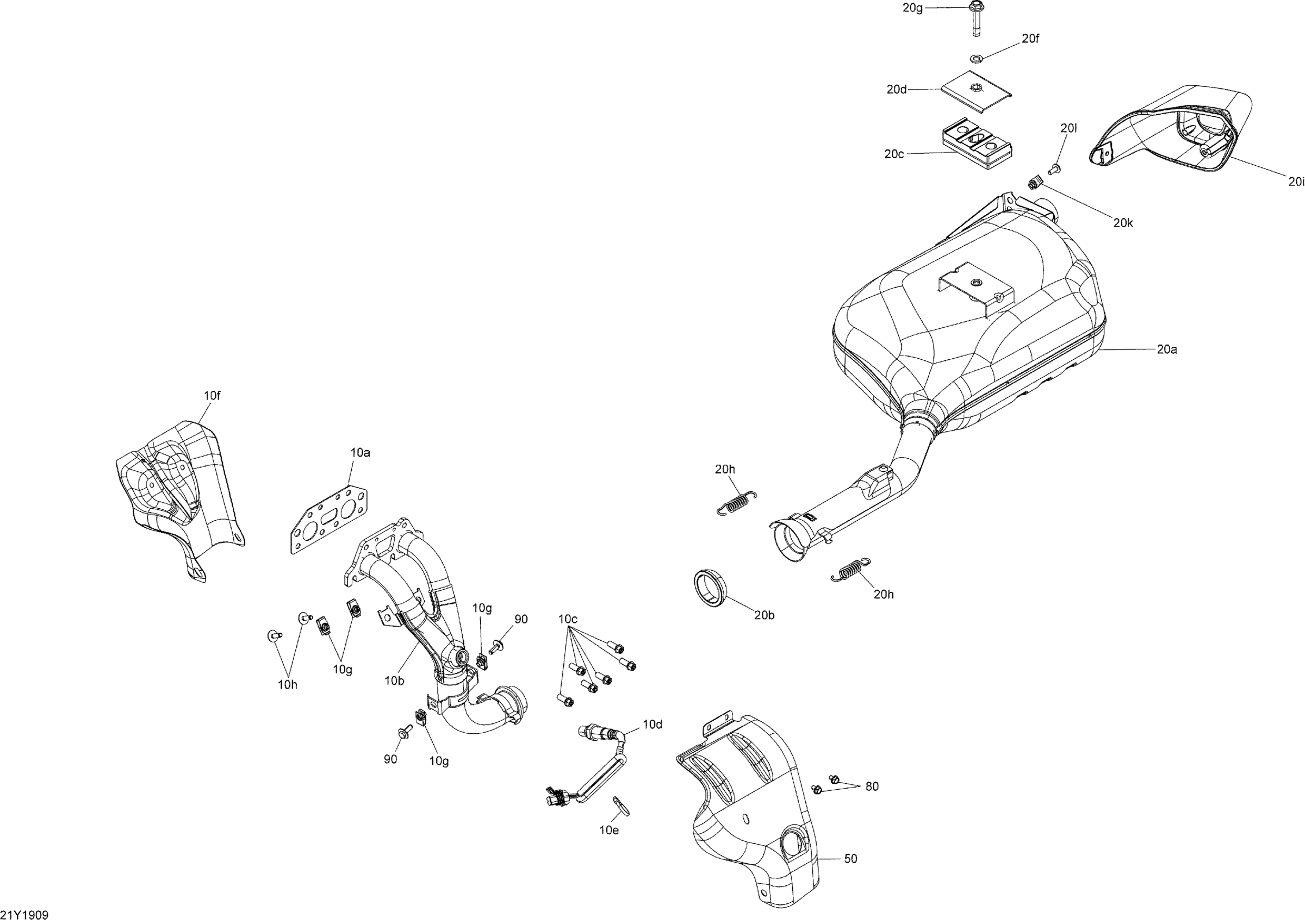

Can-Am RYKER STD 600 ACE, 2019 Engine - Exhaust - 600 ACE Diagram

Description

Price

10a

Exhaust Manifold Gasket

707601939

$7.94

10b

Exhaust Manifold

707601938

$154.99

10c

Hex. Flange Screw M8 X 20

250000973

Unavailable

10d

Oxygen Sensor

707600872

$144.99

10e

Tie Wrap 368 mm

293750008

$1.04

10f

Deflector

707602311

$40.99

10g

Panel Nut M6 X 1.0

250100198

$2.11

10h

Hex Screw M6 X 20

250000965

$2.11

20a

Muffler

707602278

$1,091.99

20b

Exhaust Gasket

707601033

$13.77

20c

Vibration Damper

707603448

$15.28

20d

Plate Fastener

707602413

$17.59

20f

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

20g

Hex. Flange Screw M10 X 50

250001079

$2.19

20h

Spring

514055198

$6.35

20i

Carbon Black, Muffler End Piece

707602404

$23.99

20k

Panel Nut M6 X 1.0

250100198

$2.11

20l

Torx Truss Screw M6 X 16

250000348

$2.11

Deflector

707602313

$40.99

Hex. Forming Screw M6 X 10

210261050

$1.69

Hex Screw M6 X 20

250000965

$2.11
