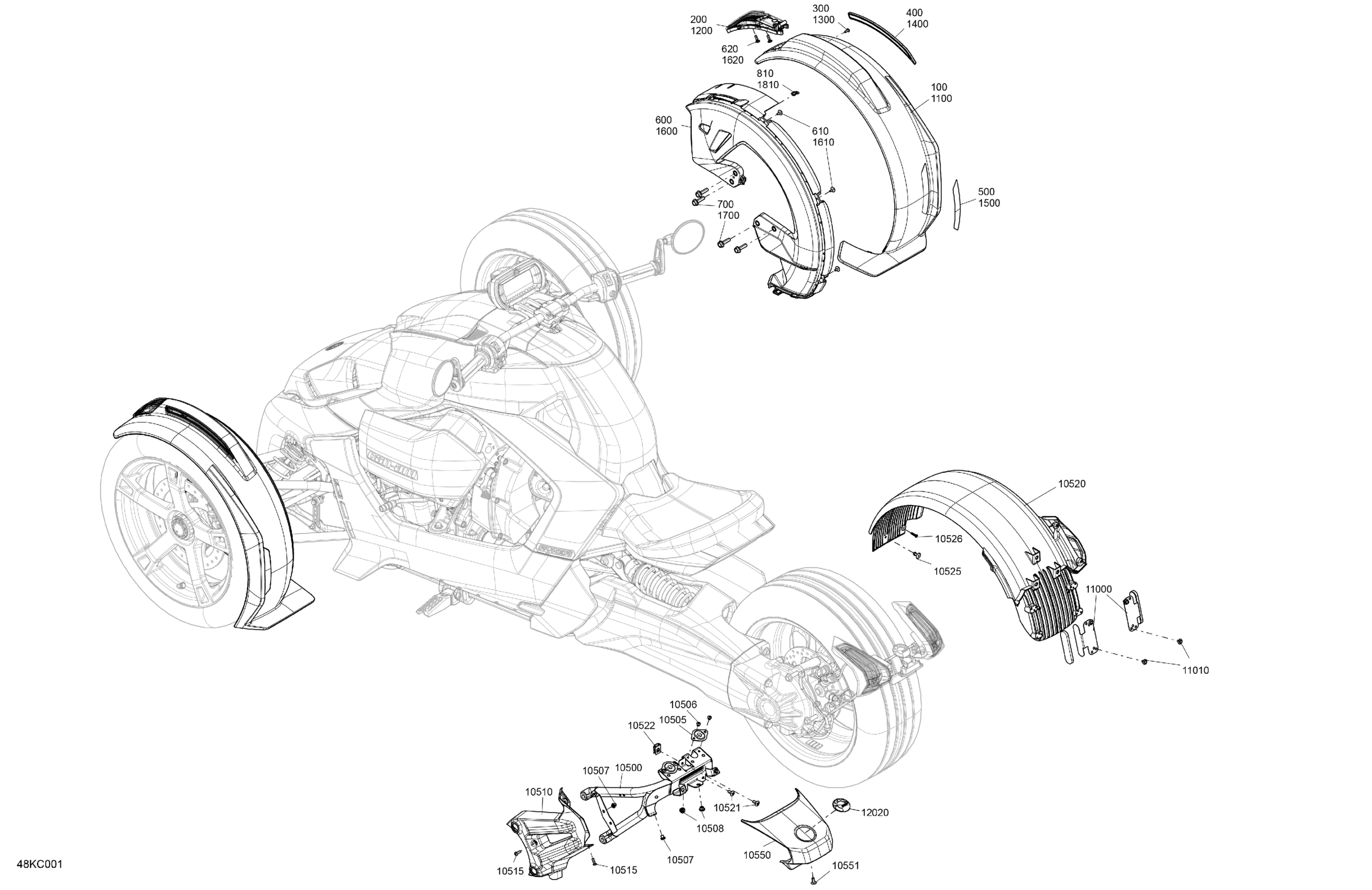

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Body - Fender Kit Diagram

#

Description
Price

10500

Rear Fender Support

705013304

$114.99

10505

Grommet Ass'y

705005055

$13.49

10506

Rivet 3/16"

293150102

$0.70

10507

Insert M5 - 0.8

293450267

$4.59

10508

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10510

LH Fender Trim Support

705013305

$18.49

10515

Torx Truss Screw M5 X 16, T25

250000578

$2.11

10520

Deep Black, Rear Fender

705011162

$204.99

10521

Torx Truss M6X14

250000789

$5.39

10522

Panel Nut M6 X 1.0

250100208

$1.46

10523

Hex. Flange Nut M6

233061414

$1.68

10525

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10526

Screw 8-32

250001097

$2.89

10550

Rear Fender Trim

706003151

$14.99

10551

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

11000

License Plate Support Ass'y

706005433

$37.99

11010

Screw M4 X 16

250000725

$3.49

12020

BRP Logo Emblem 48 MM UV

704909040

$16.49

100

LH Front Fender

705010755

$204.99

200

LH Front Position Light

710007008

$119.99

300

Torx Truss PT K40 x 12

250001131

$2.11

400

Yellow, LH Reflector

705012404

$18.49

500

Rear Reflector, Front Fender

705012406

$4.59

600

LH Fender Support

705011696

$114.99

610

Plastite Screw M4 X 10

250000805

$2.11

620

Torx Screw K50 X 16

250000720

$1.69

700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

810

Clip Bracket Connector (edge)

409210100

$2.09

1100

RH Front Fender

705010756

$139.99

1200

RH Front Position Light

710007009

$119.99

1300

Torx Truss PT K40 x 12

250001131

$2.11

1400

Yellow, RH Reflector

705012405

$18.49

1500

Rear Reflector, Front Fender

705012406

$4.59

1600

RH Front Fender Support

705017327

$114.99

1610

Plastite Screw M4 X 10

250000805

$2.11

1620

Torx Screw K50 X 16

250000720

$1.69

1700

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1810

Clip Bracket Connector (edge)

409210100

$2.09
