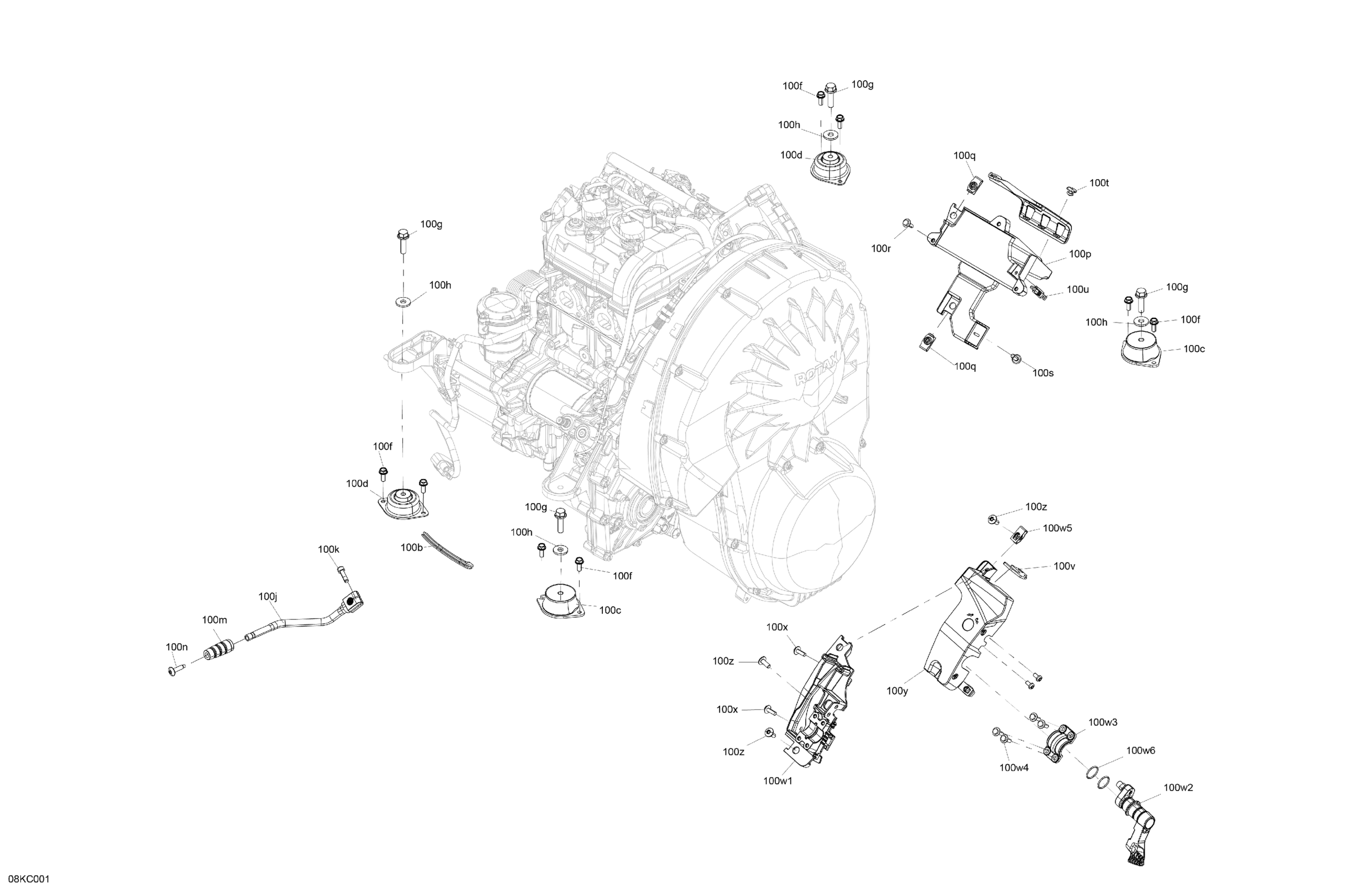

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Engine - System Diagram

Description

Price

100b

Trim 1000Mm Long

219704354

$15.99

100c

Vibration Damper

512061508

$58.49

100d

Vibration Damper

512061507

$43.49

100f

Hex. Flange Screw M6 X 16

210261650

$1.67

100g

Hex. Flange Screw S.GRIP M8 X 30

207583054

$2.19

100h

Flat Washer

279000336

$11.57

100j

Shift Lever

707002045

$88.99

100k

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

100m

End Clutch Pedal

707000456

$8.89

100n

Torx Screw M6 X 25 | XT Models

250000728

$4.44

100p

Support Module

707002214

$10.49

100q

Panel Nut M6 X 1.0

250100198

$2.11

100r

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

100s

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

100t

Pop Rivet 3/16"

390406500

$0.88

100u

Clip Connector

515178223

$2.09

100v

Bracket

707002273

$2.75

100w1

Support Parking Brake

707002218

$15.49

100w2

Parking Brake Lever | Includes 100w2 to 100w2a

707002827

$19.09

100w3

Clamp

707002240

$2.11

100w4

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

100w5

Panel Nut M6 X 1.0

250100198

$2.11

100w6

O-Ring

293300079

$6.66

100x

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

100y

Cover

707002239

$4.23

100z

Torx Head Screw M6 X 16

250000717

$2.11
