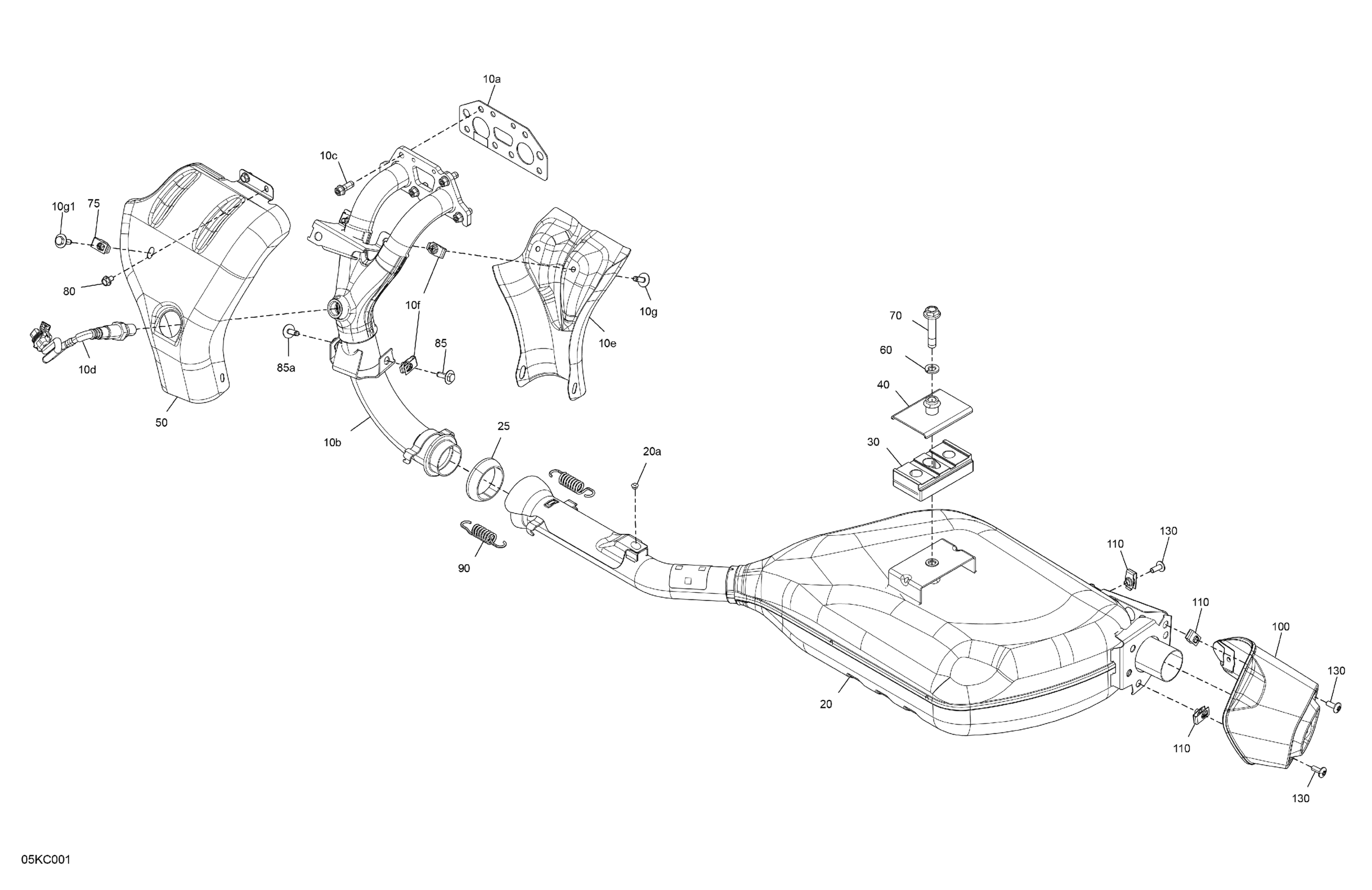

Can-Am RYKER 600 ACE, North America (F1PA), 2023 Engine - Exhaust Diagram

Description

Price

10a

Exhaust Manifold Gasket

707601939

$7.94

10b

Exhaust Manifold

707601938

$154.99

10c

Hex. Flange Screw M8 X 20

250001089

$0.76

10d

Oxygen Sensor

707600872

$144.99

10e

Deflector

707602311

$40.99

10f

Panel Nut M6 X 1.0

250100198

$2.11

10g

Hex Screw M6 X 20

250000965

$2.11

10g1

Hex Screw M6 X 20

250000965

$2.11

Exhaust Muffler

707603345

$1,070.49

20a

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Exhaust Gasket

707601033

$13.77

Vibration Damper

707603448

$15.28

Plate Fastener

707602413

$17.59

Deflector

707602313

$40.99

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Flange Screw M10 X 50

250001079

$2.19

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Forming Screw M6 X 10

210261050

$1.69

Hex Screw M6 X 20

250000965

$2.11

85a

Hex Screw M6 X 20

250000965

$2.11

Spring

514055198

$6.35

100

Carbon Black, Muffler End Piece

707602404

$23.99

110

Panel Nut M6 X 1.0

250100198

$2.11

130

Torx Truss Screw M6 X 16

250000348

$2.11
