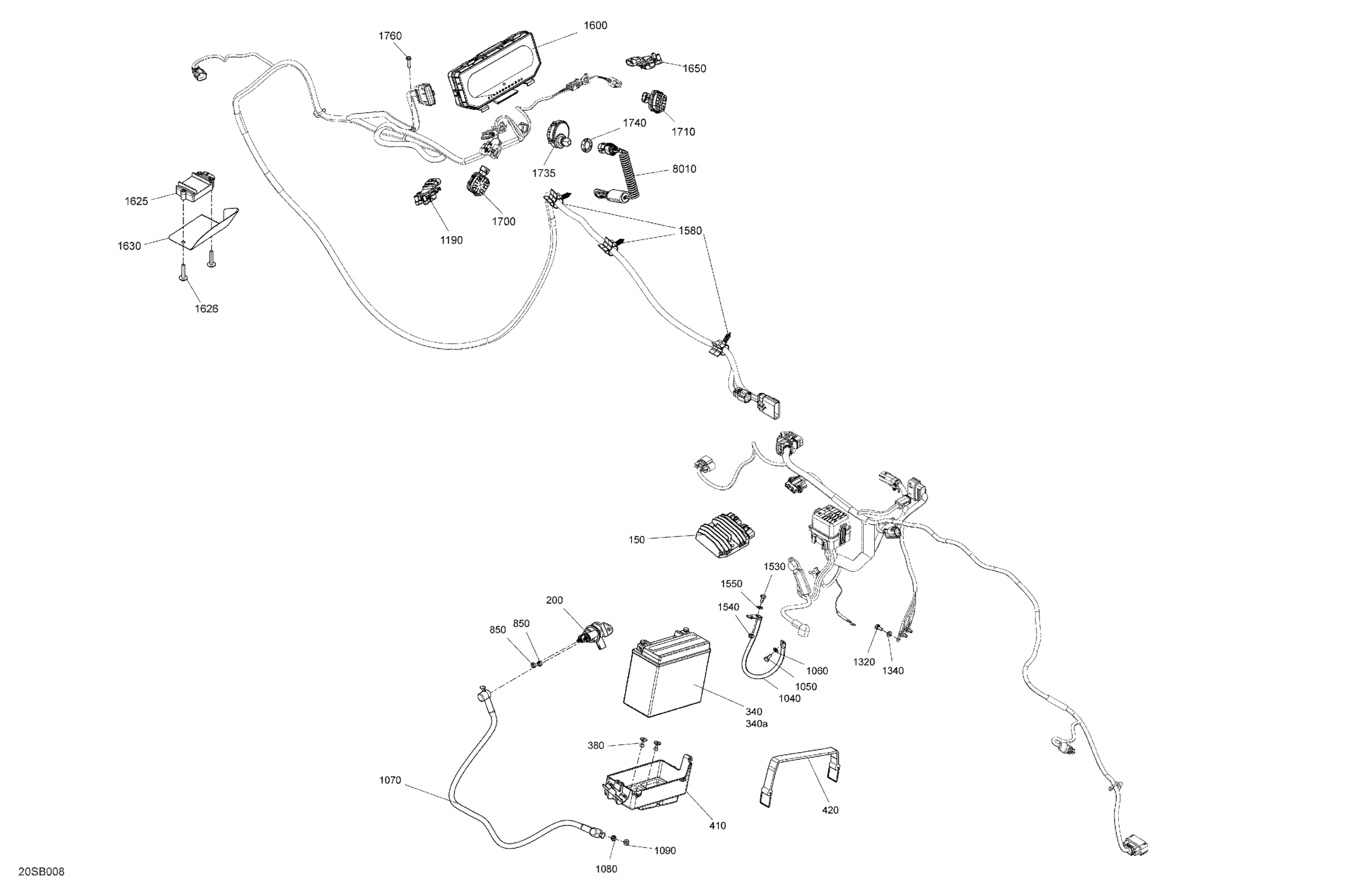

Sea-doo RXT X 300 - 2022 Electric - System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1600

Full Size Multifunction Color Gauge

278004097

$925.57

1625

External GPS Module

278003899

$85.77

1626

Hexagonal Cap Screw M6 X35

250000399

$3.61

1630

Bent Deflector

278003976

$9.73

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1735

Terminal_Dess One-Wire Open

515179239

Unavailable

1740

Safety Nut (DESS Switch)

278002963

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
