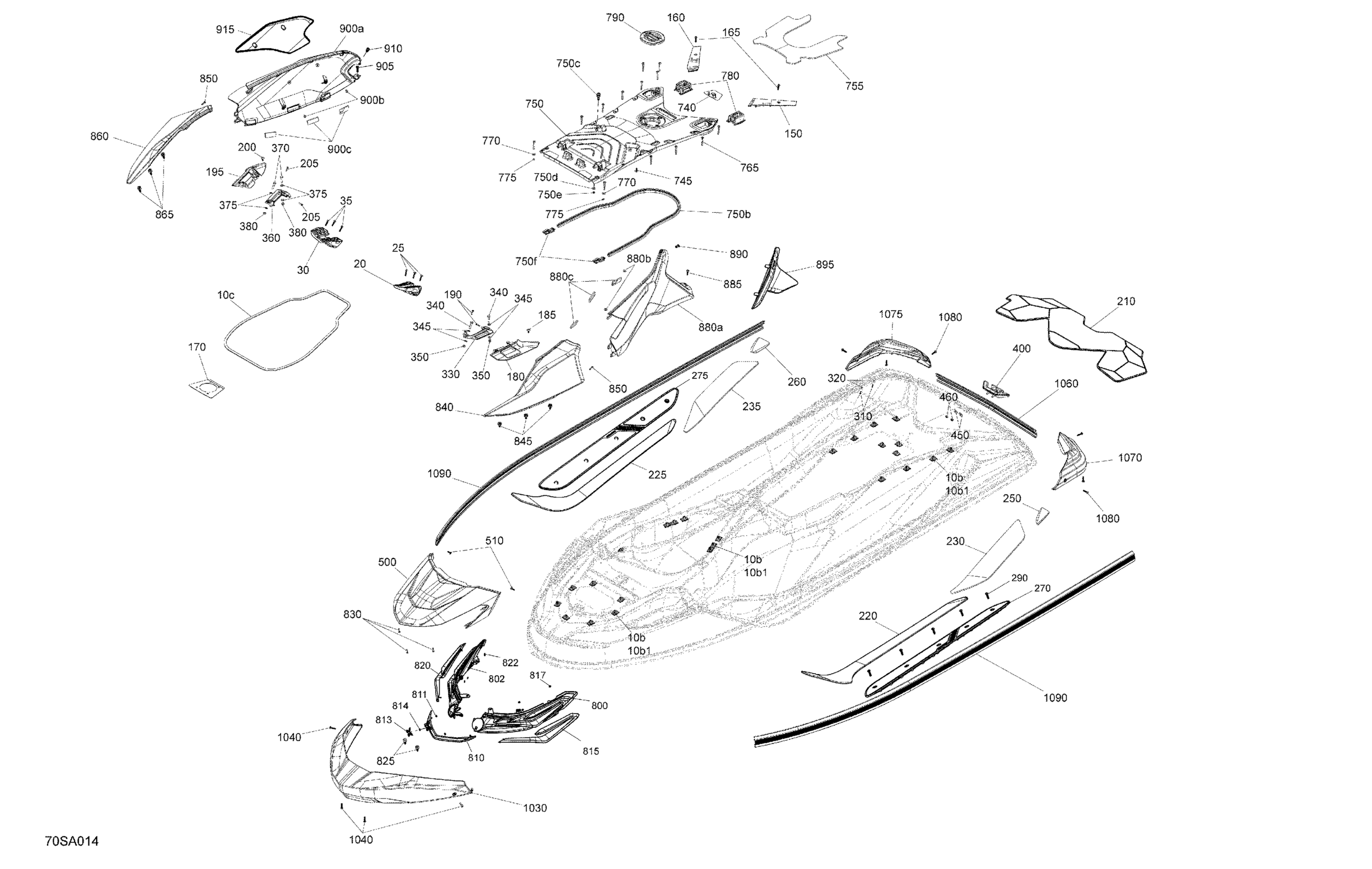

Sea-doo RXT X 300 - 2021 Body - System Diagram

#

Description
Price

10b

Nut Housing M6 Ass'y | Includes 10b to 10b1a

291006093

$1.87

10b1

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

10b1a

Elastic Stop Nut M6, Brass

232561200

$3.51

10c

Gasket

293250401

$8.80

20

LH Support

291004714

$7.15

25

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

30

RH Support

291004715

$7.87

35

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

150

LH Shim

291005176

$13.52

160

RH Shim

291005177

$11.78

165

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

170

Gasket

293250451

$19.47

180

LH Shell Cleat

291004661

$7.15

185

Black, Dart

293730011

$0.79

190

Hex. Screw 10-14 X 7/8”

211000023

$2.91

195

RH Shell Cleat

291004719

$7.15

200

Black, Dart

293730011

$0.79

205

Hex. Screw 10-14 X 7/8”

211000023

$2.91

210

Rear Plat-Form Carpet

291005077

$115.67

210

Rear Plat-Form Carpet

291005649

$115.67

220

LH Front Anti Slip Mat

291005349

$27.27

225

RH Front Anti Slip Mat

291005348

$27.27

230

LH Rear Anti Slip Mat

291005353

$13.62

235

RH Rear Anti Slip Mat

291005352

$13.62

250

LH Anti-Skid Pad

291004516

$4.55

260

RH Anti-Skid Pad

291004517

$4.55

270

Deep Black, LH Footrest Ass'y

291004470

$59.77

275

Deep Black, RH Footrest Ass'y

291004469

$59.77

290

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

295

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

310

Rivet 1/8"

293150016

$0.29

320

Black, Snap Cap

293000014

$0.85

330

LH Cleat

291004559

$6.37

340

Hex. Screw M8 X 35

207083560

$1.40

345

Stainless, Flat Washer 8 mm

234081600

$0.46

350

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

RH Cleat

291004720

$6.37

370

Hex. Screw M8 X 35

207083560

$1.40

375

Stainless, Flat Washer 8 mm

234081600

$0.46

380

Hex. Elastic Nut M8 Brass

232581200

$1.29

400

Cleat

291004597

$19.47

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

500

Deep Black, Hood

291005579

$76.02

510

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

740

Hose Protector

291004941

$4.22

745

Black, Dart

293730011

$0.79

750

Access Cover Ass'y | Includes 750 to 750f

291005189

$172.22

750b

Was 293200062 Seal

219704366

$61.72

750c

Stud - Call your local BRP dealership This part replaces 291005183.

291005183

Unavailable

750d

Flat Washer M6, Stainless

234062600

$0.64

750e

Elastic Stop Nut M6, Brass

232561200

$3.51

750f

Seal

291004717

$9.04

755

Black/Grey, Mat Cover

291004633

$51.97

765

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

770

Flat Washer M6, Stainless

234062600

$0.64

775

Elastic Stop Nut M6, Brass

232561200

$3.51

780

Linq Bases Kit

295100858

$21.42

790

Access Cap Ass'y

291004481

$7.15

800

LH Front Hood Grille Ass'y

291005911

$23.37

802

RH Front Hood Grille Ass'y

291005913

$23.37

810

Black, Trim Front

291004550

$25.34

811

Push Nut | Not shown

211100002

$0.83

813

Emblem X

291004770

$7.31

814

Push Nut | Not shown

211100002

$0.83

815

Millenium Yellow, LH Trim | Model Millenium Yellow

291005543

$52.62

815

Manta Green, LH Trim

291005545

$25.34

817

Push Nut | Not shown

211100002

$0.83

820

Millenium Yellow, RH Trim | Model Millenium Yellow

291005544

$52.62

820

Manta Green, RH Trim

291006201

Unavailable

822

Push Nut | Not shown

211100002

$0.83

825

Dard

293730071

$0.90

830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

840

Iceland Grey, LH Front Body Panel

291004676

$64.32

845

Dard

293730071

$0.90

850

Hex. Screw 10-14 X 7/8”

211000023

$2.91

860

Iceland Grey, RH Front Body Panel

291004775

$64.32

865

Dard

293730071

$0.90

880a

Iceland Grey, LH Central Body Panel Drilled

291004781

$148.48

880a1

Iceland Grey, LH Central Body Panel

291004556

$129.32

880b

Rubber Bumper

293830005

$5.33

880c

Stopper

278003860

$0.61

885

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

890

Tuflok Plastic Rivet

293150230

$1.21

895

Millenium Yellow, LH Knee Pad Ass'y | Model Millenium Yellow

291005488

$103.70

895

Purple Potion, LH Knee Pad Ass'y

291005487

$103.70

900a

Iceland Gray, RH Central Body Panel

291004784

$129.32

900a1

Iceland Grey, RH Central Body Panel

291004558

$129.32

900b

Rubber Bumper

293830005

$5.33

900c

Stopper

278003860

$0.61

905

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

910

Tuflok Plastic Rivet

293150230

$1.21

915

Millenium Yellow, RH Knee Pad Ass'y | Model Millenium Yellow

291005489

$103.70

915

Purple Potion, RH Knee Pad Ass'y

291005486

$103.70

1030

Front Bumper

291004452

$62.37

1040

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1060

Bumper 2775±25mm

291004468

$113.07

1070

LH Rear Bumper

291004465

$24.02

1075

RH Rear Bumper

291004466

$24.02

1080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1090

Bumper 2775±25mm

291004468

$113.07
