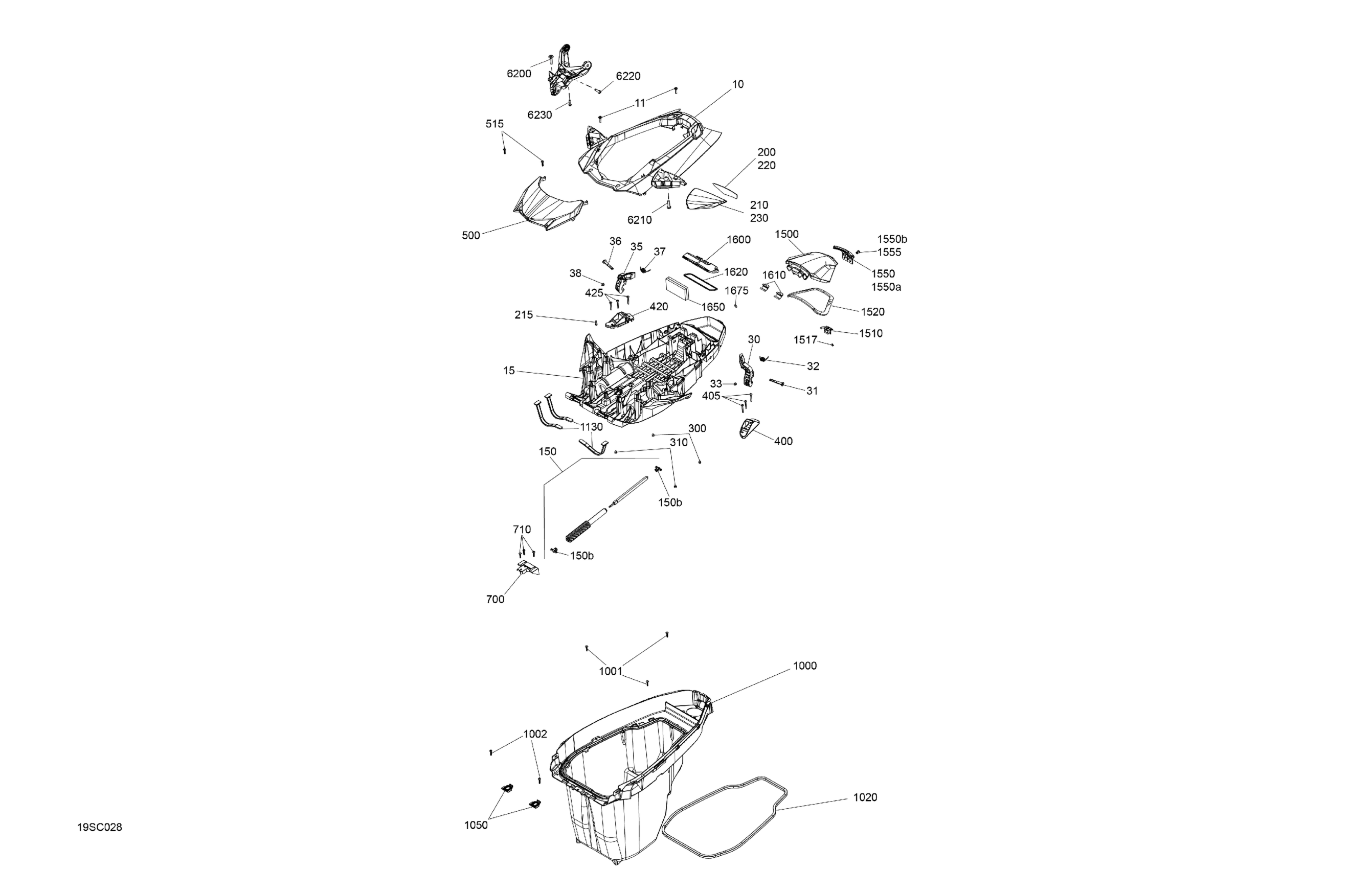

Sea-doo RXT X 300, 2023 Body - Front Cover Diagram

#

Description
Price

10

Outer Skin

269502394

$158.57

11

Hexagonal Cap Screw M6 X35

250000399

$3.61

15

Inner Skin

269502555

$131.92

30

LH Latch

269502267

$24.02

31

Pin

269502536

$14.90

32

Latch Spring

269502268

$20.77

33

Rubber Bumper

293830005

$5.33

35

RH Latch

269502299

$24.02

36

Pin

269502536

$14.90

37

Latch Spring

269502268

$20.77

38

Rubber Bumper

293830005

$5.33

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$78.62

150b

Shock Absorber End Fitting

269501984

$8.88

200

RH Mirror Glass

269502276

$72.12

210

Deep Black, RH Mirror Cover

269502428

$43.52

215

Hex. Screw 10-14 X 7/8”

211000023

$2.91

220

LH Mirror Glass

269502274

$72.12

230

Deep Black, LH Mirror Cover

269502427

$43.52

300

Rubber Bumper

293830005

$5.33

310

Rubber Bumper

293830005

$5.33

400

LH Latch Base

269502385

$13.62

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

420

RH Latch Base

269502386

$13.62

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500

Deep Black, Upper Hood

269502446

$94.87

515

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

700

Shock Base

269502282

$20.12

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1000

Bin Compartment

264000144

$95.52

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1020

Gasket

293250478

$10.34

1050

Adjustment Hook

269502325

$7.15

1130

Strap

269502493

$11.53

1500

Glove Box Door

264000132

$51.32

1510

Glove Box Latch

264000133

$15.57

1517

Screw K40 X 10

250001119

$1.64

1520

Cover Gasket

293250717

$23.37

1550

Glove Box Trim

269502538

$14.92

1550a

Glove Box Trim

269502538

$14.92

1550b

Tuflok Plastic Rivet

293150230

$1.21

1555

Tuflok Plastic Rivet

293150230

$1.21

1600

Box Cover

264000158

$10.21

1610

Clip

269501718

$12.97

1620

Gasket

293250591

$12.60

1650

Sealed Compartment Foam

264000135

$9.22

1675

Vent Membrane

264000137

$9.04

6200

Hexagonal Cap Screw M6 X35

250000399

$3.61

6210

Hex. Screw 10-14 X 7/8”

211000023

$2.91

6220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

6230

Hex. Screw 10-14 X 7/8”

211000023

$2.91
