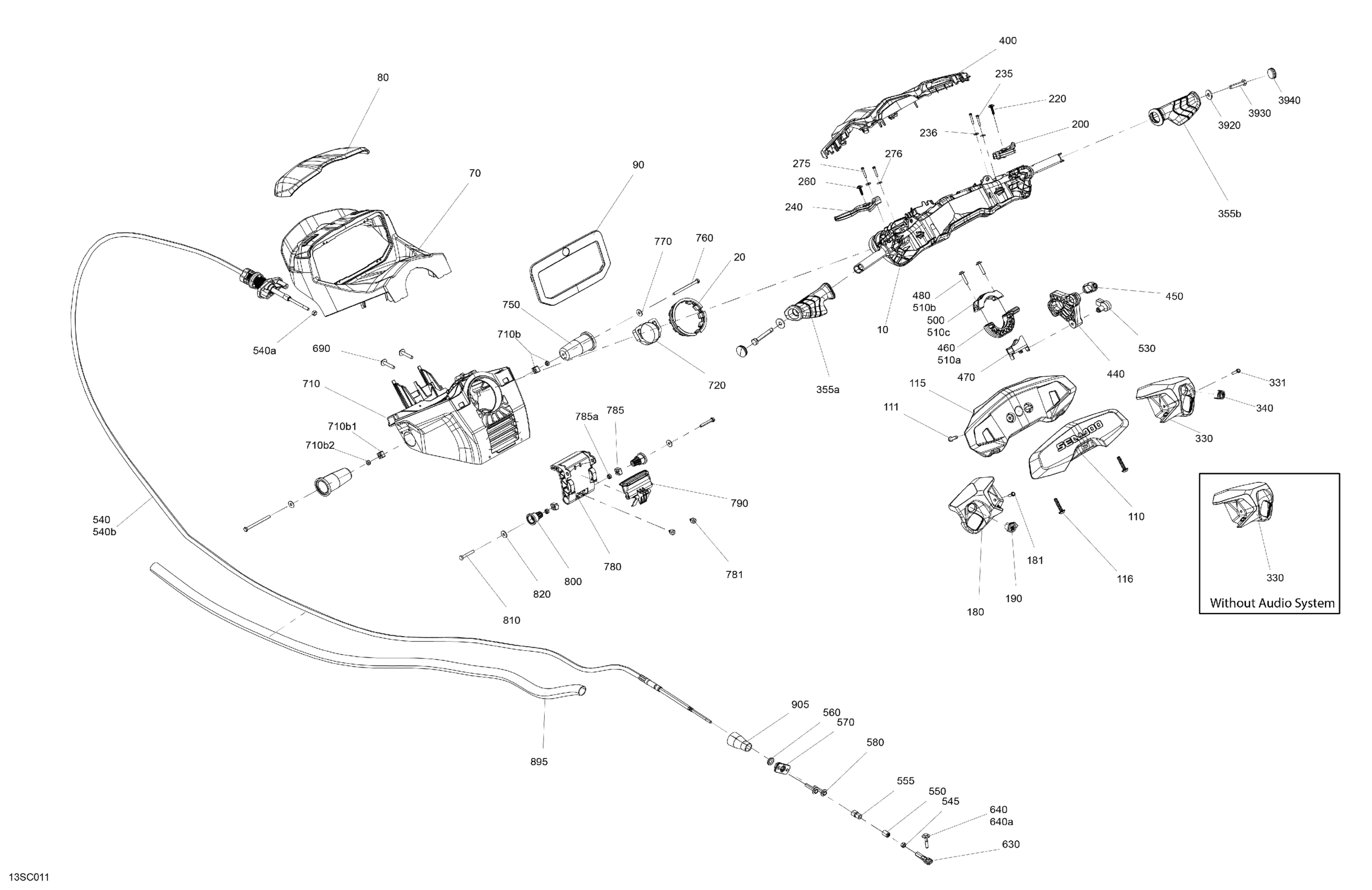

Sea-doo RXT X 300, 2023 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002134

$209.99

20

Wear Ring

277001874

$12.17

70

Gauge Support

277002198

$45.99

80

Cluster Cover

277002160

$28.99

90

Speed Gauge Trim

705015381

$22.49

110

Deep Black, Steering Pad

277002025

$91.99

111

Hex. Screw 10-14 X 7/8”

211000023

$3.59

115

Steering Pad Support

277002317

$20.99

116

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002234

$17.99

330

RH Cover

277002235

$16.49

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

340

Button Switch

277002320

$9.00

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

400

Steering Cover

277001985

$68.99

440

Steering Arm Kit

295501183

$10.99

450

Steering Arm Kit

295501183

$10.99

460

Steering Arm Kit

295501183

$10.99

470

Spacer

277001654

$15.99

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

500

C Clamp

277002085

$9.19

510a

Steering Arm Kit

295501183

$10.99

510b

Hexagonal Cap Screw M6 X35

250000399

$4.44

510c

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

540

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710

Steering Column Support Ass'y | Includes 710 to 710b2

277002158

$114.99

710b

M6 Nut Housing | Includes 550f to 550f2

269502497

$6.53

710b1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

710b2

Elastic Stop Nut M6, Brass

232561200

$4.23

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

785

M6 Nut Housing | Includes 550f to 550f2

269502497

$6.53

785a

Elastic Stop Nut M6, Brass

232561200

$4.23

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

905

Rope Guide

277002150

$0.93

3920

Flat Washer M6, Stainless

234062600

$0.77

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

3940

Black, Cap

277000203

$9.39
