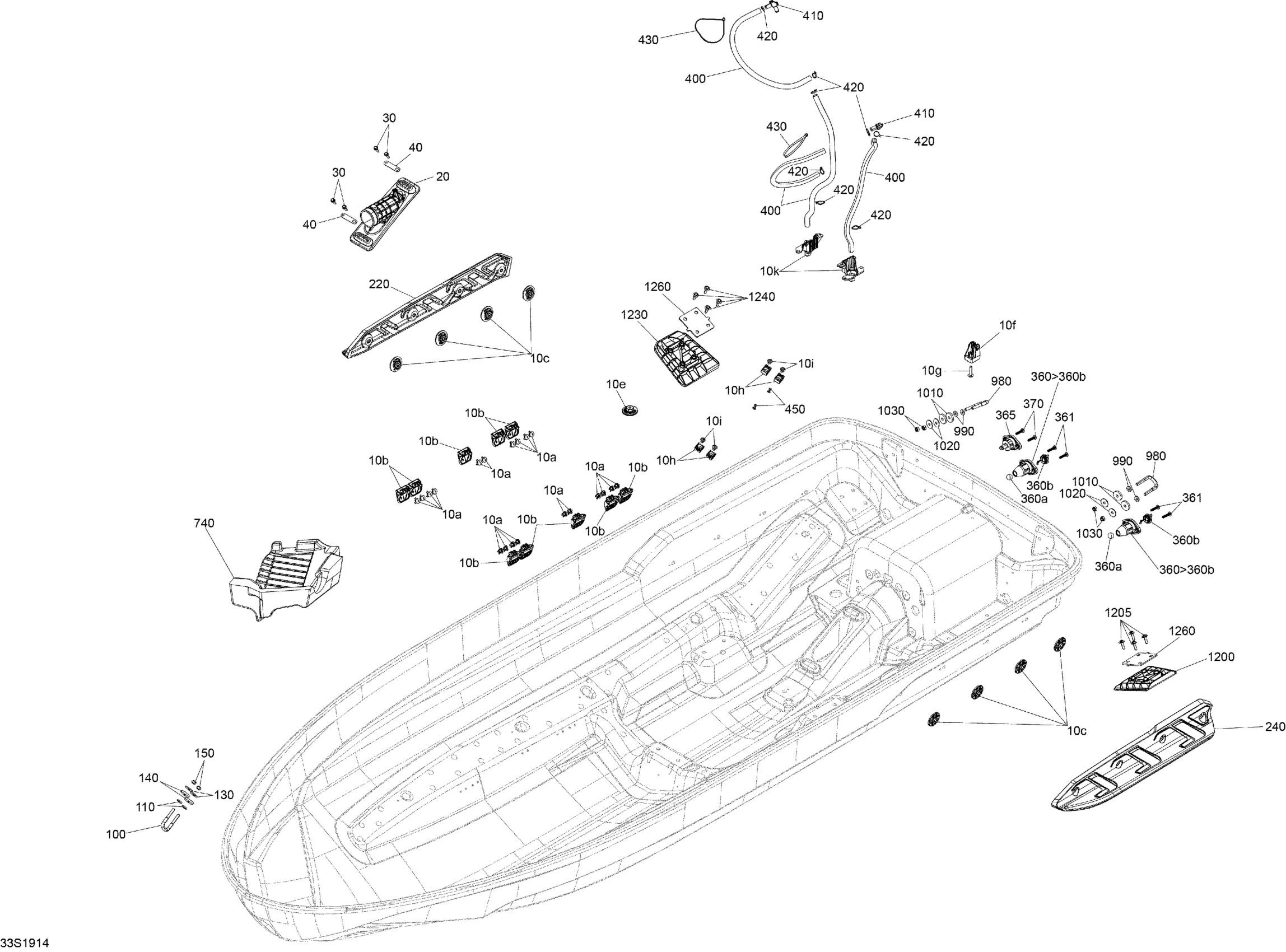

Sea-doo RXT 230, 2019 Hull Diagram

#

Description
Price

10a

Rivet | Model-T3

293150067

$2.29

10b

Strap Retaining

270000933

$5.47

10c

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10e

Insert M8

293450371

$10.69

10f

Strap Anchor

270000988

$8.46

10g

Hexagonal Cap Screw M6 X35

250000399

$3.61

10h

Strap Anchor

270000854

$5.30

10i

Pop Rivet 3/16

293150186

$1.63

10k

Pump Support

269800956

$2.65

20

Through Hull Fitting

293450362

$28.57

30

Hex. Flange Screw M6.81 x 20

243162060

$3.30

40

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Rubber Washer

293830037

$2.75

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292001953

$53.27

240

LH Sponson

292001954

$63.67

360>360b

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

360a

Floating Ball

293830080

$5.56

360b

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

361

Screw Torx M6.81 X 30

250001007

$1.61

365

Drain Neck Ass'y

292002153

$11.54

370

Screw Torx M6.81 X 30

250001007

$1.61

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

450

Avdel Rivet 3/16"

293150037

$0.47

510

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

740

Cooler Float

292002011

$36.89

980

U-Clamp

292000933

$32.47

990

Flat Washer M8.5 x 18

293050001

$1.29

1010

Rubber Washer

293830037

$2.75

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1200

LH Trim Tab

292002102

$14.27

1205

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1230

RH Trim Tab

292002103

$14.27

1240

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1260

Gasket

277002171

$3.48
