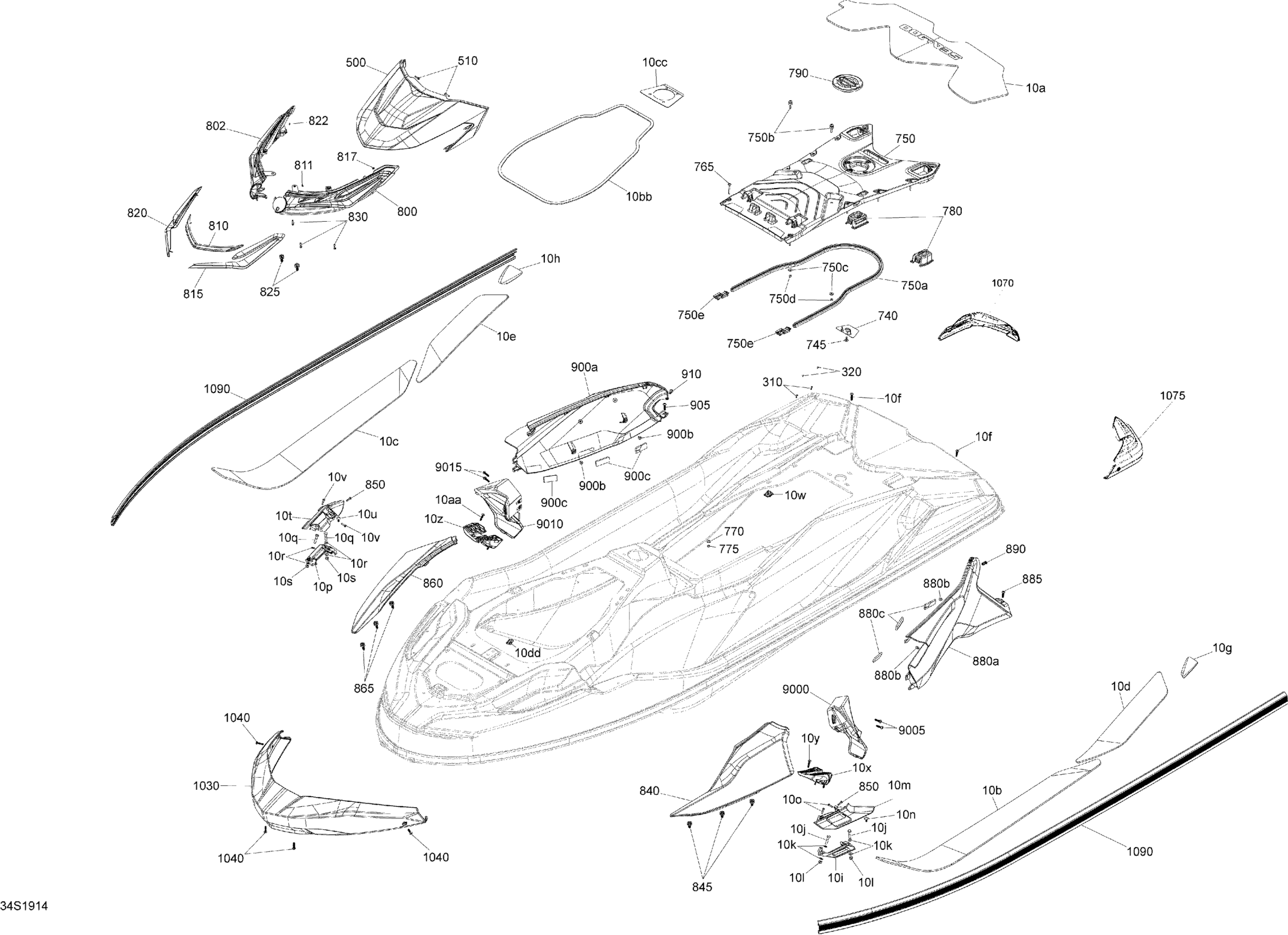

Sea-doo 001 - RXT 230, 2019 09- Body Diagram
#
10a
Rear Plat-Form Carpet
291005076
$104.99
10b
Anti Slip Mat FRT LH
291005044
$41.49
10c
Anti Slip Mat FRT RH
291005045
$41.49
10d
LH Rear Carpet
291004514
$17.20
10e
RH Rear Carpet
291004515
$17.20
10f
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
10g
LH Anti-Skid Pad
291004516
$5.61
10h
RH Anti-Skid Pad
291004517
$5.61
10i
LH Cleat
291004559
$9.79
10j
Hex. Screw M8 X 35
207083560
$1.47
10k
Stainless, Flat Washer 8 mm
234081600
$0.55
10l
Hex. Elastic Nut M8 Brass
232581200
$2.22
10m
LH Shell Cleat
291004661
$10.99
10n
Black, Dart
293730011
$0.99
10o
Hex. Screw 10-14 X 7/8”
211000023
$3.59
10p
RH Cleat
291004720
$9.79
10q
Hex. Screw M8 X 35
207083560
$1.47
10r
Stainless, Flat Washer 8 mm
234081600
$0.55
10s
Hex. Elastic Nut M8 Brass
232581200
$2.22
10t
RH Shell Cleat
291004719
$10.99
10u
Black, Dart
293730011
$0.99
10v
Hex. Screw 10-14 X 7/8”
211000023
$3.59
10w
Nut Housing M6 Ass'y | Includes 10b to 10b1a
291006093
$2.39
10x
LH Support
291004714
$10.99
10y
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
10z
RH Support
291004715
$12.49
10aa
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
10bb
Gasket
293250401
$12.11
10cc
Gasket
293250451
$23.99
10dd
Tie-Rap Mount
293750025
$1.25
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
500
Deep Black, Hood
291005579
$97.99
510
Hex. Screw 10-14 X 7/8”
211000023
$3.59
740
Hose Protector
291004941
$4.69
745
Black, Dart
293730011
$0.99
750
Access Cover Ass'y | Includes 750 to 750f
291005189
$234.99
750a
Was 293200062 Seal
219704366
$76.49
750b
STUD - Call your local BRP dealership This part replaces 291004611.
291004611
$25.99
750c
Flat Washer M6, Stainless
234062600
$0.77
750d
Elastic Stop Nut M6, Brass
232561200
$4.23
750e
Seal
291004717
$12.99
765
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
770
Flat Washer M6, Stainless
234062600
$0.77
775
Elastic Stop Nut M6, Brass
232561200
$4.23
780
Cargo Base
291005157
Unavailable
790
Access Cap Ass'y
291004481
$10.99
800
LH Front Hood Grille Ass'y
291005911
$29.99
802
RH Front Hood Grille Ass'y
291005913
$29.99
810
Gulfstream Blue, Front Trim
291004822
$13.99
811
Push Nut | Not shown
211100002
$2.19
815
Deep Black, LH Trim | Model Jungle Green
291004834
$28.99
817
Push Nut | Not shown
211100002
$2.19
820
Deep Black, RH Trim | Model Jungle Green
291004835
$28.99
822
Push Nut | Not shown
211100002
$2.19
825
Dard
293730071
$1.15
830
Hex. Screw 10-14 X 7/8”
211000023
$3.59
840
Body Panel FL B-352
291004777
$75.99
845
Dard
293730071
$1.15
850
Hex. Screw 10-14 X 7/8”
211000023
$3.59
860
Body Panel FR B-352
291004778
$75.99
865
Dard
293730071
$1.15
880a
Body Panel CTRL L B-352
291004779
$149.99
880b
Rubber Bumper
293830005
$8.09
880c
Stopper
278003618
$0.74
885
Screw Torx M6.81 X 30
250001007
$2.54
890
Tuflok Plastic Rivet
293150230
$1.47
900a
BODY PANEL CTRL R B-352 - Call your local BRP dealership
291004783
$139.99
900b
Rubber Bumper
293830005
$8.09
900c
Stopper
278003618
$0.74
905
Screw Torx M6.81 X 30
250001007
$2.54
910
Tuflok Plastic Rivet
293150230
$1.47
1030
Front Bumper
291004452
$77.49
1040
Screw Torx M6.81 X 30
250001007
$2.54
1070
LH Rear Bumper
291004465
$30.49
1075
RH Rear Bumper
291004466
$30.49
1080
Hex. Flange Screw M12 X 70
250000858
$3.80
1090
Bumper 2775±25mm
291004468
$134.99
9000
LH Side Grille
291004455
$11.49
9005
Screw Torx M6.81 X 30
250001007
$2.54
9010
RH Side Grille
291004456
$11.49
9015
Screw Torx M6.81 X 30
250001007
$2.54
