Description

Price

750>750a

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$66.39

750a

Was 293250388 Seal

219704383

$25.34

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1100

Engine Support Ass'y

270001096

$88.78

1110

Cone Washer

250200018

$5.33

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1150

Shim 1.3 mm

270000762

$10.37

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1600

Engine Support Ass'y

270001081

$96.99

1610

Cone Washer

250200018

$5.33

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1650

Shim 1.3 mm

270000762

$10.37

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.70

1850

Engine Support Ass'y

270001081

$96.99

1860

Cone Washer

250200018

$5.33

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

1900

Shim 1.3 mm

270000762

$10.37

2000a

Airbox Base

273000342

$44.00

2000b

INTAKE SILENCER COVER - Call your local BRP dealership

273000381

Unavailable

2000c

Intake Hose

273000359

$44.00

2000d

Hose Connector

273000375

$65.64

2000e

Air Silencer Hose

273000290

$20.12

2000f

Air Silencer Notice Decal

219903177

Unavailable

2000g

Rubber Stopper

708000759

$4.15

2000h

Flange Torx Screw K40 X 16

250000287

$2.00

2300

Formed Hose

270000950

$9.81

2305

Breather Valve

273000234

$12.21

2310

Gear Clamp

293650284

$4.15

2315

Gear Clamp

293650284

$4.15

2350

Central Intake Duct

273000376

$46.24

2370

POLYURETHANE HOSE 1000MM LONG - Call your local BRP dealership

219704392

Unavailable

2380

Tie Wrap 368 mm

293750008

$0.97

2400

Tridon Clamp

293650179

$10.12

2410

Tridon Clamp

293650179

$10.12

2420

Intake Hose

273000380

$28.33

2430

Tridon Clamp

293650179

$10.12

3000>3000a

Intercooler

276000406

$482.06

3000a

Anode Zinc

271001942

$15.64

3010

Formed Hose

273000418

$74.60

3020

Tridon Gear Clamp

293650244

$8.28

3025

Tridon Clamp

293650179

$10.12

3030

Oultet Hose

273000419

$85.79

3040

Tridon Gear Clamp

293650244

$8.28

3045

Tridon Clamp

293650179

$10.12

3070

Fuel Tank Strap

293850094

$20.12

3075

Fuel Tank Strap

293850095

$16.39

3500

Tie Wrap 94 mm | 4X4

293750001

$0.96

3530

Tie-Rap 180 mm

414115200

$0.10

3540

Tie-Rap 180 mm

414115200

$0.10

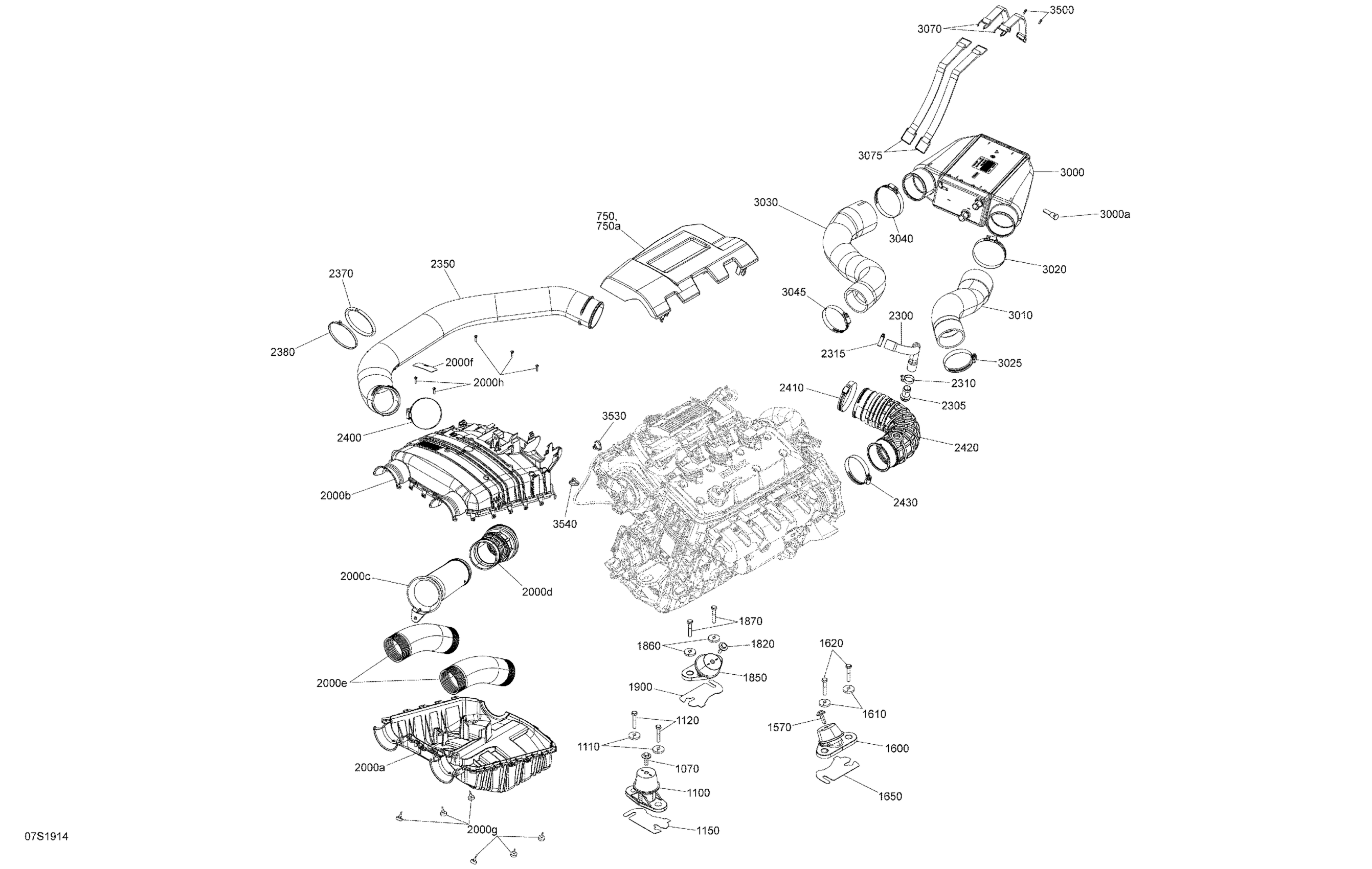

Sea-doo RXT 230, 2019 Engine Diagram
