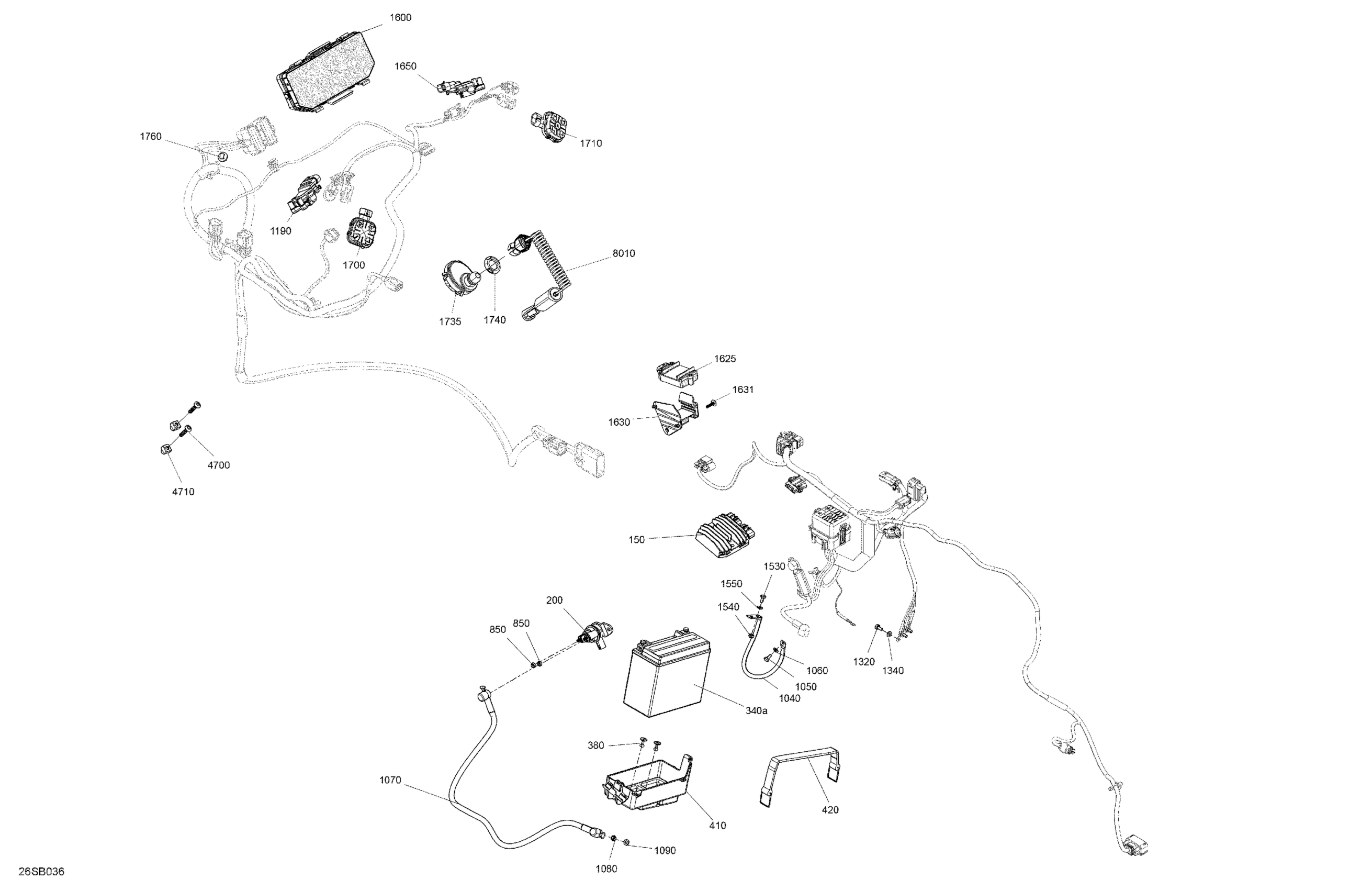

Sea-doo 001 - RXP X 300 - North America, 2022 08- Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Starter Relay

278003012

$42.49

Battery Bolt Kit

250000282

$7.29

Pop Rivet 3/16"

293150123

$4.29

Battery Support

278003473

$28.99

Fuel Tank Strap

293850095

$19.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Ground Battery Cable

278003451

$39.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Starter Cable

278003369

$39.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

LH Throttle Sensor

278002284

$119.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

Full Size Multifunction Mono Gauge

278003432

$819.99

Full Size Multifunction Color Gauge

278004097

$1.00

External GPS Module

278003899

$189.99

GPS Support

278003957

$14.49

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

Throttle Position Sensor

278002283

$119.99

LH Switch Keypad

278003726

$126.99

RH Switch Keypad

278003474

$126.99

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Mount Dart

710008294

$1.04

Safety Lanyard Ass'y, RFID

278003400

$84.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Insert

291003793

$3.56
