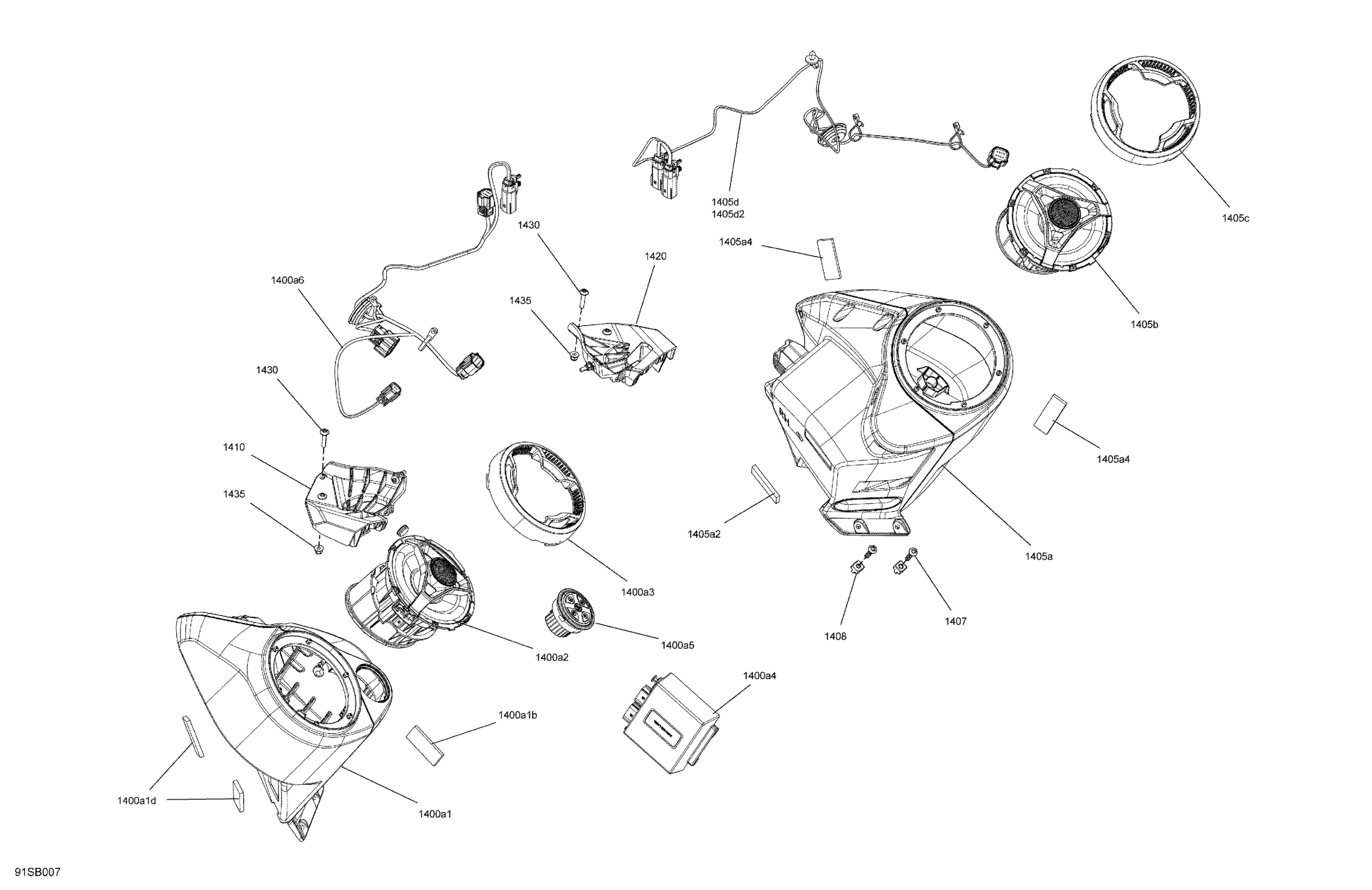

Sea-doo RXP X 300 - 2022 Electric - Audio System Diagram

Description

Price

1400a1

LH Speaker Enclosure | Includes 1400a1 to 1400a1d

278003876

$261.92

1400a1b

Stopper

278003860

$0.61

1400a1d

Stopper

278003860

$0.61

1400a2

Speaker

278003463

$124.12

1400a3

Speaker Grille

278003466

$12.97

1400a4

Amplifier

278003464

$371.12

1400a5

Audio Control

278003738

$269.07

1400a6

Amplifier Harness

278003955

$66.92

1405a

RH Speaker Enclosure | Includes 1405a to 1405a4

278003877

$261.92

1405a2

Stopper

278003860

$0.61

1405a4

Stopper

278003860

$0.61

1405b

Speaker

278003463

$124.12

1405c

Speaker Grille

278003466

$12.97

1405d

RH Harness Speaker | Includes 1405d to 1405d2

278003759

$16.22

1405d2

Housing 6 Circuits

278003866

$11.06

1407

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

1408

Insert

291003793

$2.44

1410

LH Bracket

278003766

$9.43

1420

RH Bracket

278003768

$9.43

1430

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1435

Nut Flange Elastic M6

233261200

$0.82
