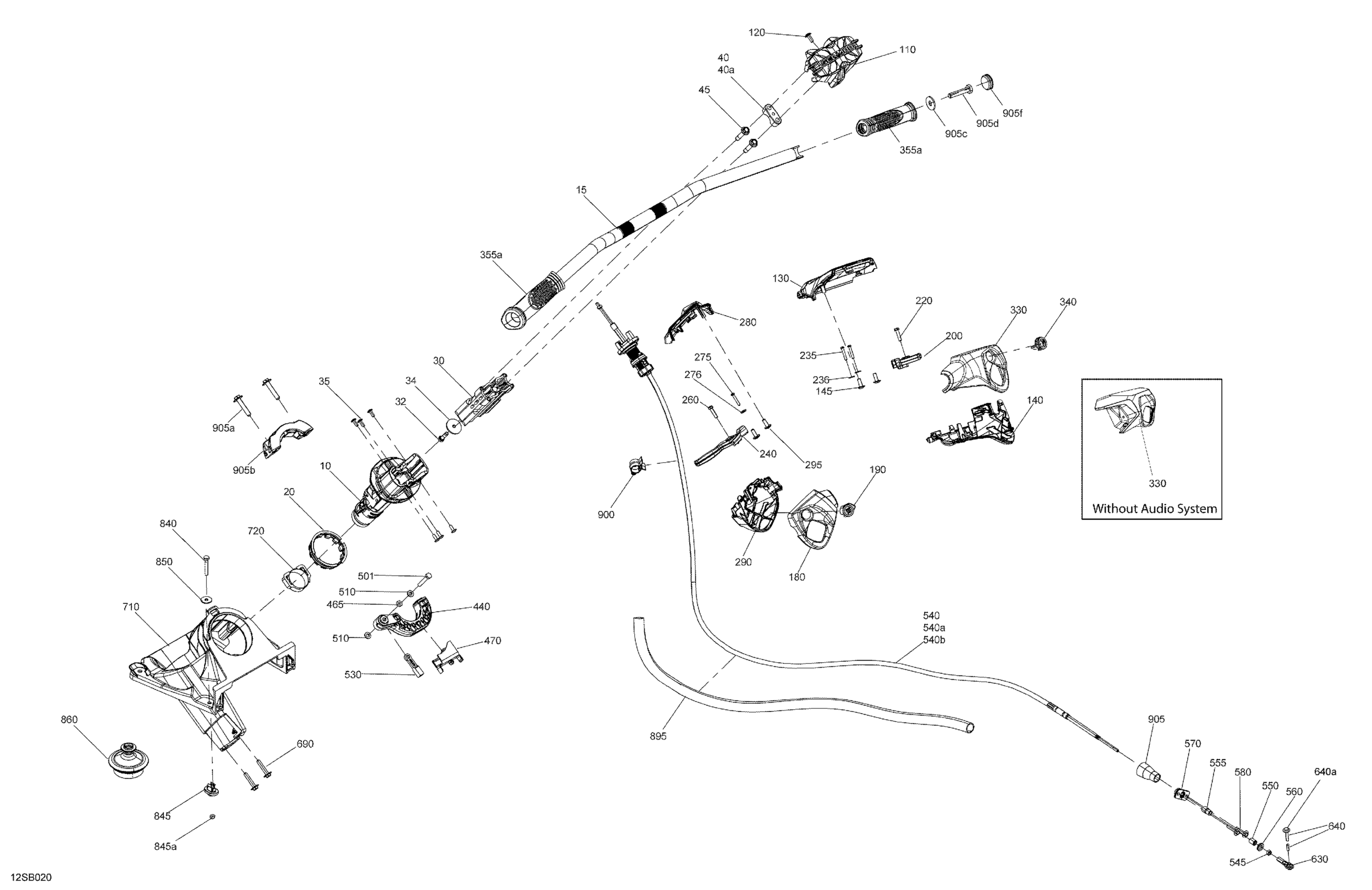

Sea-doo RXP X 300 - 2022 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002111

$167.02

15

Millenium Yellow, Handlebar

277002139

$98.48

15

Deep Black, Handlebar

277002180

$83.82

20

Wear Ring

277001874

$9.74

30

Handlebar Riser Bock

277002141

$63.40

32

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

34

Flat Washer M8.4 x 40

250200188

$4.98

35

Torx Truss Screw M6 X 16

250000922

$1.56

40

Steering Support | Includes 40 to 40a

506152751

$10.09

40a

Steering Support | Includes 40 to 40a

506152751

$10.09

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

110

Deep Black, Steering Pad

277002005

$22.07

120

Torx Truss Screw M6 X 16

250000922

$1.56

130

RH Upper Housing

277002040

$85.77

140

RH Lower Housing

277002036

$79.92

145

Torx Truss Screw M6 X 16

250000922

$1.56

180

LH Cover

277002037

$15.64

190

Red Button Switch

277002327

$7.46

200

Hand Lever Accelerator

277002138

$30.52

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$2.89

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

280

LH Upper Housing

277002041

$85.77

290

LH Lower Housing

277002035

$79.92

295

Torx Truss Screw M6 X 16

250000922

$1.56

330

RH Cover | Without Audio system

277002038

$13.62

330

RH Cover

277002316

$13.62

340

Slate Grey, Button-BRP Connect

277002100

$7.27

355a

Handlebar Grip

277002286

$14.92

440

Steering Arm

277002106

$7.19

465

Elastic Stop Nut M6, Brass

232561200

$3.51

470

Spacer

277001654

$11.40

501

Hex. Screw M6 X 40

207064060

$1.40

510

Stainless Flat Washer M6

234061600

$0.25

530

Ball Joint

277001180

$27.92

540

Steering Cable | Includes 540 to 540b

277002167

$96.17

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Hexagonal Cap Screw M6 X35

250000399

$3.61

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

640a

Hex Screw SEMS M6X35, SS

250000969

$1.74

690

Hexagonal Cap Screw M6 X35

250000399

$3.61

710

Steering Column Support

277002168

$40.27

720

Wear Ring

277002318

$12.43

840

Hex. Screw M6 X 40

207164060

$2.74

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.61

845a

Elastic Stop Nut M6, Brass

232561200

$3.51

850

Flat Washer M6.6 X 22

250200022

$1.87

860

Cable Boot

293720116

$4.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$21.42

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.75

905a

Hexagonal Cap Screw M6 X35

250000399

$3.61

905b

C Clamp

277002085

$7.19

905c

Flat Washer M6, Stainless

234062600

$0.64

905d

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

905f

Black, Cap

277000203

$7.48
