02- Engine - Fuel

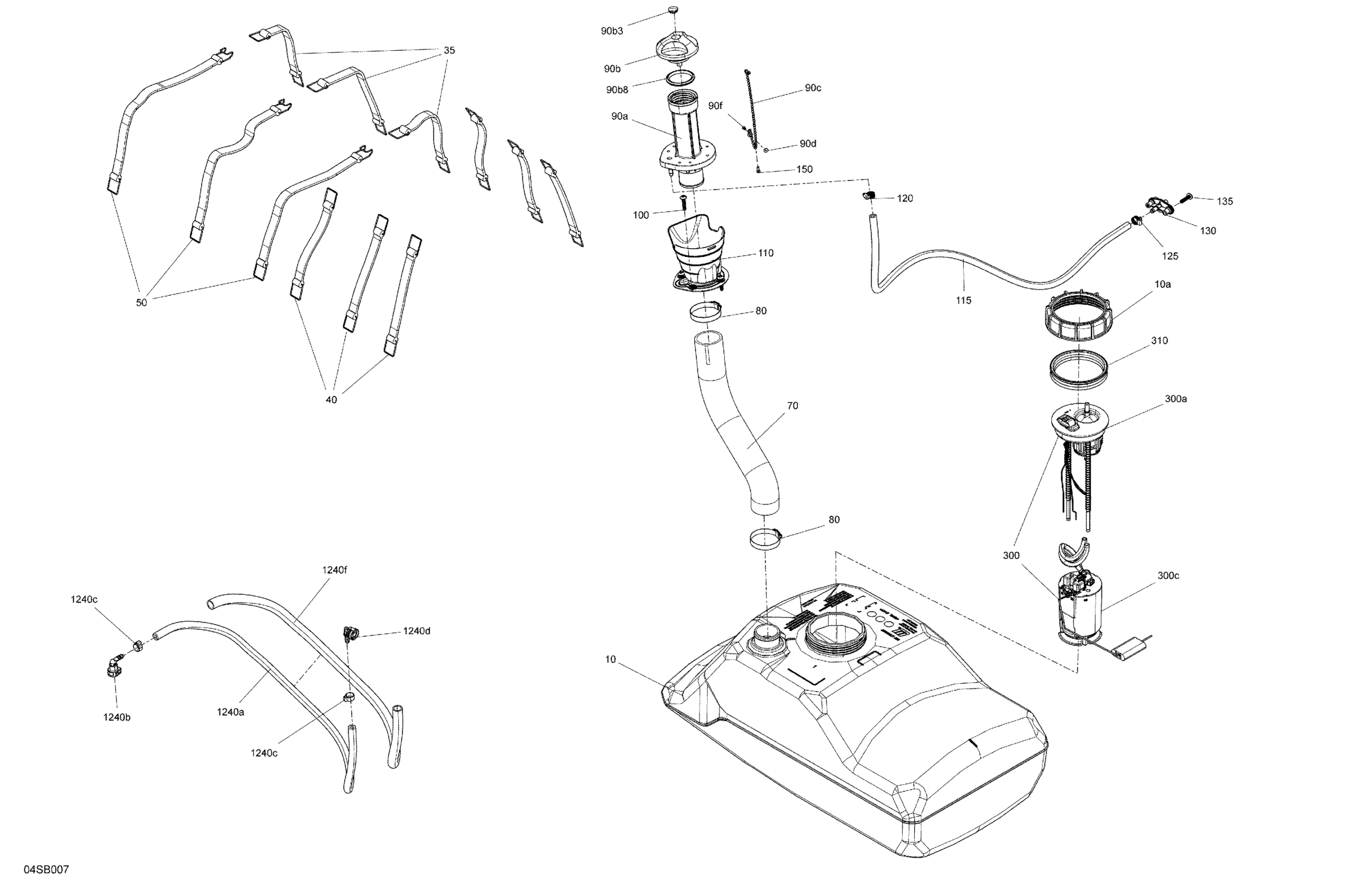

Sea-doo 001 - RXP X 300 - North America, 2022 02- Engine - Fuel Diagram
#
Description
Price
10
Fuel Tank | Includes 10 to 10a
275500997
$359.99
10a
Special Nut M130
250100062
$21.99
35
Holding Strap
293850112
$18.49
40
Holding Strap
293850112
$18.49
50
Holding Strap
293850134
$20.99
70
Fuel Tank Hose
275501025
$80.99
80
Norma Clamp
293650081
$12.18
90a
Filler Neck
275501005
$36.99
90b
Fuel Cap Ass'y | Includes 90b to 90b8
275500975
$59.49
90b3
Black, Snap Cap
293000034
$9.39
90b8
Gasket
293250417
$3.91
90c
Fuel Cap Chain
275500972
$18.54
90d
Flat Washer M3, Stainless
234032600
$0.55
90f
Pop Rivet 1/8"
390407900
$1.49
100
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
110
Gas, Deflector
293250480
$10.49
115
Hose I.D. 7.9Mm 3000Mm Long
219704359
$339.99
120
Tridon Gear Clamp
293650172
$3.09
125
Tridon Gear Clamp
293650172
$3.09
130
Fitting Sub Ass'y
275501022
$8.18
135
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
150
Screw K40 X 10
241140060
$1.48
300
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
300a
Sensor Lever
275500780
$224.99
300c
Fuel Filter
270600113
$33.99
310
Gasket
293250173
$18.49
1240a
Hose I.D. 7.9Mm 3000Mm Long
219704359
$339.99
1240b
Quick Disconnect
275500921
$16.49
1240c
Crimp Clamp
293650053
$3.09
1240d
Elbow Fitting 90°
293710105
$14.22
1240f
Tubing 16 Mm 1000Mm Long
219704408
$7.49
