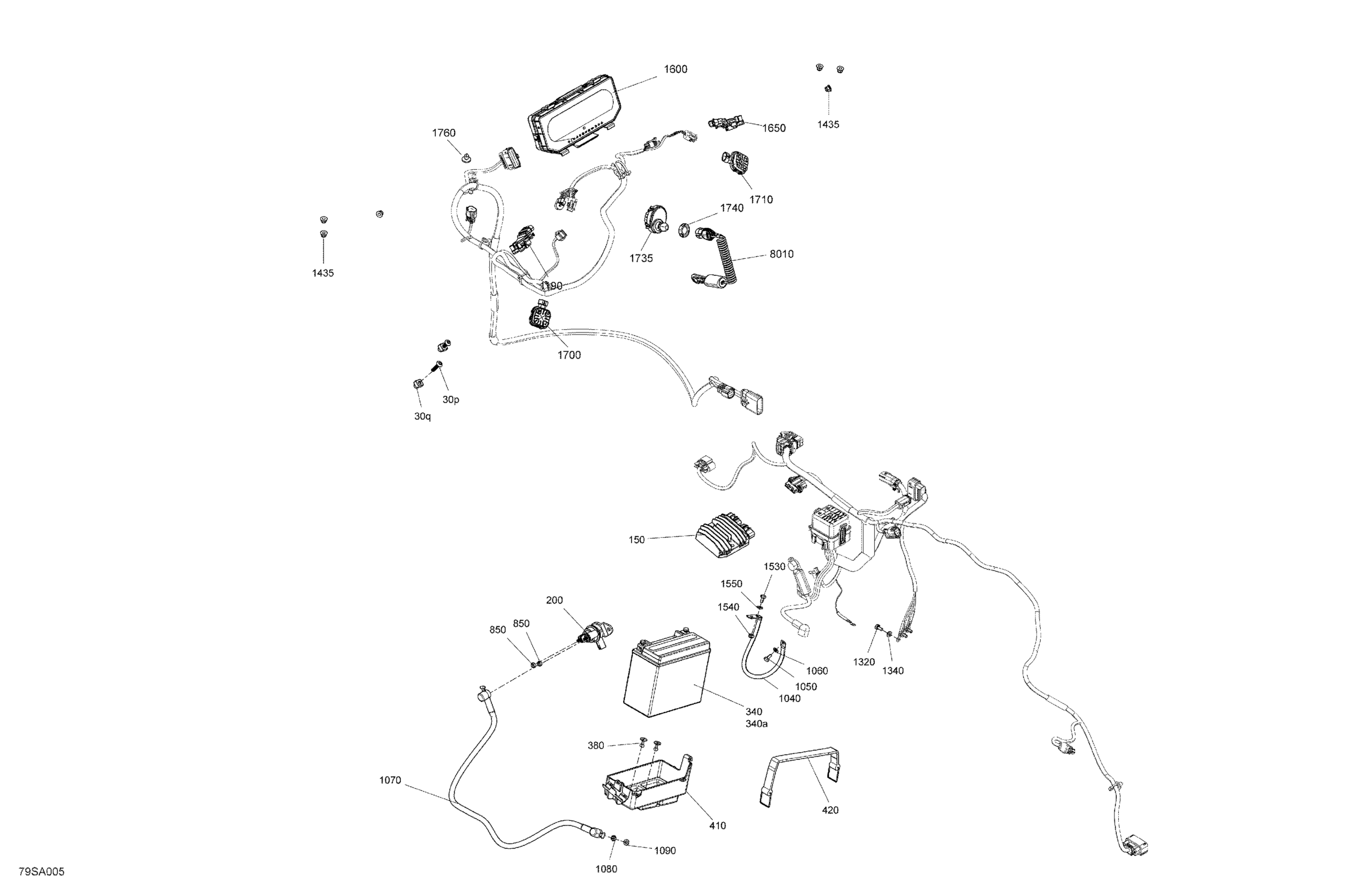

Sea-doo RXP X 300 - 2021 Electric - System Diagram

#

Description
Price

30p

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

30q

Insert

291003793

$2.44

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1435

Nut Flange Elastic M6

233261200

$0.82

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1760

Mount Dart

293730040

$0.86

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
