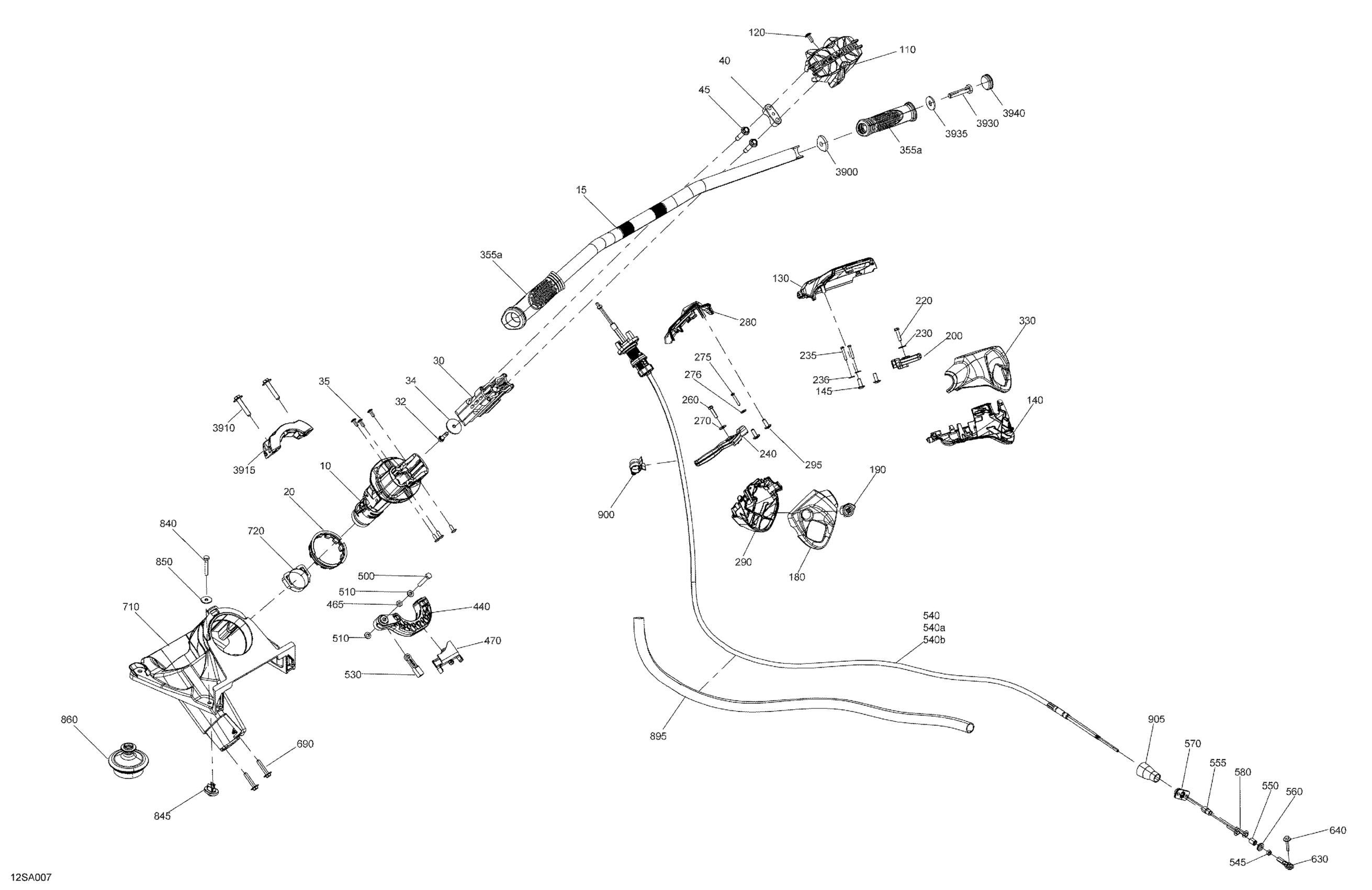

Sea-doo 001 - RXP X 300 - North America, 2021 03- Mechanic - Steering Diagram
#
10
Steering Column
277002111
$214.99
15
Millenium Yellow, Handlebar
277002139
$105.99
15
Manta Green, Handlebar | Model Midnight Purple
277002161
$105.99
20
Wear Ring
277001874
$12.17
30
Handlebar Riser Bock
277002141
$63.99
32
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
34
Flat Washer M8.4 x 40
250200188
$6.03
35
Torx Truss Screw M6 X 16
250000922
$1.90
40
Steering Support | Includes 40 to 40a
506152751
$13.99
45
Hex. Screw Flange DIN.6921 S.Grip
250000834
$3.91
110
Deep Black, Steering Pad
277002005
$28.99
120
Torx Truss Screw M6 X 16
250000922
$1.90
130
RH Upper Housing
277002040
$109.99
140
RH Lower Housing
277002036
$104.99
145
Torx Truss Screw M6 X 16
250000922
$1.90
180
LH Cover
277002037
$18.99
190
Red Button Switch
277002327
$9.21
200
Hand Lever Accelerator
277002138
$38.99
220
Hex. Screw 10-14 X 7/8”
211000023
$3.59
230
Flat Washer 5 mm, Stainless
234052600
$0.77
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
260
Hex. Screw 10-14 X 7/8”
211000023
$3.59
270
Flat Washer 5 mm, Stainless
234052600
$0.77
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
280
LH Upper Housing
277002041
$109.99
290
LH Lower Housing
277002035
$104.99
295
Torx Truss Screw M6 X 16
250000922
$1.90
330
RH Cover | Without Audio system
277002038
$18.99
355a
Handlebar Grip
277002286
$19.99
440
Steering Arm
277002106
$9.19
465
Elastic Stop Nut M6, Brass
232561200
$4.23
470
Spacer
277001654
$15.99
500
Hex. Screw M6 X 40
207064060
$1.69
510
Stainless Flat Washer M6
234061600
$0.33
530
Ball Joint
277001180
$35.99
540
Steering Cable | Includes 540 to 540b
277002146
$121.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
545
Hex. Nut 1/4"-28
211100056
$0.69
550
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Hexagonal Cap Screw M6 X35
250000399
$4.44
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
690
Hexagonal Cap Screw M6 X35
250000399
$4.44
710
Steering Column Support
277002168
$51.99
720
Wear Ring
277002318
$15.99
840
Hex. Screw M6 X 40
207164060
$3.38
845
Housing Nut Overmolded | Includes 2060 to 2060a
291004662
$2.00
850
Flat Washer M6.6 X 22
250200022
$2.72
860
Cable Boot
293720116
$4.49
895
Corrugated Sheath 22MM - 1250MM
276000520
$26.49
900
Cable Retainer
275500527
$2.68
905
Rope Guide
277002150
$0.93
3900
Insert Grip Handle
277001863
$8.83
3910
Hexagonal Cap Screw M6 X35
250000399
$4.44
3915
C Clamp
277002085
$9.19
3930
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
3935
Flat Washer M6, Stainless
234062600
$0.77
3940
Black, Cap
277000203
$9.39
