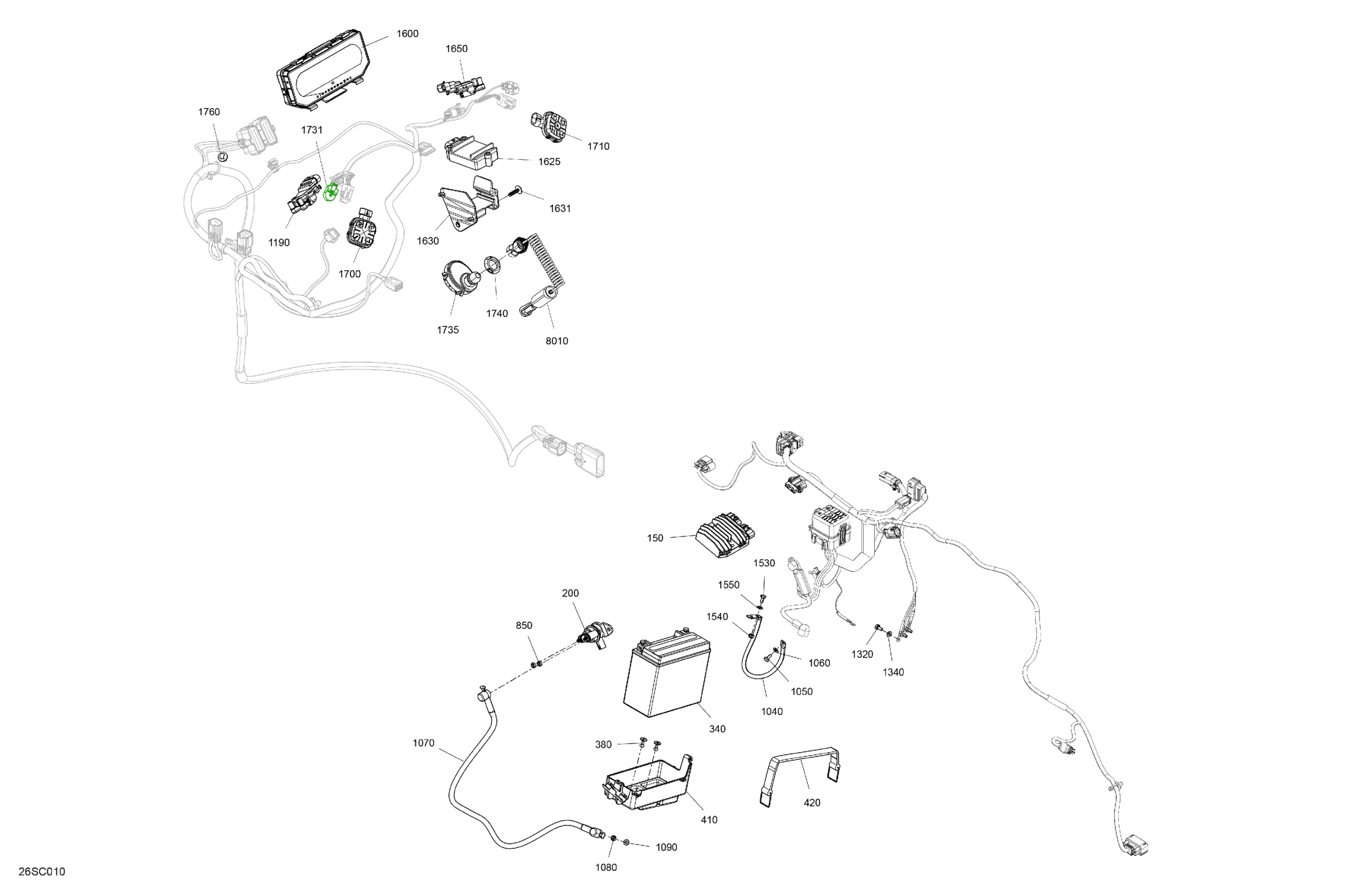

Sea-doo 001 - RXP X 300, 2023 08- Electric - System Diagram
#
Description
Price
150
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
200
Starter Relay
278003012
$42.49
340
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
$154.99
380
Pop Rivet 3/16"
293150123
$4.29
410
Battery Support
278003473
$28.99
420
Fuel Tank Strap
293850095
$19.99
850
Elastic Stop Nut M6, Brass
232561200
$4.23
1040
Ground Battery Cable
278003451
$39.99
1050
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1060
Stainless Flat Washer M6
234061600
$0.33
1070
Starter Cable
278003369
$39.99
1080
Elastic Stop Nut M6, Brass
232561200
$4.23
1090
Stainless Flat Washer M6
234061600
$0.33
1190
LH Throttle Sensor
278002284
$119.99
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1340
Stainless Flat Washer M6
234061600
$0.33
1530
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1540
Elastic Stop Nut M6, Brass
232561200
$4.23
1550
Stainless Flat Washer M6
234061600
$0.33
1600
Full Size Multifunction Mono Gauge
278003432
$819.99
1600
Full Size Multifunction Color Gauge
278004097
$1.00
1625
GPS
278004506
$109.99
1630
GPS Support
278003957
$14.49
1631
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
1650
Throttle Position Sensor
278002283
$119.99
1700
LH Switch Keypad
278003726
$126.99
1710
RH Switch Keypad
278003474
$126.99
1731
Start/Stop Switch This part replaces 296000440.
296000440
$46.49
1735
Terminal DESS One Wire
515179305
$74.99
1740
Specialized Nut
278004274
$3.28
1760
Mount Dart
710008294
$1.04
8010
Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j
278003402
$84.99
