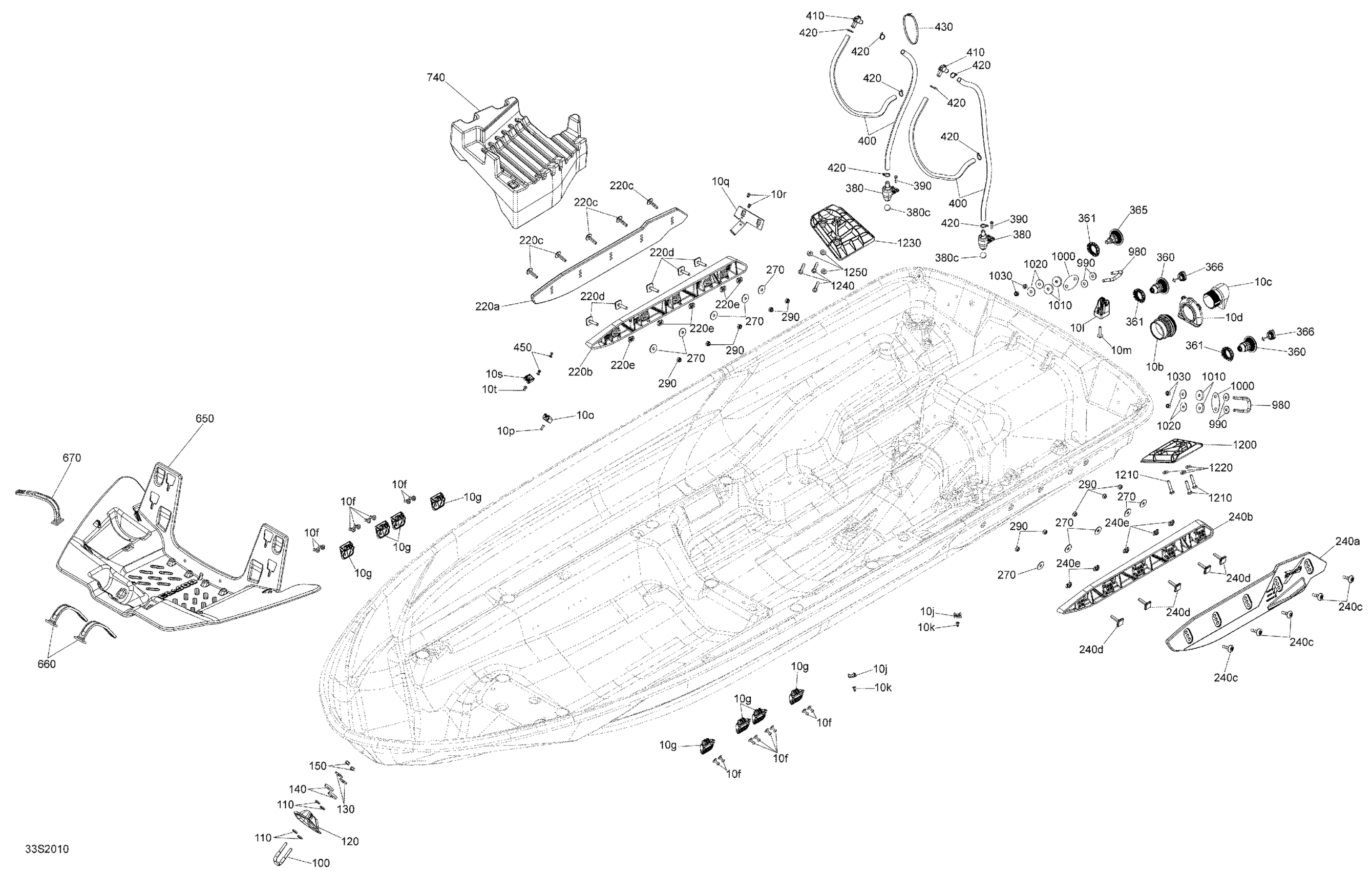

Sea-doo RXP 300, 2020 Hull Diagram

#

Description
Price

10b

Hull Insert

293450340

$27.66

10b

Hull Insert

293450340

$27.66

10c

Hull Insert

293450335

$16.22

10c

Hull Insert

293450335

$16.22

10d

Hull Insert

293450356

$9.23

10d

Hull Insert

293450356

$9.23

10f

Pop Rivet 3/16"

293150123

$3.43

10f

Pop Rivet 3/16"

293150123

$3.43

10g

Strap Retaining

270000933

$5.47

10g

Strap Retaining

270000933

$5.47

10j

Tie Rap Mount

293750026

$2.41

10j

Tie Rap Mount

293750026

$2.41

10k

Avdel Rivet 3/16"

293150037

$0.47

10k

Avdel Rivet 3/16"

293150037

$0.47

10l

Strap Anchor

270000988

$8.46

10l

Strap Anchor

270000988

$8.46

10m

Hexagonal Cap Screw M6 X35

250000399

$3.61

10m

Hexagonal Cap Screw M6 X35

250000399

$3.61

10o

Strap Anchor

270000854

$5.30

10o

Strap Anchor

270000854

$5.30

10p

Pop Rivet 3/16"

293150043

$1.61

10p

Pop Rivet 3/16"

293150043

$1.61

10q

Strap Anchor

270000977

$14.37

10q

Strap Anchor

270000977

$14.37

10r

Pop Rivet 3/16"

293150043

$1.61

10r

Pop Rivet 3/16"

293150043

$1.61

10s

Strap Anchor

270000854

$5.30

10s

Strap Anchor

270000854

$5.30

10t

Pop Rivet 3/16"

293150043

$1.61

10t

Pop Rivet 3/16"

293150043

$1.61

100

U-Clamp

292000933

$32.47

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

110

Flat Washer M8.5 x 18

293050001

$1.29

120

Black Shell

292001837

$14.92

120

Black Shell

292001837

$14.92

130

Flat Washer 8 mm, Stainless

250200175

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Rubber Washer

293830037

$2.75

140

Rubber Washer

293830037

$2.75

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220a

RH Sponson This part replaces 292001426.

292001871

$78.43

220a

RH Sponson This part replaces 292001426.

292001871

$78.43

220b

RH Spacer Sponson This part replaces 292001428.

292001873

$40.92

220b

RH Spacer Sponson This part replaces 292001428.

292001873

$40.92

220c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

220c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

220d

Square Head Stud

292001471

$15.35

220d

Square Head Stud

292001471

$15.35

220e

Push Nut

292001503

$0.81

220e

Push Nut

292001503

$0.81

240a

Sponson LH This part replaces 292001427.

292001872

$64.97

240a

Sponson LH This part replaces 292001427.

292001872

$64.97

240b

Spacer Sponson LH This part replaces 292001429.

292001874

$42.87

240b

Spacer Sponson LH This part replaces 292001429.

292001874

$42.87

240c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

240c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

240d

Square Head Stud

292001471

$15.35

240d

Square Head Stud

292001471

$15.35

240e

Push Nut

292001503

$0.81

240e

Push Nut

292001503

$0.81

270

Flat Washer 8 mm, Stainless

250200175

$1.29

270

Flat Washer 8 mm, Stainless

250200175

$1.29

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

Drain Ass'y

292001580

$12.86

360

Drain Ass'y

292001580

$12.86

361

Plastic Nut

292001825

$6.37

361

Plastic Nut

292001825

$6.37

365

Drain Neck Ass'y

292001317

$21.42

365

Drain Neck Ass'y

292001317

$21.42

366

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

366

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

380<380c

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380<380c

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380c

Floating Ball

293830080

$5.56

380c

Floating Ball

293830080

$5.56

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

410

Fitting Elbow 90°

293710152

$14.92

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

430

Tie Wrap 368 mm

293750008

$0.85

450

Avdel Rivet 3/16"

293150037

$0.47

450

Avdel Rivet 3/16"

293150037

$0.47

650

Panel | Includes 900 to 900a

292002397

$50.74

650

Panel | Includes 900 to 900a

292002397

$50.74

660

Strap

269502417

$14.27

660

Strap

269502417

$14.27

670

Strap

269502417

$14.27

670

Strap

269502417

$14.27

740

Cooler Float

292001840

$47.42

740

Cooler Float

292001840

$47.42

980

U-Clamp

292000933

$32.47

980

U-Clamp

292000933

$32.47

990

Flat Washer

279000336

$8.35

990

Flat Washer

279000336

$8.35

1000

Black, Finition Plate

291001386

$8.57

1000

Black, Finition Plate

291001386

$8.57

1010

Rubber Washer

293830037

$2.75

1010

Rubber Washer

293830037

$2.75

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1200

Trim Tab LH

292001430

$14.27

1200

Trim Tab LH

292001430

$14.27

1210

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

1210

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

1220

Flat Washer M8.5 x 18

293050001

$1.29

1220

Flat Washer M8.5 x 18

293050001

$1.29

1230

TrimTab RH

292001431

$14.27

1230

TrimTab RH

292001431

$14.27

1240

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

1240

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

1250

Flat Washer M8.5 x 18

293050001

$1.29

1250

Flat Washer M8.5 x 18

293050001

$1.29
