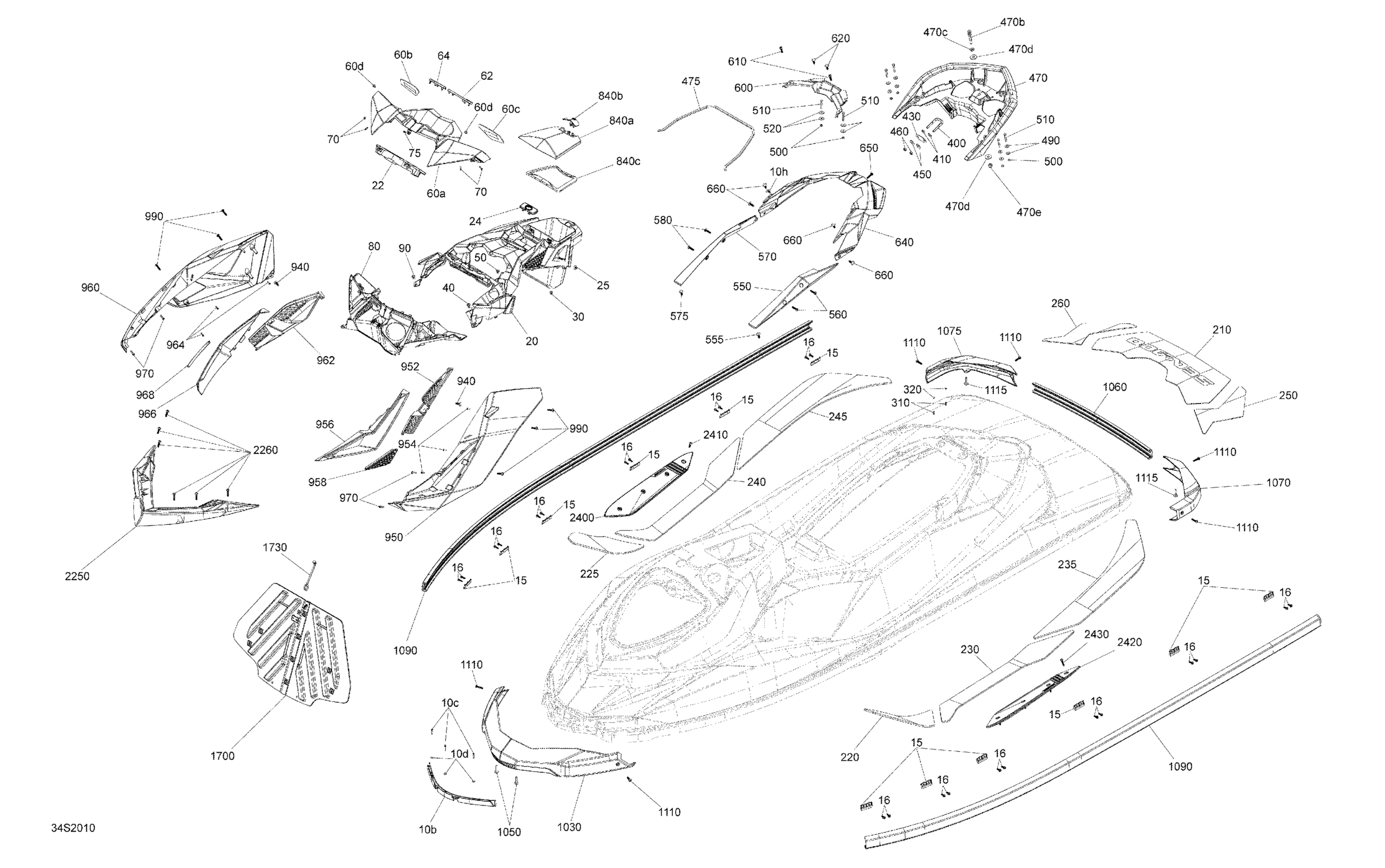

Sea-doo RXP 300, 2020 Body Diagram

#

Description
Price

10b

Deck Nose

291003897

$18.99

10c

Hex. Flange Screw K40 X 25

241142560

$2.64

10d

Flat Washer 4 mm, Stainless

234042600

$1.15

10h

Black, Dart

293730011

$0.99

15

Bumper Anchorage

291005313

$8.49

16

Torx Screw, Stainless

278002475

$5.93

20

Black, Console

291004654

$124.99

22

Deep Black, Display Adaptor

291004655

$6.03

24

Deep Black, Console Cap

291004718

$16.99

25

Black, Dart

414644300

$0.98

30

Rubber Bumper

293830005

$8.09

40

Pop Rivet 3/16"

293150123

$4.29

50

Pop Rivet 3/16

293150186

$2.09

60a

Deep Black, Gauge Bezel

291004657

$43.99

60b

Mirror RH, With Double-Face Tape

291003090

$48.49

60c

Mirror LH, With Double-Face Tape

291003091

$48.49

60d

Rubber Bumper

293830005

$8.09

62

Dragon Red, Trim Gauge LH

705012354

$5.89

64

Dragon Red, Trim Gauge RH

705012355

$5.89

70

Flange Torx Screw K40 X 16

250000287

$2.11

75

Torx Screw K40 X 16 | Canada/USA

250000735

$3.91

80

Deep Black, Mirror Support

291004271

$48.99

90

Pop Rivet 3/16"

293150123

$4.29

210

Platform Carpet

291003586

$71.99

220

Anti-Slip Mat Front LH

291005364

$24.99

225

Anti-Slip Mat Front RH

291005365

$24.99

230

Anti-Slip Mat Center LH

291005362

$24.99

235

Anti Slip Mat Rear LH

291005358

$24.99

240

Anti-Slip Mat Center RH

291005363

$24.99

245

Anti Slip Mat Rear RH

291005359

$24.99

250

Rear Carpet LH

291003593

$15.89

260

Rear Carpet RH

291003594

$15.89

310

Rivet 1/8"

293150016

$0.40

320

Black, Snap Cap

293000014

$1.09

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

430

Black, Finition Plate

291001386

$10.99

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

470<470e

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$94.49

470b

Stud Seat

291003877

$48.99

470c

Hex. Jam Nut M10

232100600

$2.22

470d

Flat Washer 10 mm, Stainless

234002600

$2.22

470e

Elastic Stop Nut M10, Brass

232501200

$2.64

475

Gasket

292002523

$9.32

490

Flat Washer M6, Stainless

234062600

$0.77

500

Elastic Stop Nut M6, Brass

232561200

$4.23

510

Hex. Screw M6 X 40

207164060

$3.38

520

Flat Washer M6.6 X 22

250200022

$2.72

550

Black, Trim Passenger Handle LH | Model Jungle Green

291004989

$27.99

550

Gold, LH Passenger Handle Trim | Model Dragon Red

291004991

$63.99

555

Black, Dart

293730006

$0.99

560

Screw Torx M6.81 X 30

250001007

$2.54

570

Black, Trim Passenger Handle RH | Model Jungle Green

291004990

$27.99

570

Gold, RH Passenger Handle Trim | Model Dragon Red

291004992

$63.99

575

Black, Dart

293730006

$0.99

580

Screw Torx M6.81 X 30

250001007

$2.54

600

Deep Black, Vent Cover

291003372

$18.76

610

Screw Torx M6.81 X 30

250001007

$2.54

620

Black, Dart

293730006

$0.99

640

Deep Black, Cosmetic Rear

291004365

$52.99

650

Screw Torx M6.81 X 30

250001007

$2.54

660

Black, Dart

293730006

$0.99

840a

Deep Black, Glove Box Door

291004579

$44.99

840b

Black, Latch

264000164

$15.99

840c

Urethane Seal

293250265

$17.49

940

Black, Dart

293730006

$0.99

940

Black, Dart

293730006

$0.99

950

Black, Side Cosmetic LH | Model Jungle Green

291004504

$248.99

950

Dragon Red, Side Cosmetic LH | Model Dragon Red

291004958

$349.99

952

Black, LH Side Grille

291003348

$27.99

954

Flange Torx Screw K40 X 16

250000287

$2.11

956

Liquid Gold, LH Front Panel Trim | Model Dragon Red

291004962

$100.49

956

Carbon Black, Trim Panel Front LH | Model Jungle Green

291005307

$100.49

958

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$12.99

958

Krypton Green, LH Front Hood Grille | Model Jungle Green

291005284

$12.99

960

Deep Black, RH Side Cosmetic | Model Jungle Green

291004506

$349.99

960

Dragon Red, Side Cosmetic RH | Model Dragon Red

291004959

$349.99

962

Deep Black, RH Side Grille

291003349

$27.99

964

Flange Torx Screw K40 X 16

250000287

$2.11

966

Liquid Gold, RH Front Panel Trim | Model Dragon Red

291004964

$100.49

966

Carbon Black, Trim Panel Front RH | Model Jungle Green

291005308

$100.49

968

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$12.99

968

Krypton Green, RH Front Hood Grille | Model Jungle Green

291005285

$12.99

970

Hex. Screw 10-14 X 7/8”

211000023

$3.59

970

Hex. Screw 10-14 X 7/8”

211000023

$3.59

990

Screw Torx M6.81 X 30

250001007

$2.54

990

Screw Torx M6.81 X 30

250001007

$2.54

1030

Front Bumper This part replaces 291005401.

291004277

$76.49

1050

Hexagonal Cap Screw M6 X35

250000399

$4.44

1060

Black, Side Bumper

291004451

$58.49

1070

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

1075

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

1090

Black, Side Bumper

291004451

$58.49

1110

Screw Torx M6.81 X 30

250001007

$2.54

1115

Hexagonal Cap Screw M6 X35

250000399

$4.44

1700

Panel, Divider Ass'y

291005160

$104.99

1730

Holding Strap

269502111

$18.49

2250

Deflector

291004367

$75.99

2260

Screw Torx M6.81 X 30

250001007

$2.54

2400

Footrest

291004317

$76.99

2410

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

2420

Footrest

291004319

$76.99

2430

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66
