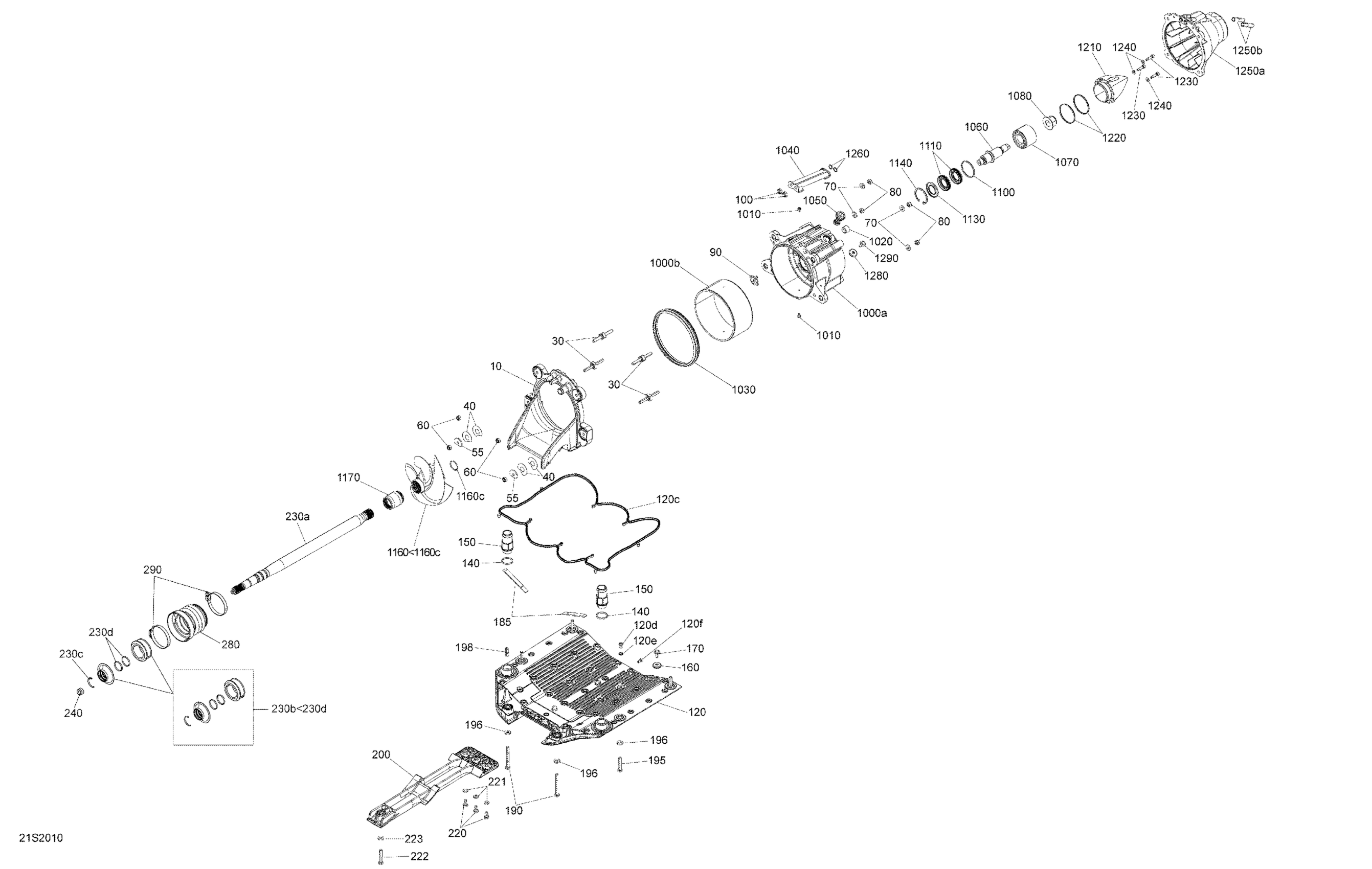

Sea-doo RXP 300, 2020 Propulsion Diagram

#

Description
Price

10

Pump Support

271001931

$32.81

30

Square Stud

250300046

$13.67

40

Shim 0.3 mm

272000053

$9.21

55

Flat Washer

279000326

$3.27

60

Hex. Elastic Nut M8 Brass

232581200

$1.48

70

Flat Washer M8.5 x 18

293050001

$1.48

80

Hex. Elastic Nut M8 Brass

232581200

$1.48

90

Reducer, Green This part replaces 271001586.

271002029

$14.72

100

Watertight Seal

293250084

$6.67

120<120f

Riding Plate Ass'y | Includes 120 TO 120f

271002021

$289.52

120c

Gasket

271002024

$26.84

120d

Torx Screw M6 X 14

250000384

$7.06

120e

Sealing Washer

250200114

$4.15

120f

Socket Drain Plug M6 X 12

250500005

$13.48

140

O-Ring

293300121

$7.09

150

Strait Fitting

293710124

$14.82

160

Anode Zinc

271001920

$13.12

170

Hex Screw M6 X 20

250000965

$2.00

185

Gasket, Neoprene 2000Mm Long

219704476

$14.51

190

Hexagonal Head Cap Screw M8 X 75

250000812

$2.70

195

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

196

Flat Washer M8.5 x 18

293050001

$1.48

198

Cap Plug

293000105

$3.88

200

Pump Grate

271001971

$59.67

220

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.96

221

Stainless, Flat Washer 8 mm

234081600

$0.52

222

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

223

Flat Washer M8.5 x 18

293050001

$1.48

230a

Drive Shaft

271001719

$305.19

230b<230d

Carbon Ring Kit | Includes 230b TO 230d This part replaces 295501199.

295501205

$88.78

230c

C-Clip

271001577

$3.07

230d

O-Ring

293300107

$0.96

240

Drive Shaft Plug

272000173

$8.06

280

Bellow This part replaces 271001422.

271001933

$21.61

290

Norma Clamp

293650079

$10.21

1000a

Impeller Housing

271002018

$261.16

1000b

Wear Ring

267000917

$79.07

1010

Hex. Screw 10-32 X 3/8", Stainless

204100269

$0.87

1020

Black, Plastic Plug

267000469

$6.88

1030

Neoprene Seal

293200087

$10.55

1040

Water Outlet

271000785

$3.49

1050

Plug | Includes 370z to 370z1

267000282

$16.39

1060

Impeller Shaft

267000388

$108.18

1070

Angled Bearing This part replaces 267000030.

267000900

$76.09

1080

Elastic Flange Nut M20

250100104

$11.15

1100

O-Ring

293300090

$6.85

1110

Seal

271002071

$30.57

1130

Oil Seal

293200089

$17.88

1140

Circlip

293370038

$8.18

1160<1160c

Impeller Assembly | Includes 360n to 360n3

267000951

$462.66

1160c

O-Ring

293300044

$0.99

1170

Guard

271002228

$11.31

1210

Impeller Cover

267000428

$16.39

1220

O-Ring

293300086

$3.33

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

1240

Stainless Flat Washer M6

234061600

$0.28

1250a

Venturi

267000845

$142.51

1250b

Siphon Tube

271001885

$1.46

1260

O-Ring

293300013

$6.54

1280

Anode Zinc

271001920

$13.12

1290

Hex Screw M6 X 20

250000965

$2.00
