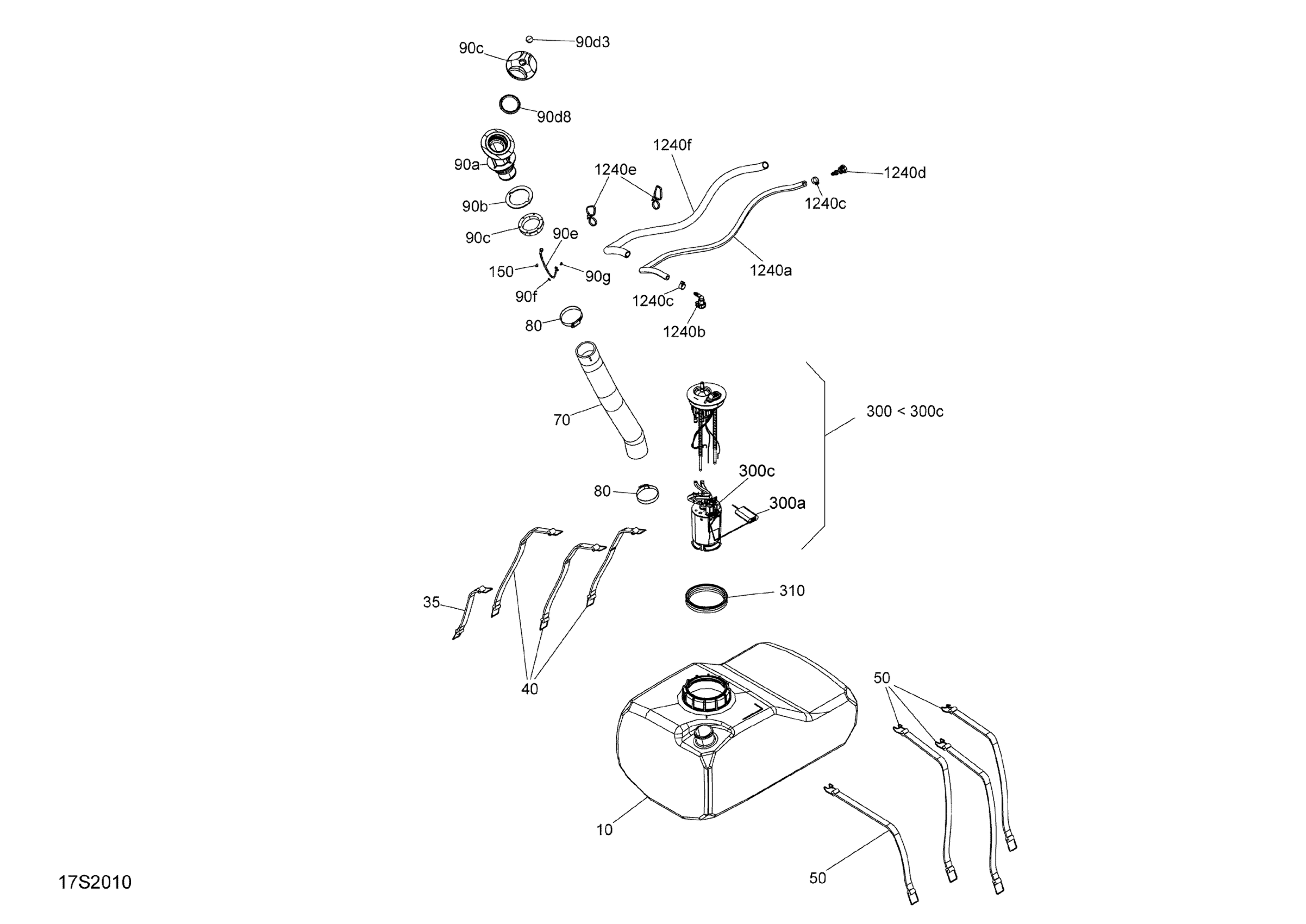

Sea-doo RXP 300, 2020 Fuel System Diagram

#

Description
Price

10

Fuel Tank

275500962

$320.87

35

Holding Strap

293850112

$16.39

40

Fuel Tank Strap

293850093

$19.37

50

Fuel Tank Strap

293850101

$15.64

70

Hose

275500918

$74.60

80

Norma Clamp

293650081

$11.33

90a

Filler Neck

275500845

$36.54

90b

Gasket

293250029

$13.85

90c

Filler Neck Nut, Fuel

211100012

$11.51

90d

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

90d3

Black, Snap Cap

293000034

$8.58

90d8

Gasket

293250417

$3.64

90e

Fuel Cap Chain

275500972

$15.64

90f

Flat Washer M3, Stainless

234032600

$0.52

90g

Pop Rivet 1/8"

390407900

$1.34

150

Screw K40 X 10

241140060

$1.43

300<300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

300a

Sensor Lever

275500780

$202.21

300c

Fuel Filter

270600113

$31.31

310

Gasket

293250173

$17.88

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.15

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$14.48

1240c

Crimp Clamp

293650053

$2.78

1240d

Elbow Fitting 90°

293710105

$12.15

1240e

Tie Rap 300mm

293750053

$1.99

1240f

Tubing 16 Mm 1000Mm Long

219704408

$7.15
