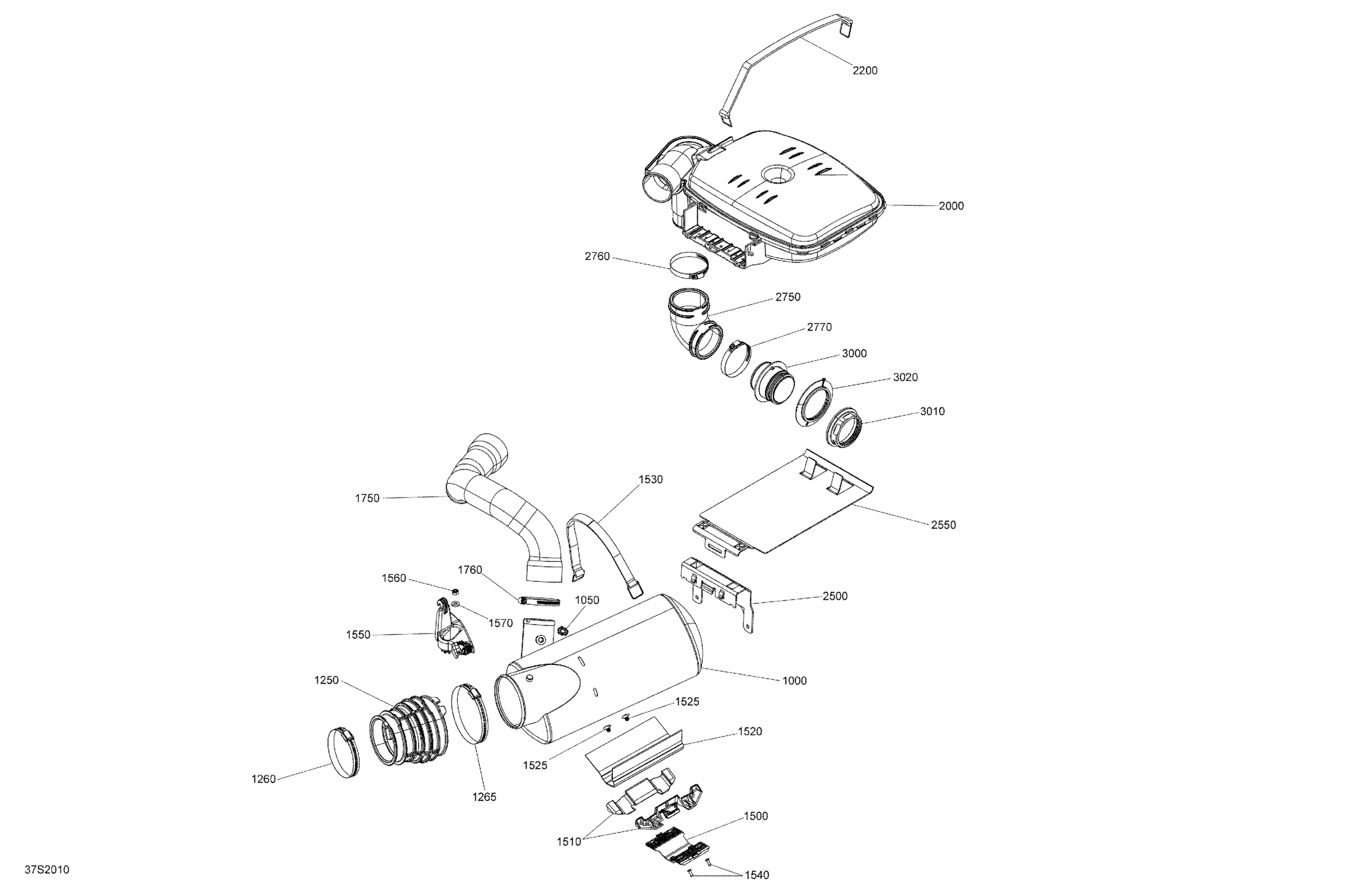

Sea-doo RXP 300, 2020 Exhaust Diagram

#

Description
Price

1000

Muffler

274001685

$710.74

1050

Temperature Sensor

278002895

$31.82

1250

Boot

274001692

$16.87

1260

Gear Clamp This part replaces 293650281.

293650202

$12.73

1265

Gear Clamp

293650299

$18.43

1500

Exhaust Muffler Support This part replaces 274001357.

274001479

$13.62

1510

Stopper

274001721

$14.27

1520

Pad Rubber

293830153

$13.52

1525

Dart

414939500

$0.86

1530

Strap

293850124

$14.92

1540

Pop Rivet 3/16"

293150043

$1.61

1550

Support

274001609

$10.57

1560

Hex. Elastic Nut M8 Brass

232581200

$1.29

1570

Flat Washer M8.5 x 18

293050001

$1.29

1750

Front Exhaust Hose

274001709

$64.97

1760

Tridon Gear Clamp

293650244

$7.22

2000

Resonator

274001722

$126.72

2200

Strap

293850120

$14.92

2500

Bracket

292001831

$24.67

2550

Rubber Pad

293830173

$11.38

2750

Rear Exhaust Hose

274001628

$16.22

2760

Tridon Gear Clamp

293650244

$7.22

2770

Tridon Gear Clamp

293650244

$7.22

3000

Exhaust Fitting

274001659

$29.22

3010

Nut-77mm

274001541

$14.27

3020

Washer

274001587

$11.53
