Description

Price

750<750b

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$71.99

750b

Was 293250388 Seal

219704383

$27.49

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000b

Airbox Cover

273000373

$75.99

2000d

Intake Hose

273000359

$48.99

2000e

Hose Connector

273000375

$73.99

2000f

Air Silencer Hose

273000290

$22.49

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000i

Flange Torx Screw K40 X 16

250000287

$2.11

2300

Formed Hose

270000950

$10.99

2305

Breather Valve

273000234

$14.49

2310

Tridon Gear Clamp

293650051

$4.19

2315

Tridon Gear Clamp

293650051

$4.19

2350

Hose Intake

273000387

$41.99

2370

POLYURETHANE HOSE 1000MM LONG - Call your local BRP dealership

219704392

Unavailable

2380

Tie Wrap 368 mm

293750008

$1.04

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2420

Intake Hose Rear

273000410

$31.99

2430

Tridon Clamp

293650179

$11.49

3000<3000a

Intercooler | Includes 3000 to 3000a

276000335

$625.49

3000a

Anode Zinc

271001942

$18.76

3010

Hose Air Intake Intercooler

273000401

$66.49

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Oultet Hose

273000419

$85.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850094

$22.49

3072

Fuel Tank Strap

293850093

$21.99

3075

Fuel Tank Strap

293850095

$19.99

3080

Pad-Rubber

293830178

$20.99

3090

Black, Dart

293730016

$9.97

3510

Tie Wrap 94 mm | 4X4

293750001

$1.03

3530

Tie-Rap 180 mm

414115200

$0.11

3540

Tie-Rap 180 mm

414115200

$0.11

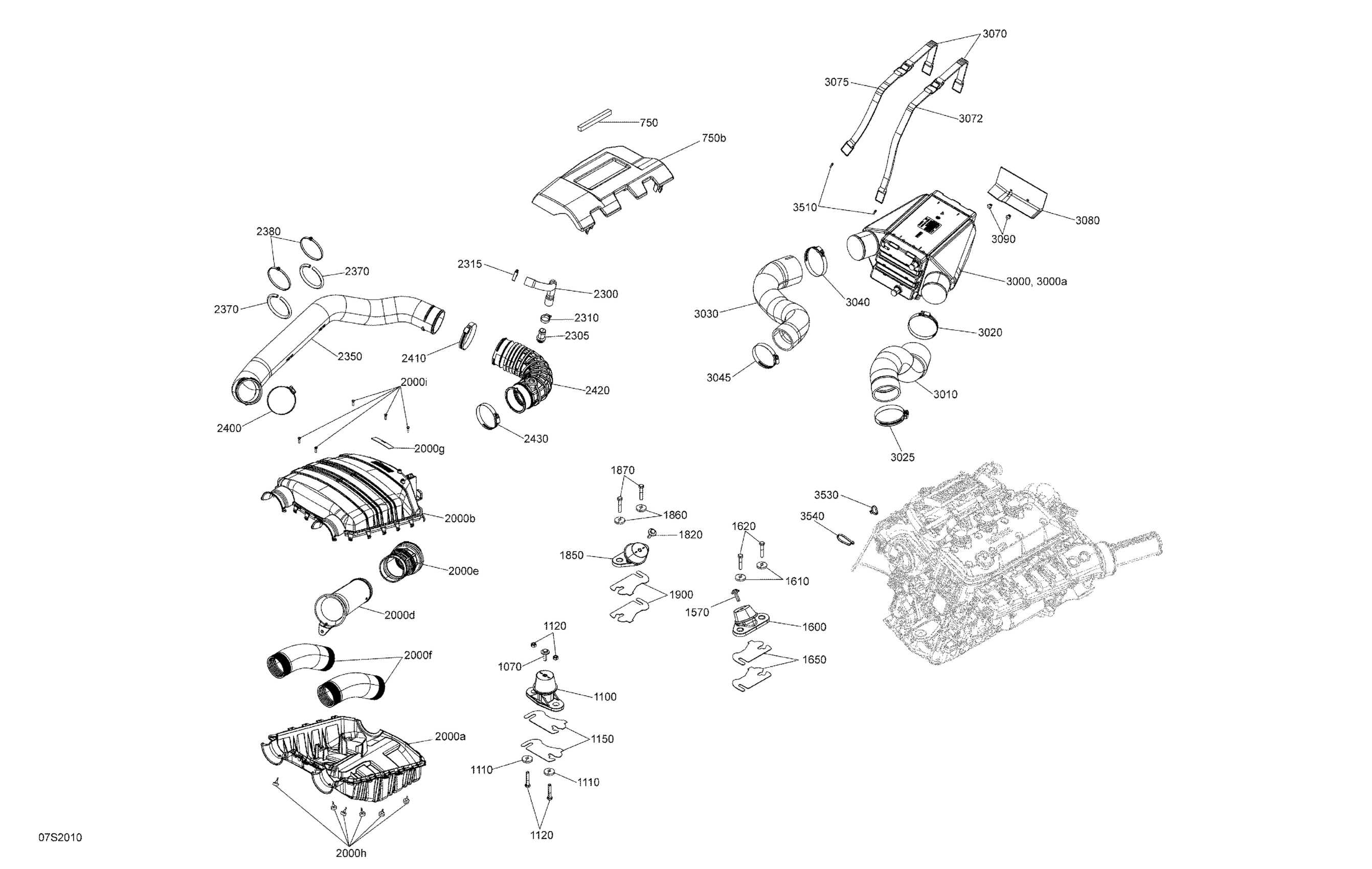

Sea-doo RXP 300, 2020 Engine Diagram

Engine Cover Ass'y | Includes 750 TO 750b

Was 293250388 Seal

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hexagonal Head Cap Screw M8 X 45

Shim 1.3 mm

Airbox Base

Airbox Cover

Intake Hose

Hose Connector

Air Silencer Hose

Air Silencer Notice Decal

Rubber Stopper

Flange Torx Screw K40 X 16

Formed Hose

Breather Valve

Tridon Gear Clamp

Tridon Gear Clamp

Hose Intake

POLYURETHANE HOSE 1000MM LONG - Call your local BRP dealership

Tie Wrap 368 mm

Tridon Clamp

Tridon Clamp

Intake Hose Rear

Tridon Clamp

Intercooler | Includes 3000 to 3000a

Anode Zinc

Hose Air Intake Intercooler

Tridon Gear Clamp

Tridon Clamp

Oultet Hose

Tridon Gear Clamp

Tridon Clamp

Fuel Tank Strap

Fuel Tank Strap

Fuel Tank Strap

Pad-Rubber

Black, Dart

Tie Wrap 94 mm | 4X4

Tie-Rap 180 mm

Tie-Rap 180 mm
