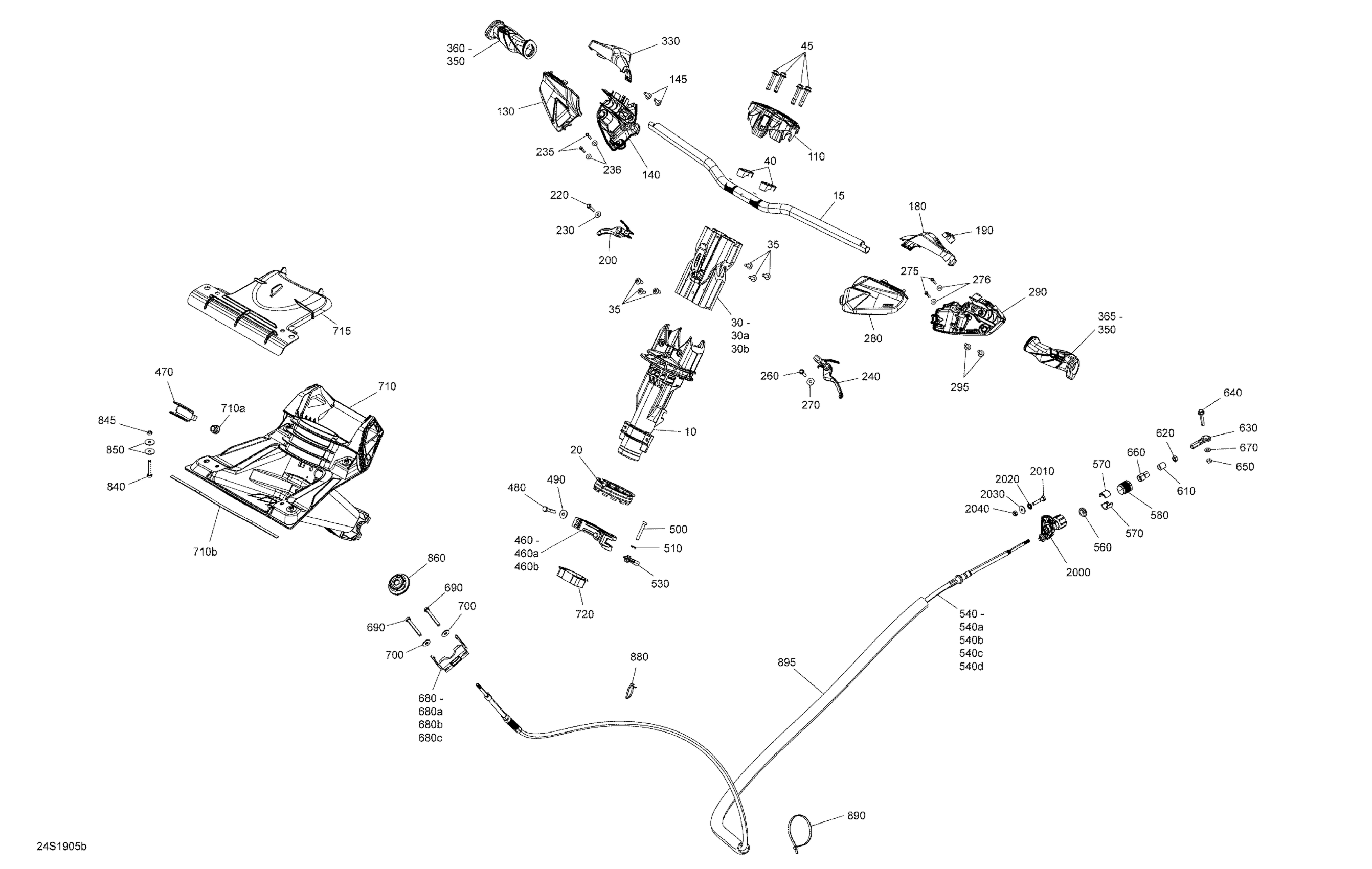

Sea-doo RXP 300, 2019 Steering Diagram

#

Description
Price

10

Steering Column

277001998

$214.99

15

Neon Yellow, Handlebar

277002069

$105.99

20

Wear Ring

277001874

$12.17

30

Adjustable Riser Block | Includes 30 to 30g

277002093

$153.49

30e

Compression Bloc

506153045

$3.29

30f

Spring

506152820

$9.09

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

110

Deep Black, Steering Pad

277002005

$28.99

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002037

$18.99

190

Red Button Switch

277002327

$9.21

200

Throttle Handle

277001944

$38.99

220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

230

Flat Washer 5 mm, Stainless

234052600

$0.77

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Hex. Screw 10-14 X 7/8”

211000023

$3.59

270

Flat Washer 5 mm, Stainless

234052600

$0.77

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover | Without Audio system

277002038

$18.99

350

Insert Grip Handle

277001863

$8.83

360

Deep Black, RH Handle Grip

277001946

$20.99

365

Deep Black, LH Handle Grip

277001958

$20.99

460<460b

Steering Arm Support Ass'y | Includes 460 TO 460c

277001872

$42.99

460b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277000775

$51.99

540<540d

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$211.99

540a

Ajustment Knob

277000782

$22.99

540b

Hex. Nut 1/4"-28

211100056

$0.69

540c

Wiper Rod

277001582

$11.11

540d

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Half Ring

277001527

$10.37

580

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

585

Was 293800013 Loctite 56765

219704454

$65.99

610

Wiper Rod

277001582

$11.11

620

Hex. Nut 1/4"-28

211100056

$0.69

630

Ball Joint

277000775

$51.99

640

Hex. Screw M6 X 35

207663560

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.23

660

End Piece

277001583

$14.49

670

Stainless Flat Washer M6

234061600

$0.33

680<680b

Thrust Support Ass'y

277001655

$28.99

680b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

690

Hex. Screw M6 X 50

207165060

$0.92

700

Flat Washer M6, Stainless

234062600

$0.77

710<710c

Steering Support Ass'y | Includes 710 TO 710b

277001913

$114.99

710b

Cap

517302716

$4.69

710c

Seal

296000392

Unavailable

715

Deflector

293000117

$30.99

720

Wear Ring

277002318

$15.99

840

Hex. Screw M6 X 40

207164060

$3.38

845

Elastic Stop Nut M6, Brass

232561200

$4.23

850

Flat Washer M6.6 X 22

250200022

$2.72

860

Cable Grommet

293720090

$8.49

880

Tie-Rap 180 mm

414115200

$0.11

890

Tie Wrap 368 mm

293750008

$1.04

895

Shield Corrugated 22MM - 1100MM

276000470

$26.49

2000

Cable Adaptor Ass'y

277001881

$19.99

2010

Hex. Screw M6 X 30

207063060

$1.89

2020

Sealing Washer

250200114

$4.44

2030

Flat Washer M6, Stainless

234062600

$0.77

2040

Elastic Stop Nut M6, Brass

232561200

$4.23

2020

Sealing Washer

250200114

$4.44

2030

Flat Washer M6, Stainless

234062600

$0.77

2040

Elastic Stop Nut M6, Brass

232561200

$4.23
