Description

Price

4000

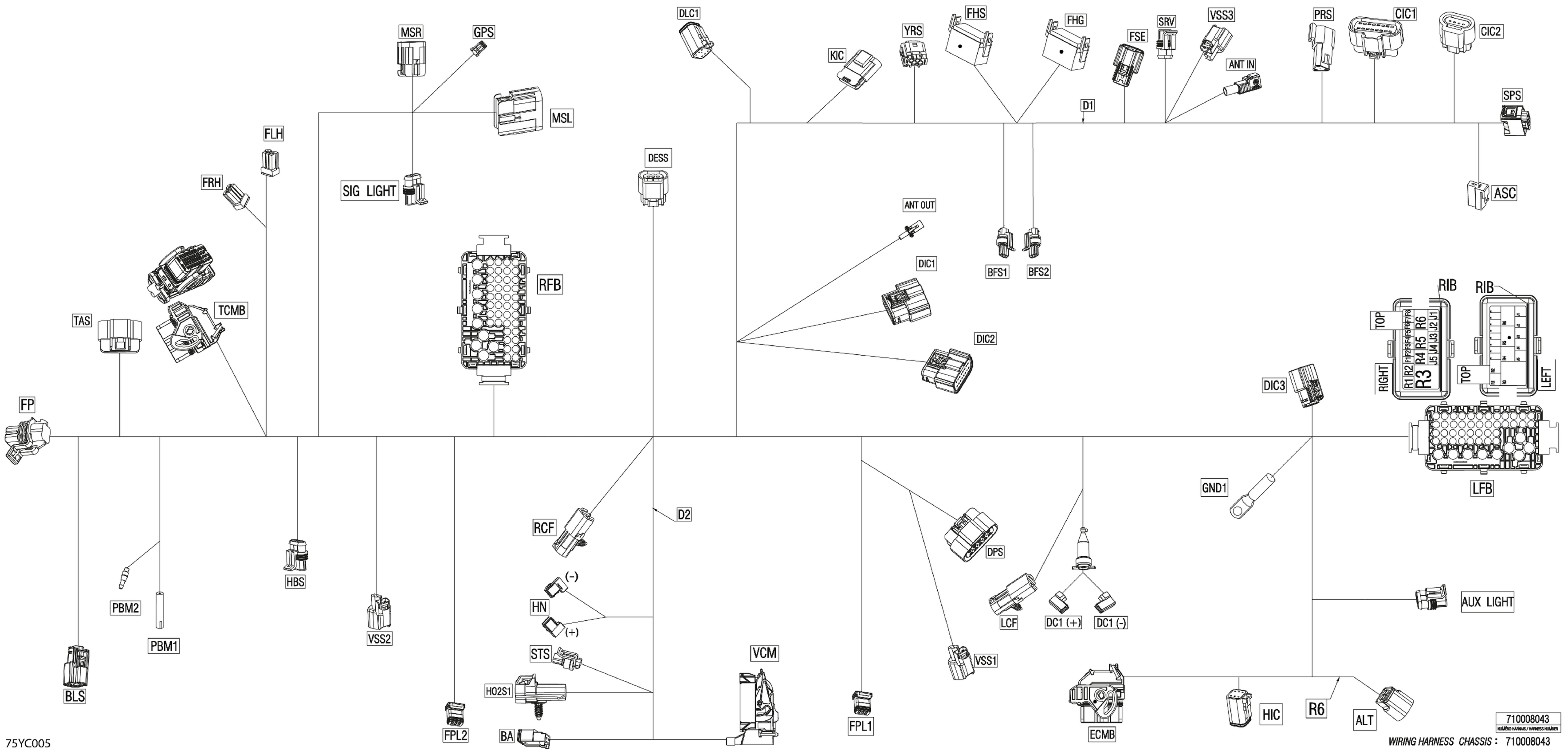

Chassis Wiring Harness

710008043

$940.00

ALT

Housing

710003545

$23.00

ALT

Cap

710000080

$6.48

ALT

Seal Wire

710003546

$7.00

ALT

Female Terminal

710000335

$1.80

ALT

Terminal

710004475

$3.00

ANT OUT

Housing Fakra

710005861

$17.00

ASC

Female Terminal Housing

515176550

$6.43

ASC

Female Terminal

515175282

$6.43

AUX LIGHT

Female Housing, 3 Circuits

409209600

$35.35

AUX LIGHT

Plug

409013700

$4.42

AUX LIGHT

Wire Seal

278001013

$2.72

AUX LIGHT

Female Terminal

278001014

$2.72

BA

Female Terminal Housing, 2 Circuits

515175670

$7.85

BA

Female Lock, 2 Circuits

515175675

$4.42

BA

Female Terminal

278000632

$1.69

BFS1

Female Housing, 2 Circuits

515177192

$6.32

BFS1

Seal

710001233

$2.55

BFS1

Female Terminal

710001164

$5.92

BFS2

Female Housing, 2 Circuits

515177192

$6.32

BFS2

Seal

710001233

$2.55

BFS2

Female Terminal

710001164

$5.92

BLS

Female Housing, 4 circuits

278003535

$25.35

BLS

Female Terminal

515178572

$2.00

BLS

Female Terminal

515178573

$2.00

CIC1

Housing

710001226

$11.83

CIC1

Lock

710001222

$1.68

CIC1

Cap

710001225

$7.27

CIC1

Seal

710001233

$2.55

CIC1

Seal Wire

710001332

$2.72

CIC1

Terminal

710001229

$3.02

CIC1

Terminal

710001228

$2.72

CIC2

Female Housing

515177186

$25.35

CIC2

Lock

710001222

$1.68

CIC2

Cap

710001225

$7.27

CIC2

Seal

710001233

$2.55

CIC2

Seal Wire

710001332

$2.72

CIC2

Terminal

710001229

$3.02

CIC2

Terminal

710001228

$2.72

D1

Diode

409012700

$10.83

D2

Diode

409012700

$10.83

DC1 (-)

Female Terminal

710002398

$2.31

DC1 (-)

Female Terminal

710002399

$1.94

DC1 (+)

Female Terminal

710002398

$2.31

DC1 (+)

Female Terminal

710002399

$1.94

DESS

Housing Connector

515177287

$7.46

DESS

Lock

710001222

$1.68

DESS

Seal

710001233

$2.55

DESS

Terminal

710001229

$3.02

DIC1

Connector Molex Mx150 16 Pos

710005979

Unavailable

DIC1

Sealing Cap

278002860

$1.42

DIC1

Female Terminal

515178018

$0.78

DIC1

Female Terminal

515178014

$1.92

DIC2

Connector Molex Mx150 16 Pos

710005978

$12.00

DIC2

Sealing Cap

278002860

$1.42

DIC2

Female Terminal

515178018

$0.78

DIC2

Female Terminal

515178014

$1.92

DIC3

Female Housing, 4 circuits

278003535

$25.35

DIC3

Sealing Cap

278002860

$1.42

DIC3

Female Terminal

515178018

$0.78

DIC3

Female Terminal

515178014

$1.92

DLC1

Female Housing 6 Circuits

710002706

$16.22

DLC1

Lock

710002705

$3.61

DLC1

Plug

710005437

$3.08

DLC1

Female Terminal

710005438

$4.00

DLC1

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Terminal

710001873

$2.02

DPS

Female Terminal

278002187

$5.04

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Plug

710001592

$2.12

ECMB

Plug

710001593

$2.12

ECMB

Female Terminal

710001589

$1.79

ECMB

Female Terminal

710001590

$1.69

ECMB

Female Terminal

710001727

$2.55

F1L

Little Fuse, 15 Ampere

710000745

$6.77

F1R

Little Fuse, 15 Ampere

710000745

$6.77

F2L

Little Fuse, 10 Amperes

710000744

$7.24

F2R

Little Fuse, 10 Amperes

710000744

$7.24

F3L

Little Fuse, 10 Amperes

710000744

$7.24

F3R

Little Fuse, 15 Ampere

710000745

$6.77

F4L

Little Fuse, 20 Amperes

710000746

$6.77

F4R

Little Fuse, 10 Amperes

710000744

$7.24

F5L

Little Fuse, 5 Amperes

710000742

$7.24

F5R

Little Fuse, 7.5 Amperes

710000743

$8.02

F6L

Little Fuse, 15 Ampere

710000745

$6.77

F6R

Little Fuse, 5 Amperes

710000742

$7.24

F7L

Little Fuse, 10 Amperes

710000744

$7.24

F8L

Little Fuse, 15 Ampere

710000745

$6.77

FHG

4 Circuits Female Housing

515178175

$11.14

FHG

Female Terminal

710006769

$1.00

FHS

4 Circuits Female Housing

515178175

$11.14

FHS

Female Terminal

515178302

$5.11

FLH

Female Housing, 3 Circuits

515175495

$15.35

FLH

Female Terminal

515175231

$4.12

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FP

Seal

710000643

$4.12

FP

Seal

278001482

$2.55

FP

Female Terminal

278001481

$3.02

FPL1

Female Housing, 3 Circuits

515178538

$17.00

FPL1

Female Terminal

278002857

$0.74

FPL2

Female Housing, 3 Circuits

515178538

$17.00

FPL2

Female Terminal

278002857

$0.74

FRH

Female Housing, 3 Circuits

515175495

$15.35

FRH

Female Terminal

515175231

$4.12

FSE

Housing

515178954

$35.35

FSE

Female Terminal

515178018

$0.78

GPS

Housing JAE 2 Circuits

278002856

$13.83

GPS

Female Terminal

278002857

$0.74

HBS

Female Housing, 3 Circuits

409209600

$35.35

HBS

Plug

409013700

$4.42

HBS

Wire Seal

515176621

$7.00

HBS

Female Terminal

710001340

$5.11

HIC

Female Housing 6 Circuits

710002706

$16.22

HIC

Lock

710002705

$3.61

HIC

Plug

710005437

$3.08

HIC

Female Terminal

710005438

$4.00

HIC

Female Terminal

710005439

$4.28

HN (-)

Female Terminal

710002398

$2.31

HN (-)

Female Terminal

710002399

$1.94

HN (+)

Female Terminal

710002398

$2.31

HN (+)

Female Terminal

710002399

$1.94

HO2S1

Housing

710002466

$2.98

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

J1L

Fuse, 40 AMP

710001047

$11.52

J1R

Fuse 30 amp.

710001200

$7.37

J2L

Fuse, 25 AMP

710001046

$4.00

J2R

Fuse, 40 AMP

710001047

$11.52

J3L

Fuse, 40 AMP

710001047

$11.52

J3R

Fuse, 20 AMP

710001078

$1.83

J4L

Fuse, 40 AMP

710001047

$11.52

J4R

Fuse 30 amp.

710001200

$7.37

J5R

Fuse, 25 AMP

710001046

$4.00

KIC

Housing

710001231

$12.05

KIC

Seal Wire

710001332

$2.72

KIC

Terminal

710001223

$3.02

LCF

Female Housing, 2 Circuits

278000217

$7.59

LCF

Wire Seal

710000504

$4.60

LCF

Male Terminal

409004300

$5.46

LFB

Fusebox Ass'y

710005623

$46.12

LFB

Seal Plug

278002880

$5.43

LFB

Cap

710001631

$1.37

LFB

Wire Seal

278001065

$6.03

LFB

Wire Seal

278000218

$3.48

LFB

Terminal Joint

710001905

$1.83

LFB

Seal Joint

710007566

$5.00

LFB

Seal Joint

710003132

$0.85

LFB

Female Terminal

710000918

$5.10

LFB

Female Terminal

278002578

$0.86

LFB

Terminal

710001906

$2.98

LFB

M Terminal

710003135

$2.75

LFB

Terminal

710002438

$1.00

LFB

F Terminal

710003125

$3.68

LFB C

Cover

710007491

$17.66

LFB C

Fuses Decal

710006721

$11.00

LFB C

Little Fuse, 5 Amperes

710000742

$7.24

LFB C

Little Fuse, 10 Amperes

710000744

$7.24

LFB C

Little Fuse, 15 Ampere

710000745

$6.77

LFB C

Little Fuse, 20 Amperes

710000746

$6.77

LFB C

Little Fuse, 25 Ampere

278002389

$4.42

MSL

Housing

710001944

$15.00

MSL

Cap

710001225

$7.27

MSL

Seal Wire

710001332

$2.72

MSL

Seal

710001233

$2.55

MSL

Terminal

710001223

$3.02

MSL

Terminal

710001224

$3.02

MSR

Housing, Packard

710001929

$10.83

MSR

Cap

710001225

$7.27

MSR

Seal

710001233

$2.55

MSR

Terminal

710001224

$3.02

PBM1

Insulated Sheath

278001007

$3.22

PBM1

Female Terminal

710000421

$5.46

PBM2

Insulated Sheath

278001008

$3.20

PBM2

Female Terminal

278002261

$6.20

PRS

Male Housing

278002378

$10.91

PRS

Male Lock, 3 Circuits

409207600

$3.02

PRS

Male Terminal

710001348

$11.14

R6

Resistor

515179003

$2.00

RCF

Female Housing, 2 Circuits

278000217

$7.59

RCF

Wire Seal

710000504

$4.60

RCF

Male Terminal

409004300

$5.46

RFB

Fusebox Ass'y

710005623

$46.12

RFB

Seal Plug

278002880

$5.43

RFB

Cap

710001631

$1.37

RFB

Wire Seal

278001065

$6.03

RFB

Wire Seal

278000218

$3.48

RFB

Terminal Joint

710001905

$1.83

RFB

Seal Joint

710007566

$5.00

RFB

Seal Joint

710003132

$0.85

RFB

Female Terminal

710000890

$3.73

RFB

Female Terminal

710000918

$5.10

RFB

Female Terminal

278002578

$0.86

RFB

Terminal

710001906

$2.98

RFB

M Terminal

710003135

$2.75

RFB

Terminal

710002438

$1.00

RFB

F Terminal

710003125

$3.68

RFB C

Cover

710007491

$17.66

RFB C

Fuses Decal

710006722

$11.00

RFB C

Little Fuse, 10 Amperes

710000744

$7.24

RFB C

Little Fuse, 15 Ampere

710000745

$6.77

RFB C

Little Fuse, 20 Amperes

710000746

$6.77

RFB C

Little Fuse, 5 Amperes

710000742

$7.24

RFB C

Little Fuse, 25 Ampere

278002389

$4.42

RY1L

Relay

715900824

$16.22

RY1R

Relay

715900824

$16.22

RY2L

Relay

715900824

$16.22

RY2R

Relay

715900824

$16.22

RY3L

50 Amps Relay

710003143

$13.83

RY3R

50 Amps Relay

710003143

$13.83

RY4L

Relay

715900824

$16.22

RY4R

Relay

715900824

$16.22

RY5R

Relay, 30 AMP

515176774

$19.20

RY6R

Relay, 30 AMP

515176774

$19.20

SIG LIGHT

Female Housing, 3 Circuits

409209600

$35.35

SIG LIGHT

Plug

409013700

$4.42

SIG LIGHT

Wire Seal

278001013

$2.72

SIG LIGHT

Female Terminal

278001014

$2.72

SPS

Housing

710003731

$7.37

SPS

Plug

710001938

$2.29

SPS

Wire Seal

710001118

$1.19

SPS

Female Terminal

710003862

$2.38

SRV

Female Housing, 2 Circuits

409209500

$13.48

SRV

Wire Seal

515176621

$7.00

SRV

Female Terminal

710001340

$5.11

STS

Female Housing, 2 Circuits

515177192

$6.32

STS

Wire Seal

710001163

$5.10

STS

Female Terminal

710001164

$5.92

TAS

Housing

710001232

$13.80

TAS

Lock

710001222

$1.68

TAS

Seal

710001233

$2.55

TAS

Terminal

710001229

$3.02

TCMB

Cover, 48 positions

710001591

$10.05

TCMB

48 Circuits Female Housing

515178168

$44.58

TCMB

Plug

710001592

$2.12

TCMB

Plug

710001593

$2.12

TCMB

Female Terminal

710001589

$1.79

TCMB

Female Terminal

710001727

$2.55

VCM

RH Connector Cover

710002772

$4.60

VCM

Module Protector VCM

710002381

$21.00

VCM

Housing

710002768

$17.66

VCM

Plug

710001258

$3.98

VCM

Wire Seal

278000999

$2.55

VCM

Wire Seal

710001159

$6.45

VCM

Wire Seal

710006230

$1.37

VCM

Female Terminal

710000837

$4.32

VCM

Terminal

710002773

$1.83

VCM

Terminal

710002775

$0.69

VSS1

Connector 2 Pins

710005669

$2.75

VSS1

Seal

710005689

$1.83

VSS1

Female Terminal 18-20 AWG

515178348

$1.54

VSS2

Connector 2 Pins

710005669

$2.75

VSS2

Seal

710005689

$1.83

VSS2

Female Terminal 18-20 AWG

515178348

$1.54

VSS3

Connector 2 Pins

710005669

$2.75

VSS3

Seal

710005689

$1.83

VSS3

Female Terminal 18-20 AWG

515178348

$1.54

YRS

Housing

710003730

$14.75

YRS

Wire Seal

710006230

$1.37

YRS

Female Terminal

710003862

$2.38

Can-Am RT - Hyper Silver, 2023 Electric - Main Harness - 710008043 Diagram

Chassis Wiring Harness

Housing

Cap

Seal Wire

Female Terminal

Terminal

Housing Fakra

Female Terminal Housing

Female Terminal

Female Housing, 3 Circuits

Plug

Wire Seal

Female Terminal

Female Terminal Housing, 2 Circuits

Female Lock, 2 Circuits

Female Terminal

Female Housing, 2 Circuits

Seal

Female Terminal

Female Housing, 2 Circuits

Seal

Female Terminal

Female Housing, 4 circuits

Female Terminal

Female Terminal

Housing

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Female Housing

Lock

Cap

Seal

Seal Wire

Terminal

Terminal

Diode

Diode

Female Terminal

Female Terminal

Female Terminal

Female Terminal

Housing Connector

Lock

Seal

Terminal

Connector Molex Mx150 16 Pos

Sealing Cap

Female Terminal

Female Terminal

Connector Molex Mx150 16 Pos

Sealing Cap

Female Terminal

Female Terminal

Female Housing, 4 circuits

Sealing Cap

Female Terminal

Female Terminal

Female Housing 6 Circuits

Lock

Plug

Female Terminal

Female Terminal

Female Housing

Lock

Plug

Wire Seal

Seal

Terminal

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Female Terminal

Female Terminal
