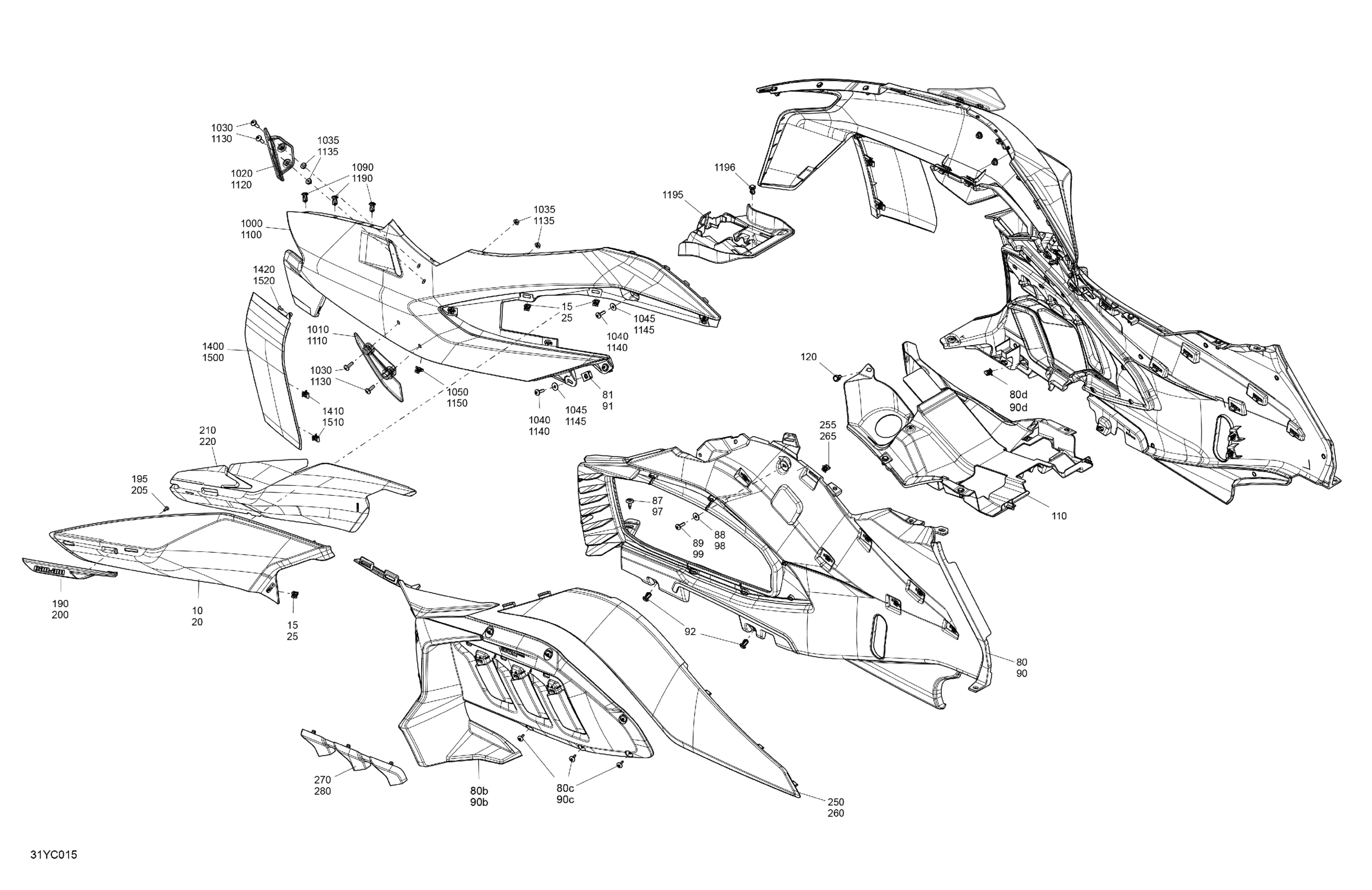

Can-Am RT - Hyper Silver, 2023 Body - System Diagram

#

Description
Price

10

Black, LH Access Cover

705013938

$74.00

15

Edge Clip

517302785

$0.70

20

Black, RH Access Cover

705013939

$74.00

25

Edge Clip

517302785

$0.70

80

LH Central Fairing Ass'y | Includes 80 to 80c

705017527

$210.00

80b

LH Deflector

705016438

$150.00

80c

Screw Type K-40 M4 X 16

250001105

$2.22

80d

Edge Clip

517302785

$0.70

81

Panel Nut M6 X 1.0

250100208

$1.07

87

Tuflock Phillips Plastic Screw

414745900

$1.30

88

Stainless Steel Flat Washer

234062670

$1.74

89

Torx Truss Screw M6 X 25

250000807

$1.74

90

RH Central Fairing Ass'y | Includes 90 to 90d

705017528

$210.00

90b

RH Deflector

705016439

$150.00

90c

Screw Type K-40 M4 X 16

250001105

$2.22

90d

Edge Clip

517302785

$0.70

91

Panel Nut M6 X 1.0

250100208

$1.07

92

Tuflok Plastic Rivet

293150230

$1.21

97

Tuflock Phillips Plastic Screw

414745900

$1.30

98

Stainless Steel Flat Washer

234062670

$1.74

99

Torx Truss Screw M6 X 20

250000705

$1.74

110

Tank Guard

705016790

$28.00

120

Tuflok Plastic Rivet

293150230

$1.21

190

Black, LH Fairing Trim

708303069

$155.00

195

Torx Truss PT K40 x 12

250001131

$1.74

200

Black, RH Fairing Trim

708303070

$155.00

205

Torx Truss PT K40 x 12

250001131

$1.74

210

LH Front Trim Acoustic Insulation

518331044

$20.00

220

RH Front Trim Acoustic Insulation

518331045

$20.00

250

Hyper Silver, LH Upper Fairing

705016725

$250.00

255

Edge Clip

517302785

$0.70

260

Hyper Silver, RH Upper Fairing

705016726

$250.00

265

Edge Clip

517302785

$0.70

270

Deep Black, RH Engine Trim

708303186

$22.00

280

Deep Black, LH Engine Trim

708303182

$24.00

1000

Hyper Silver, LH Front Fairing

708201135

$460.00

1010

LH Lower Air Deflector

705015953

$51.00

1020

LH Upper Air Deflector

705014710

$46.00

1030

Torx Truss Screw M6 X 20

250000705

$1.74

1035

Hex. Flange Nut M6

233161414

$1.74

1040

Torx Truss Screw M6 X 20

250000705

$1.74

1045

Stainless Steel Flat Washer

234062670

$1.74

1050

Edge Clip

517302785

$0.70

1090

Tuflok Plastic Rivet

293150230

$1.21

1100

Hyper Silver, RH Front Fairing

708201136

$460.00

1110

RH Lower Air Deflector

705015954

$46.00

1120

RH Upper Air Deflector

705014711

$46.00

1130

Torx Truss Screw M6 X 20

250000705

$1.74

1135

Hex. Flange Nut M6

233161414

$1.74

1140

Torx Truss Screw M6 X 20

250000705

$1.74

1145

Stainless Steel Flat Washer

234062670

$1.74

1150

Edge Clip

517302785

$0.70

1190

Tuflok Plastic Rivet

293150230

$1.21

1195

Heat Shield

705014871

$18.00

1196

Tuflok Plastic Rivet

293150230

$1.21

1400

LH Scoop In

708201167

$79.00

1410

Edge Clip

517302785

$0.70

1420

Torx Truss PT K40 x 12

250001131

$1.74

1500

RH Scoop In

708201168

$45.00

1510

Edge Clip

517302785

$0.70

1520

Torx Truss PT K40 x 12

250001131

$1.74
