Partiron

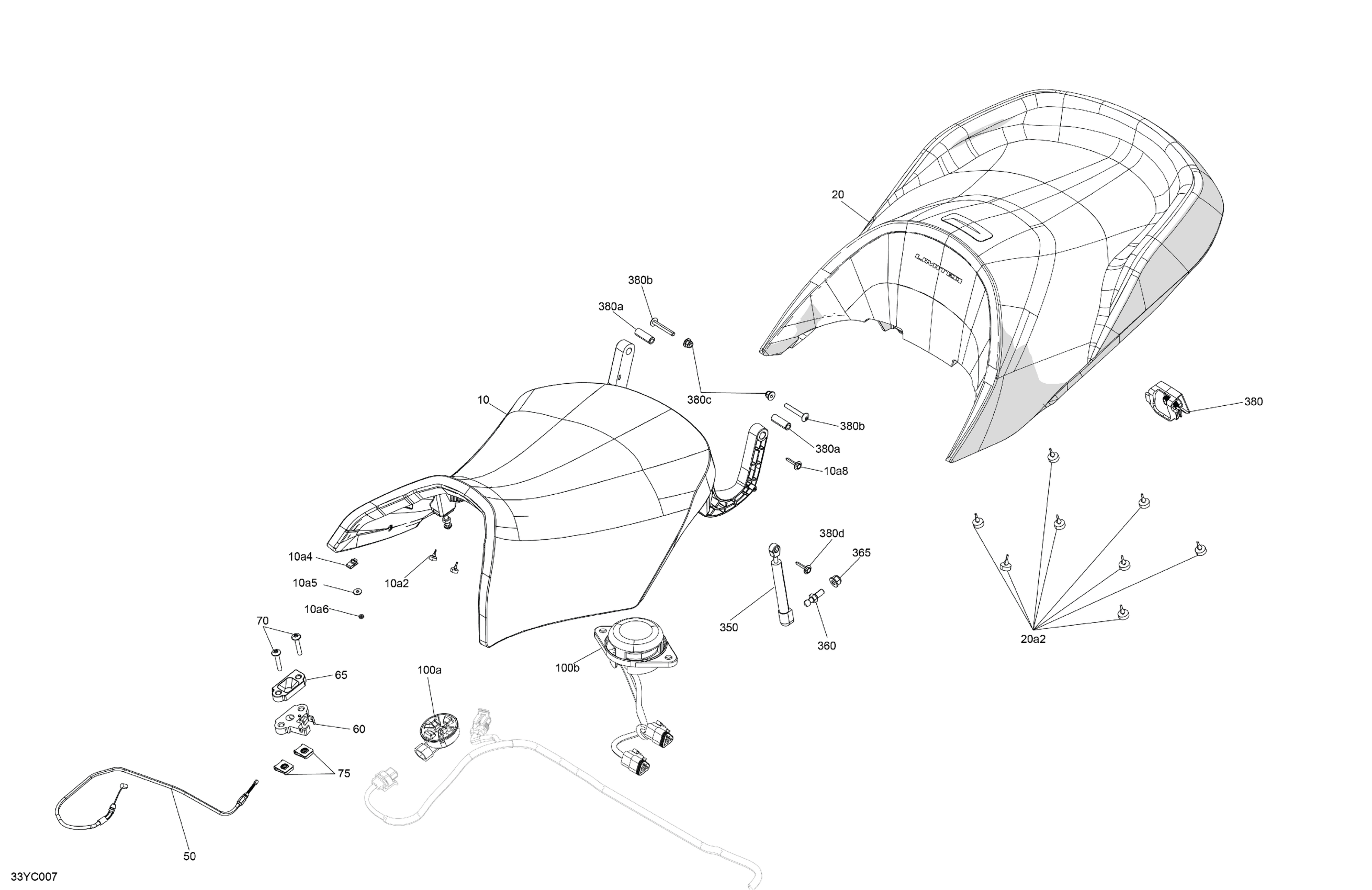

Can-Am RT - Hyper Silver, 2023 Body - Seat Diagram

#

Description
Price

100a

RH Passenger Radio Keypad

710006797

$100.49

100b

Passenger Detection Switch

710008103

$76.99

10

Driver Seat Ass'y | Includes 10 to 10c

708003335

$569.99

10a2

Rubber Stopper

708000759

$4.19

10a4

Panel Nut M6 X 1.0

250100198

$2.11

10a5

Flat washer M6

250200164

$1.01

10a6

Hex. Nut M6

232160600

$1.15

10a8

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

20

Passenger Seat Ass'y | Includes 20 to 20c1

708003312

$409.99

20a2

Rubber Stopper

708000759

$4.19

50

Actuator Cable

517307507

$11.49

60

Latch

705007379

$28.99

65

Trim Latch

708003260

$4.69

70

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

75

Panel Nut M6 X 1.0

250100208

$1.46

350

Shock Absorber

708003221

$83.99

360

Ball Head Stud

250300039

$7.51

365

Hex. Flange Elastic Nut M8

233281414

$1.47

380

Connector Cap | Includes 380 to 380d

708303050

$14.29

380a

Spacer

708000664

$6.49

380b

Torx Screw M6 X 45

250000748

$1.90

380c

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

380d

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
