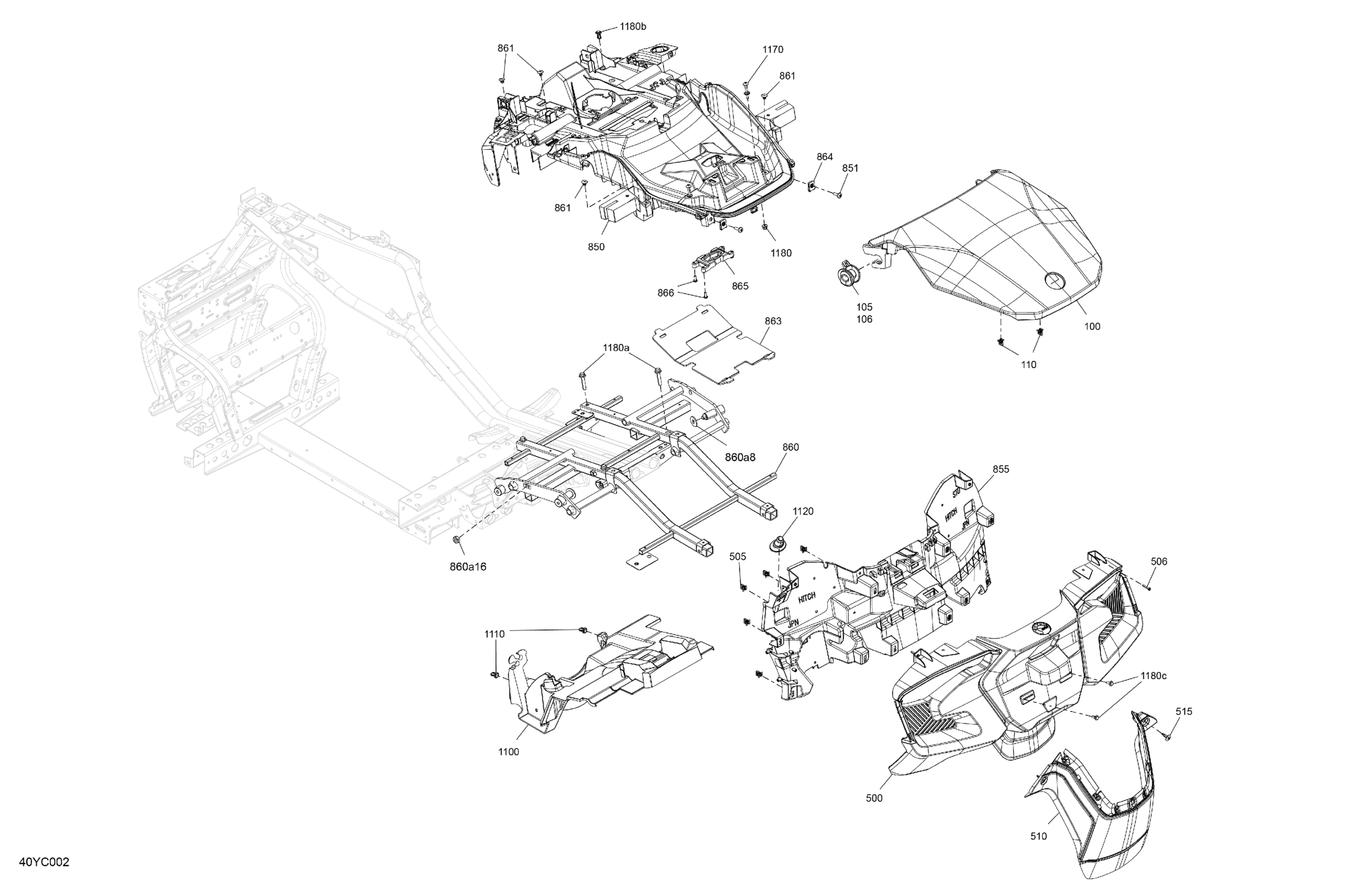

Can-Am RT - Hyper Silver, 2023 Body - Cargo Structure And Rear Fenders Diagram

Description

Price

100

Hyper Silver, Rear Fairing

708003404

$254.99

105

LH Anchorage Socket

708400404

$2.79

106

RH Anchorage Socket

708400441

$2.79

110

Edge Clip

517302785

$0.88

500

Rear Fender

708302949

$204.99

505

Edge Clip

517302785

$0.88

506

Hex. Flange Screw K40 X 25

241142560

$2.64

510

Rear Fender Extention

708301747

$204.99

515

Tuflock Phillips Plastic Screw

414745900

$1.69

850

Rear Box Support

708303979

$109.99

851

Torx Truss Screw M6 X 20

250000705

$2.11

855

Rear Cargo Structure

708303308

$104.99

860

Rear Frame | Included 860 to 860a16

708303883

$349.99

860a8

Flat Washer 10 mm, Stainless

234002600

$2.22

860a16

Hexagonal Nut

233701400

$0.58

861

Pop Rivet 3/16"

293150103

$0.55

863

Rubber Protector

708400407

$14.99

864

Panel Nut M6 X 1.0

250100208

$1.46

865

LinQ Fastener

708303172

$19.99

866

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

1100

Rear Wheel Arch

708303061

$56.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1120

Antenna Cap

708303169

$22.49

1170

Striker

708303392

$4.39

1180

Hex. Flange Elastic Nut M6

233261494

$1.58

1180a

Hex. Flange Screw M8 X 40

207684054

$2.11

1180b

Tuflok Plastic Rivet

293150230

$1.47

1180c

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
