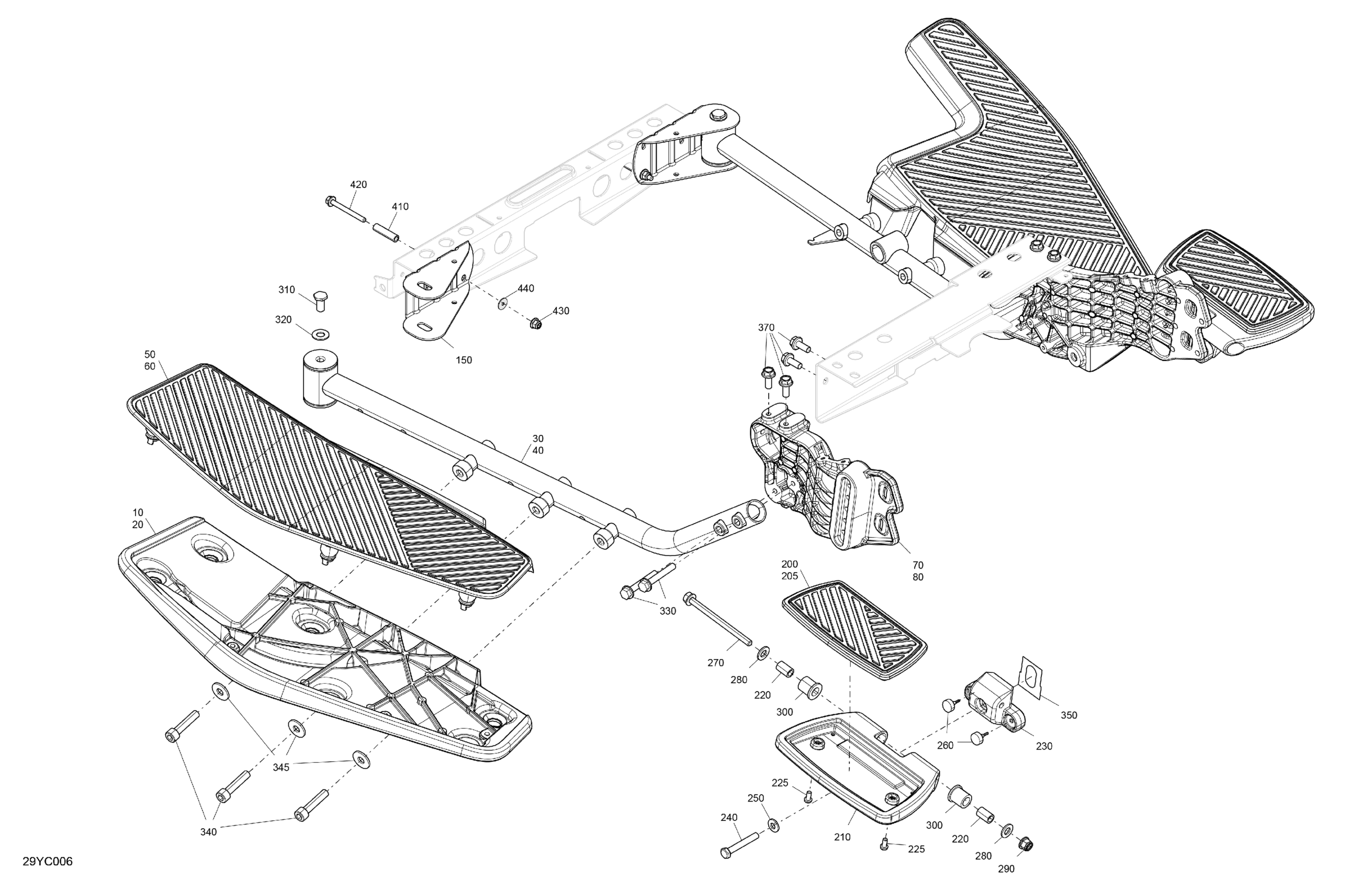

Can-Am RT - Hyper Silver, 2023 Frame - Footrest Diagram

#

Description
Price

10

Carbon Black, LH Front Footrest | Includes 10 to 10b

705013902

$149.99

20

Carbon Black, RH Front Footrest | Includes 20 to 20b

705013903

$149.99

30

RH Front Footrest Support | Includes 30 to 30h

705016620

$149.99

40

LH Front Footrest Support | Includes 40 to 40f

705016619

$149.99

50

RH Front Footrest Pad | Includes 50 to 50a

705014002

$219.99

60

LH Front Footrest Pad | Includes 60 to 60a

705014004

$219.99

70

Carbon Black, RH Rear Footrest Support

705017860

$219.99

80

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705016177

$204.99

150

Tube Support | Includes 150 to 150a

705008950

$22.99

200

RH Rear Footrest Pad | Includes 200 to 200a

705014609

$48.99

205

LH Rear Footrest Pad | Includes 205 to 205a

705014610

$48.99

210

Carbon Black, Rear Footrest | Includes 210 to 210b

705015564

$134.99

220

Bushing

705002153

$11.99

225

Allen Plastite Screw #12

250000099

$2.19

230

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$58.99

240

Hex. Screw M8 X 55

207085556

$1.69

250

Conical Spring Washer M8

234281474

$1.48

260

Rubber Stopper

708000759

$4.19

270

Hex. Flange Screw M8 X 110

230681034

$4.44

280

Washer

503183800

$3.28

290

Hex. Flange Elastic Nut M8

233281434

$2.11

300

Rubber Bushing

705003018

$10.49

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

320

Washer

506152582

$4.55

330

Hex Screw Washer Head M8 X 20

207582054

$3.17

340

Socket Screw Nylon Patch M10 X 45

250001120

$1.37

345

Washer

503191926

$1.58

350

Film, Protective

705014173

$6.50

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

410

Spacer

705008219

$13.49

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50
