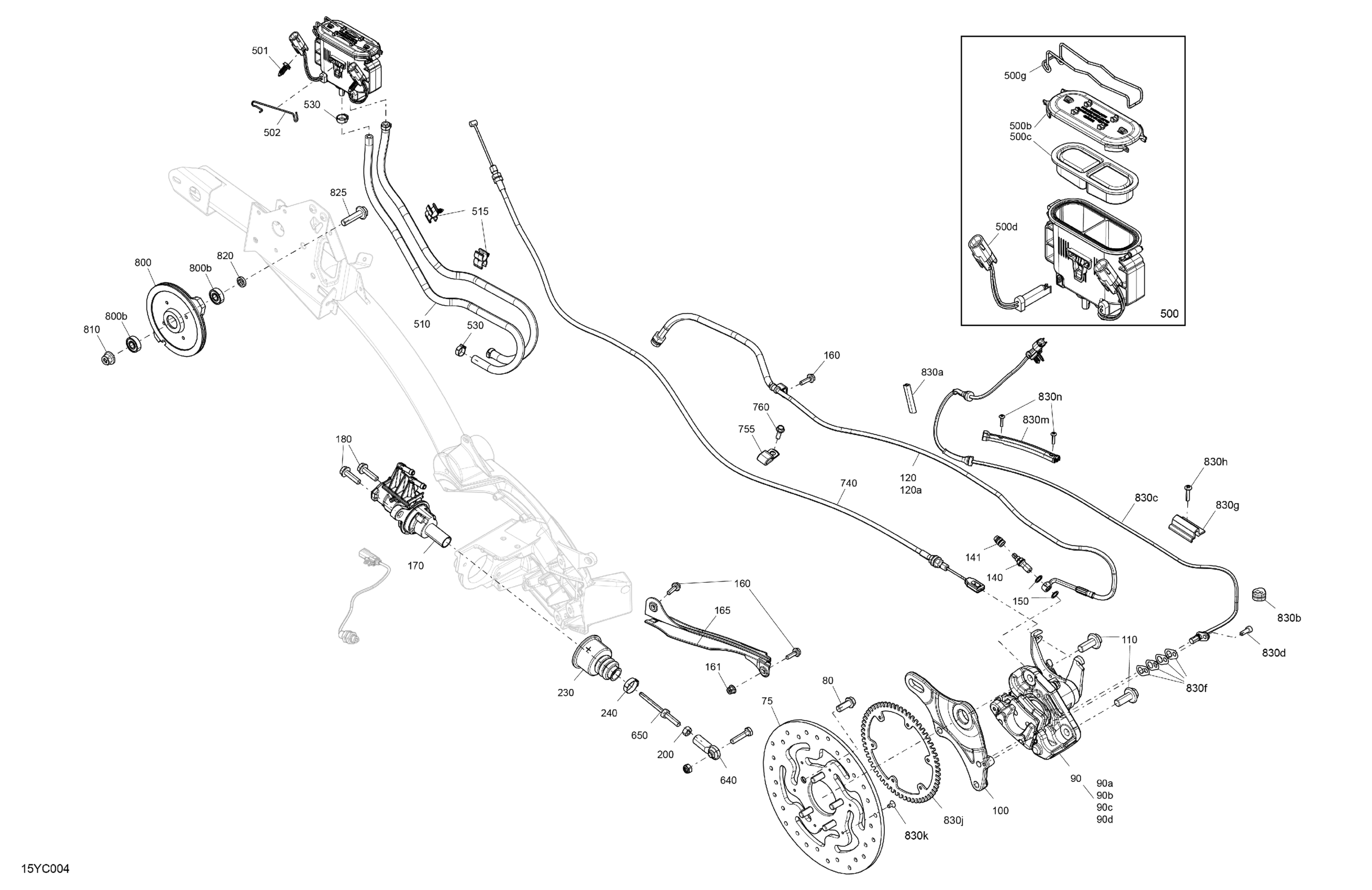

Can-Am RT - Hyper Silver, 2023 Mechanic - Rear Brake Diagram

#

Description
Price

75

Rear Brake Disk

705601632

$244.99

80

Hex. Flange Screw M10 X 25

250001054

$14.21

90

Rear Caliper | Includes 90 to 90d

705600989

$497.99

90a

Brake Pad Kit

219800239

$79.49

90b

Spring/Pin/Clip Kit

219800240

$35.99

90c

Rear Cable Support Kit

219800241

$41.49

90d

Rear Dust Cover

219800242

$32.99

100

Rear Brake Caliper Support

705601746

$56.99

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

120

Flexible Brake Line Rear | Includes 120 to 120a

705601675

$74.99

120a

Clamp

293650256

$5.49

140

Banjo Bolt/ Bleeder

705601201

$19.99

141

Bleeder Bolt Cap

705601190

$4.44

150

Washer

414920600

$1.90

160

Hex. Flange Screw M6 X 20

207662054

$1.01

161

Hex. Flange Elastic Nut M6

233261494

$1.58

165

Cable Guide

706202587

$11.99

170

Tandem Cylinder Master

705600722

$369.99

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

200

Hex. Nut M8

232081414

$0.72

230

Bellow

705600716

$12.10

240

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

500b

Diaphragm Cover Ass'y

219800350

$17.59

500c

Diaphragm Cover Ass'y

219800350

$17.59

500d

Oil Level Sensor

705601073

$54.99

500g

Spindle Lock

705601294

$15.81

500h

Push Nut | Not shown

211100002

$2.19

501

Connector Holder

710002033

$3.39

502

Stopper Spring

705209087

$6.03

510

Formed Hose

705601790

$17.49

515

Hose Support

709000571

$4.65

530

Crimp Clamp, 15.3-706R

293650047

$3.29

640

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

650

Piston Rod

705600468

$23.49

740

Parking Brake Cable

707001058

$66.99

755

Open Clamp

515175507

$1.89

760

Hexagonal Head Screw

210262050

$2.11

800

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

800b

Ball Bearing

705601974

$7.49

810

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

820

Bushing

293900087

$7.90

825

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

830a

Trim 1000Mm Long

219704354

$15.99

830b

Grommet

293720084

$6.09

830c

Speed Sensor

710006982

$83.99

830d

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

830f

Shim

710002023

$2.85

830g

Hose Support

710002145

$7.89

830h

Torx Truss Screw M6 X 30

250000843

$2.11

830j

Sensor Wheel

705601372

$46.99

830k

Socket Head Screw M5 X 10

205851036

$6.77

830m

Protector

710004281

$25.99

830n

Torx Truss Screw M6 X 30

250000843

$2.11
