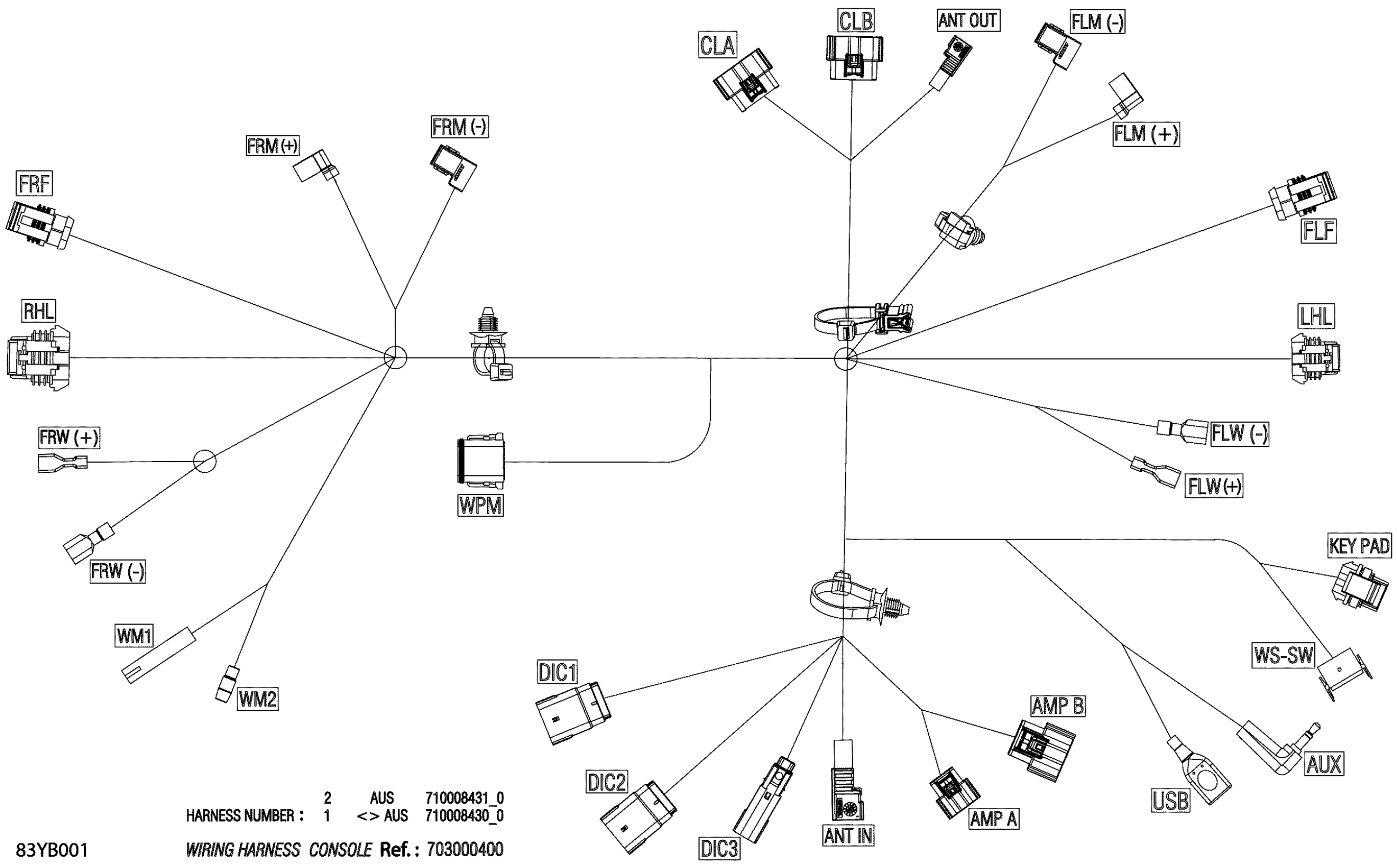

Can-Am RT - Hyper Silver, 2022 Electric - Console Wiring Harness - 710008430 Diagram

#

Description
Price

50

Console Wiring Harness

710008430

$349.99

AMP A

Housing, 12 Circuits

278002994

$13.77

AMP A

Sealing Cap

278002860

$1.79

AMP A

Female Terminal

515178018

$1.19

AMP A

Female Terminal 22 AWG

515178349

$2.29

AMP A

Female Terminal

515178014

$2.39

AMP B

Connector Molex Mx150 12pos

710005905

$9.63

AMP B

Female Terminal

515178018

$1.19

AMP B

Female Terminal 22 AWG

515178349

$2.29

AUX

Audio Jack

278003492

$47.49

AUX

Female Terminal

515178018

$1.19

CL A

Female Housing 20 Circuits

278002858

$22.49

CL A

Female Terminal

515178018

$1.19

CL B

Housing, 20 Circuits

515178303

$24.99

CL B

Female Terminal

515178018

$1.19

CL B

Female Terminal 22 AWG

515178349

$2.29

DIC1

Connector Molex Mx150 16 Pos

710005976

$12.16

DIC1

Sealing Cap

278002860

$1.79

DIC1

Male Terminal

515178013

$3.19

DIC2

Connector Molex Mx150 16 Pos

710005977

$12.16

DIC2

Sealing Cap

278002860

$1.79

DIC2

Male Terminal

515178013

$3.19

DIC3

Male Housing Connector 4 Pins

515178347

$14.28

DIC3

Sealing Cap

278002860

$1.79

DIC3

Male Terminal

515178013

$3.19

FLM -

Female Terminal

409010700

$5.39

FLM +

Female Terminal

710000082

$7.69

FLW -

Female Terminal

409010700

$5.39

FLW +

Female Terminal

710000082

$7.69

FRM -

Female Terminal

409010700

$5.39

FRM +

Female Terminal

710000082

$7.69

FRW -

Female Terminal

409010700

$5.39

FRW +

Female Terminal

710000082

$7.69

KEYPAD

Housing

710001161

$11.12

KEYPAD

Wire Seal

710001163

$7.69

KEYPAD

Female Terminal

710001164

$8.89

LHL

Housing

710000645

$15.36

LHL

Seal

278001482

$3.19

LHL

Female Terminal

710001134

$7.69

RHL

Housing

710000645

$15.36

RHL

Seal

278001482

$3.19

RHL

Female Terminal

710001134

$7.69

USB

USB Connector

710006405

$41.49

USB

Female Terminal

515178018

$1.19

WM1

Insulated Sheath

278001007

$3.58

WM1

Female Terminal

710000421

$6.11

WM2

Insulated Sheath

278001008

$3.28

WM2

Female Terminal

278002261

$7.55

WPM

Female Terminal Housing, 12 Circuits

278002377

$49.99

WPM

Female Lock, 12 Circuits

409015700

$4.55

WPM

Female Terminal

278000632

$2.09

WPM

Female Terminal

278001665

$4.55

WS_SW

4 Circuits Female Housing

515178175

$12.99

WS_SW

Female Terminal

515178302

$5.39
