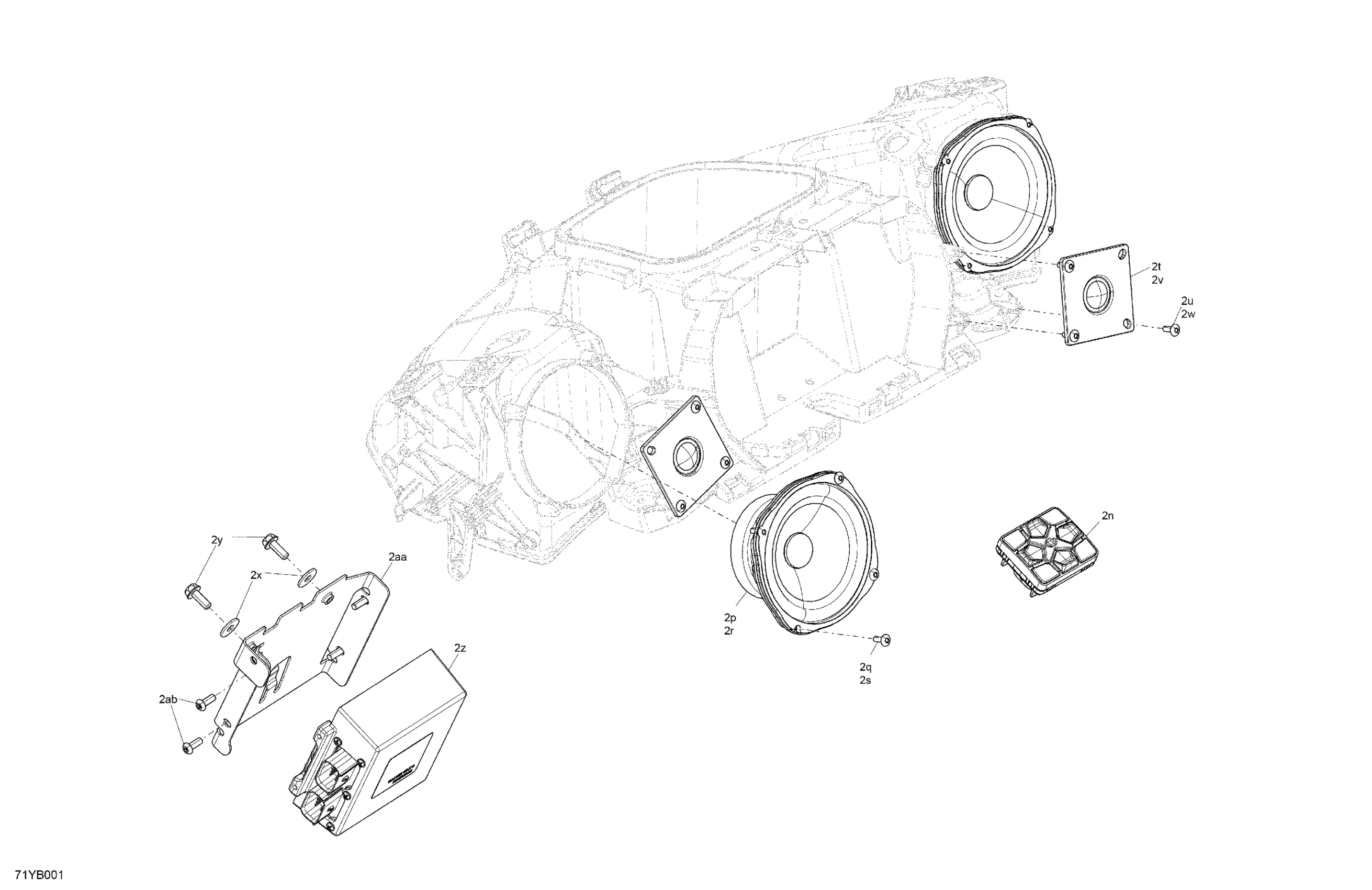

Can-Am RT - Hyper Silver, 2022 Electric - Audio System Diagram

#

Description

Price

2p

4.5" Speaker

710005433

$35.99

2q

Torx Truss PT K40 x 12

250001131

$2.11

2r

4.5" Speaker

710005433

$35.99

2s

Torx Truss PT K40 x 12

250001131

$2.11

2t

Loudspeaker Tweeter

710006796

$21.49

2u

Torx Truss PT K40 x 12

250001131

$2.11

2v

Loudspeaker Tweeter

710006796

$21.49

2w

Torx Truss PT K40 x 12

250001131

$2.11

2n

Audio Keypad

710006793

$88.99

2aa

Amplifier Holder

710005814

$17.49

2x

Stainless Steel Flat Washer

234062670

$2.11

2y

Hex. Flange Screw M6 X 16

210261650

$1.67

2z

Amplifier 6 x 20 Watts

710006566

$455.49

2ab

Screw-Torx Button Head M5 X 14

235551454

$7.51
