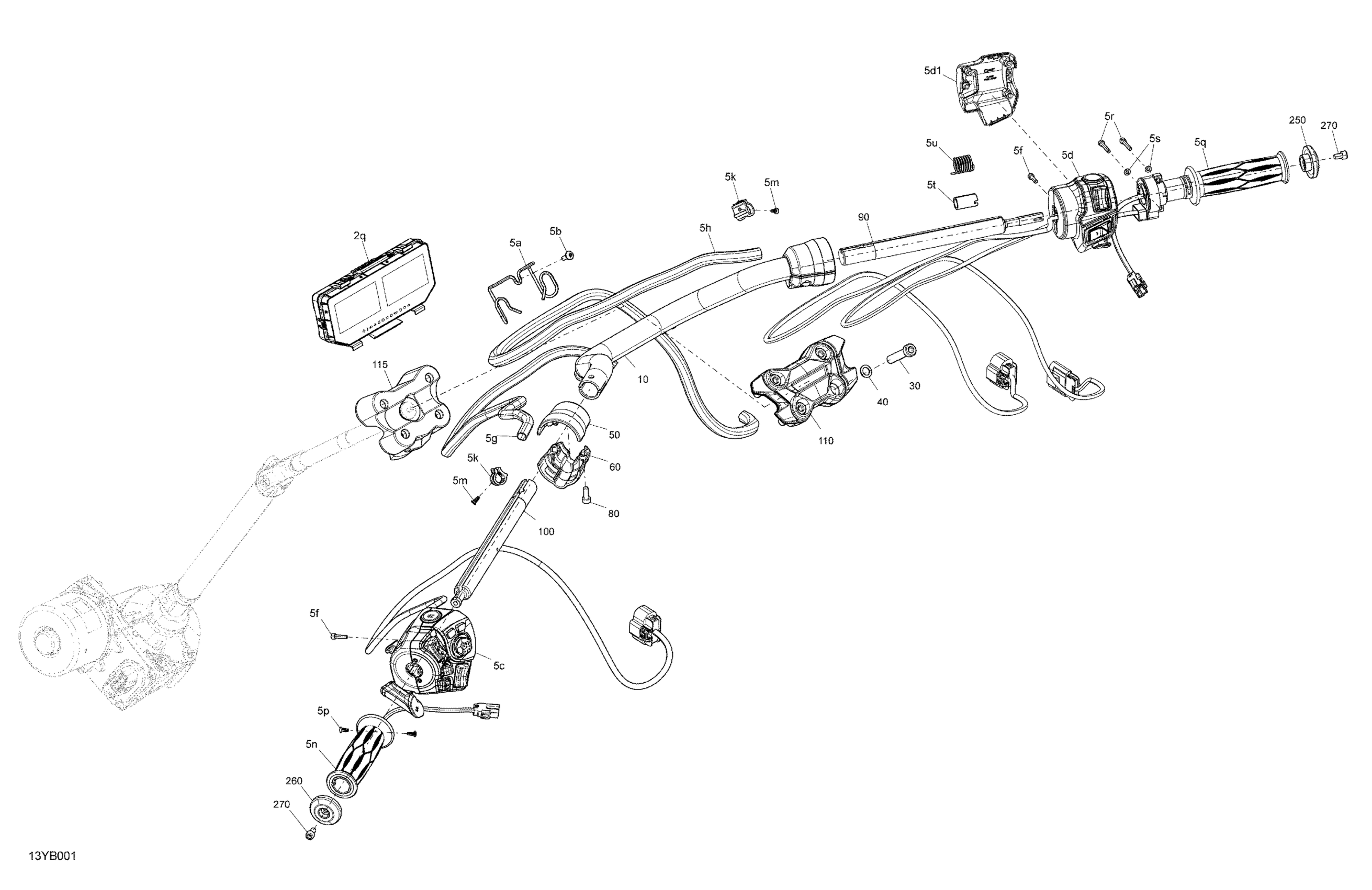

Can-Am RT - Hyper Silver, 2022 Mechanic - Handlebar Diagram

#

Description
Price

10

Carbon Black, Handlebar

709402330

$121.99

30

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

40

Stainless Flat Washer, 10 mm

250200105

$2.11

50

Carbon Black, Upper Clamp

709401914

$93.99

60

Carbon Black, Lower Clamp

709401916

$82.99

80

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

90

RH Handlebar Tube

709401939

$41.49

100

LH HandleBar Tube

709401952

$43.49

110

Handlebar Support

709402377

$65.99

115

Black, Central Handle Support

709401906

$82.99

250

RH Handlebar End Piece

709402591

$24.99

260

LH Handlebar End Piece

709402592

$27.99

270

Screw-Socket Hd.Din.912

205061054

$1.90

2q

Full Size Multifunction Color Gauge

710008709

$1,189.99

5a

Wiring Harness Support

709402446

$15.49

5b

Torx Screw M5 X 14

250000742

$1.47

5c

LH Multi-Function Switch

710008090

$487.49

5d

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

5d1

Housing Switch

710005158

$16.49

5f

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

5g

Braided Sleeve

710004231

$38.99

5h

Braided Sleeve

710004231

$38.99

5k

Wire Guide

709401804

$3.09

5m

Torx Cutting Screw, M4 X 10

250000453

$3.89

5n

Heating Handle Grip

709400625

$195.99

5p

Torx Cutting Screw, M4 X 10

250000453

$3.89

5q

Heated Throttle Grip

709402720

$289.99

5r

Socket Screw, M4 X 25

205042594

$2.11

5s

Flat Washer 4 mm

234040600

$0.55

5t

Bushing

709401801

$2.53

5u

Spring

709401937

$19.99
