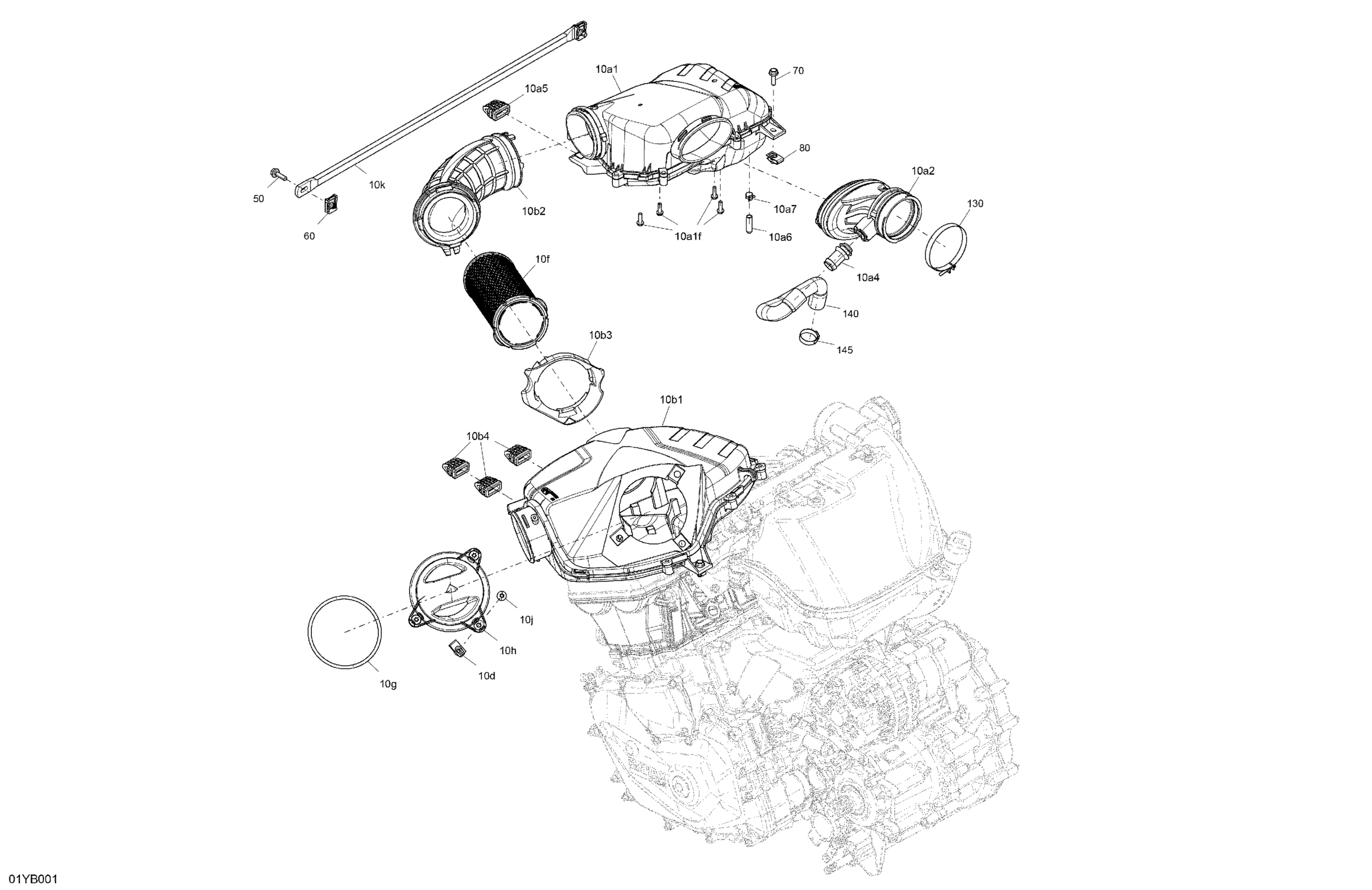

Can-Am RT - Hyper Silver, 2022 Engine - Air Intake Diagram

Description

Price

10a1

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$55.00

10a1f

Hex. Screw M4.8 X 1.8

243141680

$4.69

10a2

Air Intake Adaptor

707800388

$34.00

10a4

Breather Valve

273000234

$10.63

10a5

Rubber Stopper

707800452

$8.00

10a6

Cap Plug

293000105

$3.38

10a7

Spring Clamp

414554800

$0.83

10b1

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$55.00

10b2

Intake Adaptor

707800485

$32.00

10b3

Ring

707800525

$17.00

10b4

Rubber Stopper

707800452

$8.00

10d

Panel Nut M6 X 1.0

250100198

$1.73

10f

Air Filter

707800483

$47.00

10g

O-ring

707800455

$8.00

10h

Cap

707800484

$19.00

10j

Torx Truss Screw M6 X 16

250000348

$1.74

10k

Link Rod | Includes 10k to 10k1

707800432

$24.00

Hex. Flange Screw M6 X 20

207662044

$1.66

Panel Nut M6 X 1.0

250100208

$1.07

Hex. Flange Screw M6 X 20

207662044

$1.66

Panel Nut M6 X 1.0

250100198

$1.73

130

Gemi Clamp

508000346

$9.31

140

Formed Hose

707800824

$19.00

145

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12
