Description

Price

10a

Fuel Tank

709001447

$599.99

10b

Fuel Pump Module

709000370

$372.49

10c

Rollover Valve

709000413

$50.72

10d

Gaz Cap

709000683

$15.82

10f

Seal Kit

219800248

$38.99

20

Grommet

709000582

$4.25

30

Carpet

709000130

$14.49

40a

Elbow Fitting 90°

293710105

$12.15

40b

Fuel Line 7.9 mm, Meter

709000264

$15.99

40c

Oetiker Clamp

293650140

$2.46

40d

Fuel Line 7.9 mm, Meter

709000265

$12.99

40f

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

40f1

Fuel Filter

513034047

$35.99

40f2

Oetiker Clamp

293650125

$3.09

40g

Fuel Line 7.9 mm, Meter

709000264

$15.99

40h

Female Quick Fitting Ass'y

709000684

$15.49

40j

Y Fitting

513034117

$5.84

40k

Formed Hose

709001199

$15.99

40m

Quick Connect Pipe Fitting

293710192

$12.49

40n

Tubing 16 Mm 1000Mm Long

219704408

$7.15

40p

Tubing 16 Mm 1000Mm Long

219704408

$7.15

60a

Bleed Valve

709000443

$65.64

60b

Hose, 880MM

709000656

$31.99

60c

Vapor Canister

709000090

$84.30

60d

Hose, 275MM

709000657

$12.99

60f

Hose, 238MM

709001112

$28.99

60g

Hose, 1275MM

709000658

$30.49

60h

Crimp Clamp, 15.3-706R

293650047

$3.03

60j

Oetiker Gear Clamp

293650025

$2.82

60k

Oetiker Clamp

293650140

$2.46

70

Oetiker Gear Clamp

293650025

$2.82

80

Hex. Flange Screw M6 X 25

207662544

$0.61

100

Bushing

709001287

$2.89

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

140

Universal Spring Clamp

513033029

$4.96

180

Fuel Filter Support

709000452

$19.49

190

Hex. Flange Screw M6 X 25

207662544

$0.61

195

Panel Nut M6 X 1.0

250100198

$1.99

200

Open Clamp

513033047

$4.73

210

Torx Truss Screw M6 X 12

250000767

$1.91

215

Domed Hexagonal Nut Din.1587

232361453

$1.55

220

Heat Shield

709001374

$20.99

230

Heat Shield

709001375

$38.99

320

Open Clamp

709000057

$4.78

330

Hex. Flange Screw M6 X 12

210261250

$1.79

340

Hose Support

709000571

$4.30

550

Hose Support

709000814

$6.66

560

Panel Fastener

518321954

$5.85

700

Air Filter

709000524

$41.01

710

Spring Clamp

513033865

$4.49

730

Tuflock Phillips Plastic Screw

414745900

$1.49

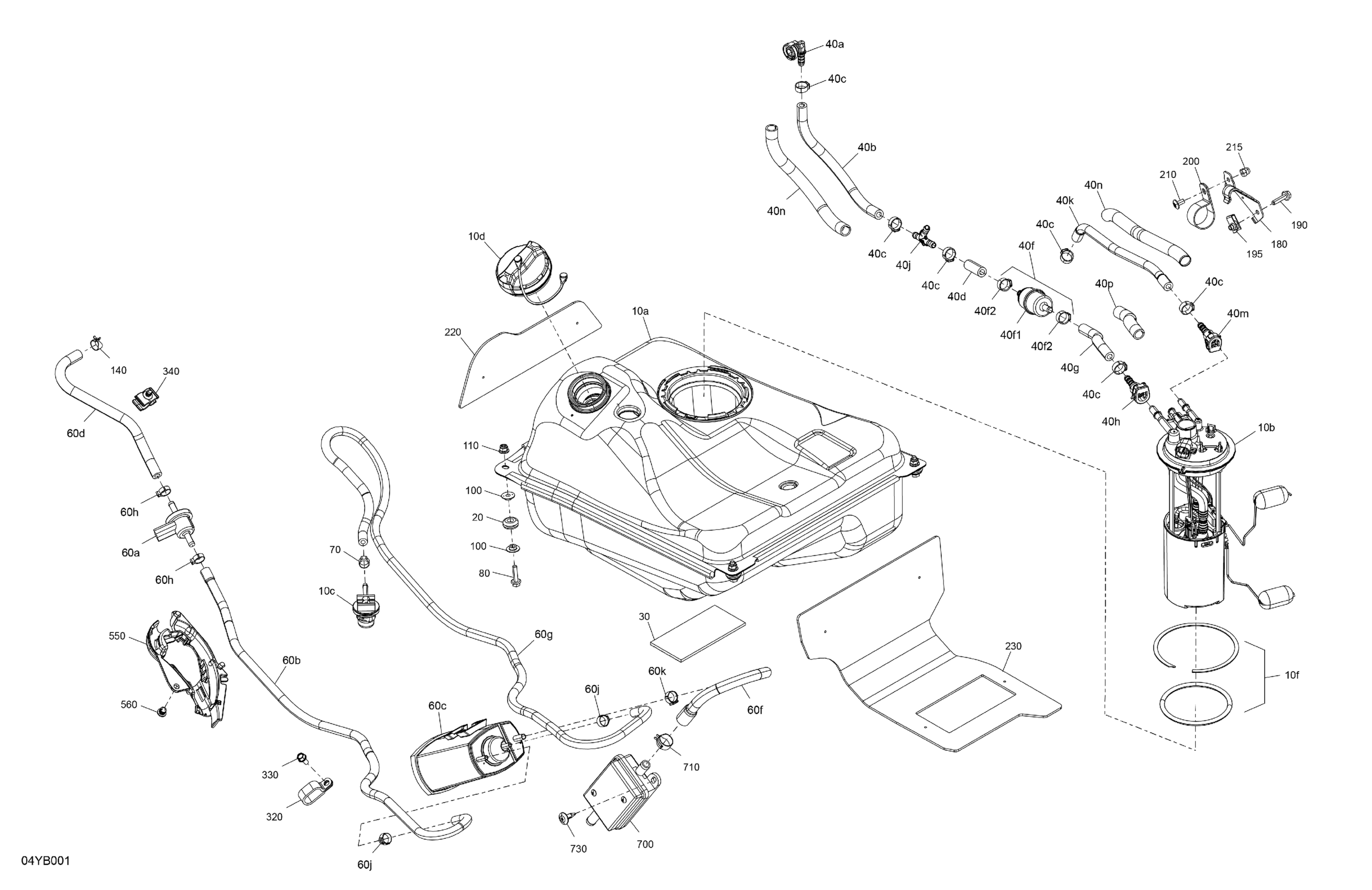

Can-Am RT - Hyper Silver, 2022 Engine - Fuel Diagram

Fuel Tank

Fuel Pump Module

Rollover Valve

Gaz Cap

Seal Kit

Grommet

Carpet

Elbow Fitting 90°

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Fuel Filter Ass'y | Includes 40f to 40f2

Fuel Filter

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Y Fitting

Formed Hose

Quick Connect Pipe Fitting

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Bleed Valve

Hose, 880MM

Vapor Canister

Hose, 275MM

Hose, 238MM

Hose, 1275MM

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Oetiker Clamp

Oetiker Gear Clamp

Hex. Flange Screw M6 X 25

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Universal Spring Clamp

Fuel Filter Support

Hex. Flange Screw M6 X 25

Panel Nut M6 X 1.0

Open Clamp

Torx Truss Screw M6 X 12

Domed Hexagonal Nut Din.1587

Heat Shield

Heat Shield

Open Clamp

Hex. Flange Screw M6 X 12

Hose Support

Hose Support

Panel Fastener

Air Filter

Spring Clamp

Tuflock Phillips Plastic Screw
