Description

Price

A

Hex. Flange Elastic Nut M6

233261494

$1.58

B

Hex. Flange Screw M6 X 25

207662554

$1.48

C

Stainless Steel Flat Washer

234062670

$2.11

10

LH Rear Storage Box

708303846

$88.99

11

Insert

291003793

$3.56

12

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

13

Torx Screw K50 X 16

250000720

$1.69

14

Hex. Flange Screw M6 X 16

210261650

$1.67

15

Stainless Steel Flat Washer

234062670

$2.11

17

Stainless Steel Flat Washer

234062670

$2.11

20

RH Rear Storage Box

708303976

$92.99

21

Insert

291003793

$3.56

22

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

23

Torx Screw K50 X 16

250000720

$1.69

24

Hex. Flange Screw M6 X 16

210261650

$1.67

25

Stainless Steel Flat Washer

234062670

$2.11

27

Stainless Steel Flat Washer

234062670

$2.11

40

Ball Head Stud

250300016

$14.81

50

Hex. Flange Elastic Nut M8

233281414

$1.47

170

RH Latch Lid Ass'y

708304019

$154.99

170a

Cable

708003379

$48.99

175

LH Control

708301222

$43.99

176

Panel Nut M6 X 1.0

250100208

$1.46

177

Torx Screw M6 X 20

250000722

$1.68

180

LH Latch Lid Ass'y

708304020

$154.99

180a

Cable

708003379

$48.99

185

RH Control

708301697

$43.99

186

Panel Nut M6 X 1.0

250100208

$1.46

187

Torx Screw M6 X 20

250000722

$1.68

200

Torx Head Screw M6 X 16

250000717

$2.11

240

Hinge

708300006

$25.99

250

Torx Truss Screw M6 X 12

250000767

$2.00

260

Back Plate Support

708300129

$11.49

270

Retaining Plate

708304009

$10.49

300

Shock Absorber

708303322

$79.99

360a

Seal, 1PC = 3M

293830188

$39.99

370a

Seal, 1PC = 3M

293830188

$39.99

410

Chalk, LH Rear Box Cover | Models Chalk

708304089

$369.99

415

LH Rear Box Trim

708303002

$129.99

417

Edge Clip

517302785

$0.88

425

LH Interior Box Cover

708303745

$82.99

426

Striker Cover

708303255

$6.89

427

Hex. Forming Screw M5 X 16

210251650

$1.15

428

Red, Reflector

705015551

$9.59

428

Amber Reflector

705015552

$9.19

429

Edge Clip

517302785

$0.88

430

Torx Truss PT K40 x 12

250001131

$2.11

431

Panel Nut M6 X 1.0

250100208

$1.46

432

Torx Head Screw M6 X 16

250000717

$2.11

440

Chalk, RH Rear Box Cover | Models Chalk

708304088

$369.99

445

RH Rear Trim Box

708303003

$129.99

447

Edge Clip

517302785

$0.88

455

RH Interior Box Cover

708303746

$82.99

456

Striker Cover

708303255

$6.89

457

Hex. Forming Screw M5 X 16

210251650

$1.15

458

Red, Reflector

705015551

$9.59

458

Amber Reflector

705015552

$9.19

459

Edge Clip

517302785

$0.88

460

Torx Truss PT K40 x 12

250001131

$2.11

461

Panel Nut M6 X 1.0

250100208

$1.46

462

Torx Head Screw M6 X 16

250000717

$2.11

470

Ball Joint

250300064

$13.49

580

LH Rear Holding Handle

708003456

$105.99

590

RH Rear Holding Handle

708003457

$105.99

591

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

592

Flat Washer 8 mm

234082410

$1.47

600

Fairing Over L

708303973

$94.99

601

Plastic Rivet

293150248

$2.19

602

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

603

LH Lever Trim

708303323

$5.39

604

Torx Screw K50 X 25

250001110

$1.99

605

LH Front Armrest Trim

708303393

$5.69

606

LH Rear Arm Rest Trim

708303749

$5.69

609

Hex. Flange Nut M6

233161414

$2.11

610

Fairing Over R

708303974

$94.99

611

Plastic Rivet

293150248

$2.19

612

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

613

RH Lever Trim

708303324

$5.99

614

Torx Screw K50 X 25

250001110

$1.99

615

RH Front Armrest Trim

708303394

$5.69

616

RH Rear Arm Rest Trim

708303750

$5.69

619

Hex. Flange Nut M6

233161414

$2.11

1000

Retainer Cable

708300385

$38.99

1010

Torx Head Screw M6 X 16

250000717

$2.11

1020

Flat Washer, Stainless/Neoprene

211200055

$0.73

1030

Hex. Nut M6

232061414

$0.53

1050

Heat Shield

705004173

$47.99

1150

LH Access Cover

708303754

$16.99

1151

Torx Screw K50 X 16

250000720

$1.69

1160

RH Access Cover

708303755

$17.49

1161

Torx Screw K50 X 16

250000720

$1.69

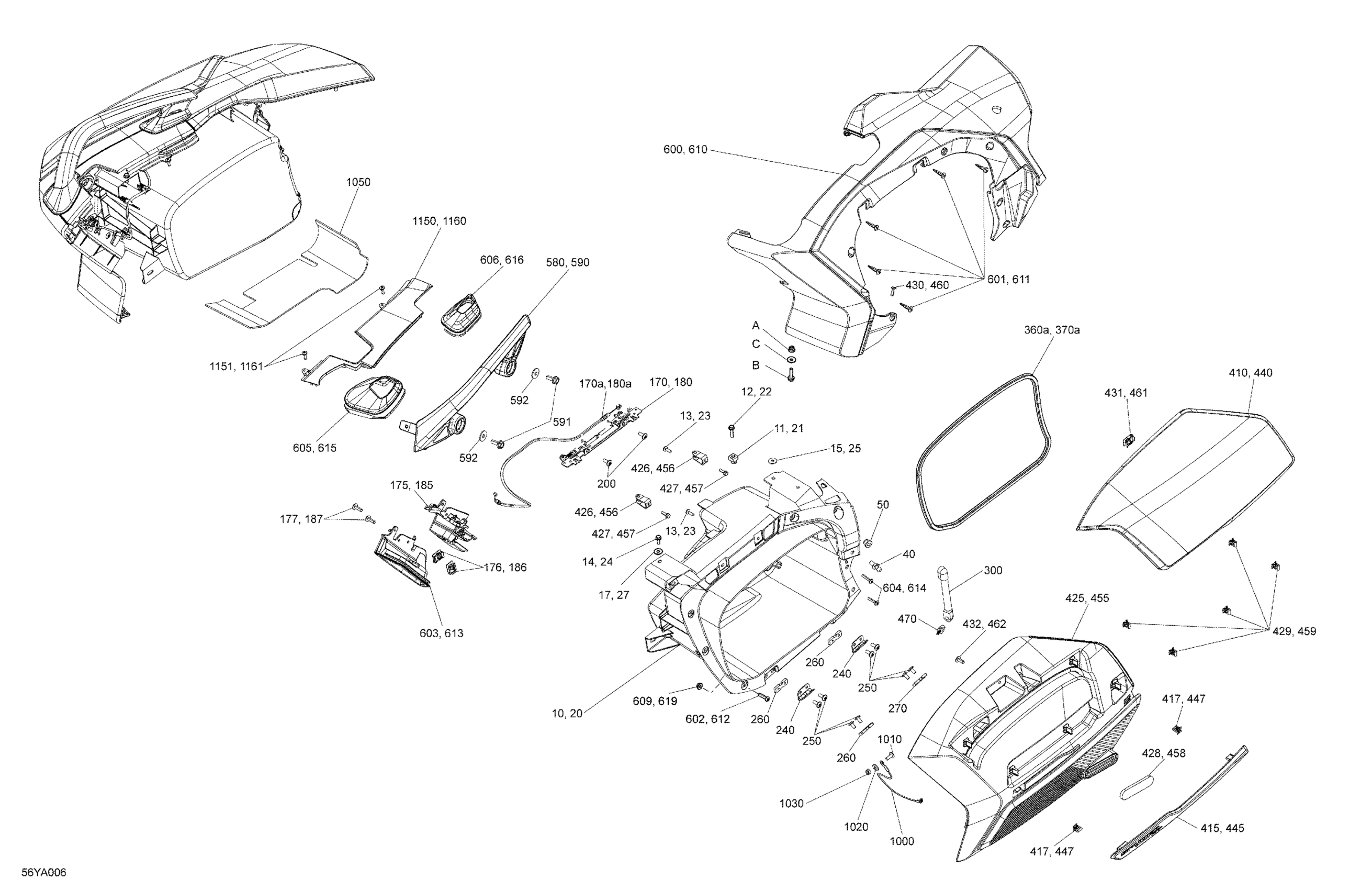

Can-Am On-Road 001 - RT - Chalk Metallic, 2021 07- Body - Side Cargo Diagram

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Stainless Steel Flat Washer

LH Rear Storage Box

Insert

Hex. Flange Screw M6.81 X 25, Plastite

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

Stainless Steel Flat Washer

RH Rear Storage Box

Insert

Hex. Flange Screw M6.81 X 25, Plastite

Torx Screw K50 X 16

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

Stainless Steel Flat Washer

Ball Head Stud

Hex. Flange Elastic Nut M8

RH Latch Lid Ass'y

Cable

LH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

LH Latch Lid Ass'y

Cable

RH Control

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Head Screw M6 X 16

Hinge

Torx Truss Screw M6 X 12

Back Plate Support

Retaining Plate

Shock Absorber

Seal, 1PC = 3M

Seal, 1PC = 3M

Chalk, LH Rear Box Cover | Models Chalk

LH Rear Box Trim

Edge Clip

LH Interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Red, Reflector

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Head Screw M6 X 16

Chalk, RH Rear Box Cover | Models Chalk

RH Rear Trim Box

Edge Clip

RH Interior Box Cover

Striker Cover

Hex. Forming Screw M5 X 16

Red, Reflector

Amber Reflector

Edge Clip

Torx Truss PT K40 x 12

Panel Nut M6 X 1.0

Torx Head Screw M6 X 16

Ball Joint

LH Rear Holding Handle

RH Rear Holding Handle

Hex. Flange Screw M8 X 20, Scotch Grip

Flat Washer 8 mm

Fairing Over L

Plastic Rivet

Torx Screw M6 X 25, Scotch Grip

LH Lever Trim

Torx Screw K50 X 25

LH Front Armrest Trim

LH Rear Arm Rest Trim

Hex. Flange Nut M6

Fairing Over R

Plastic Rivet

Torx Screw M6 X 25, Scotch Grip

RH Lever Trim

Torx Screw K50 X 25
