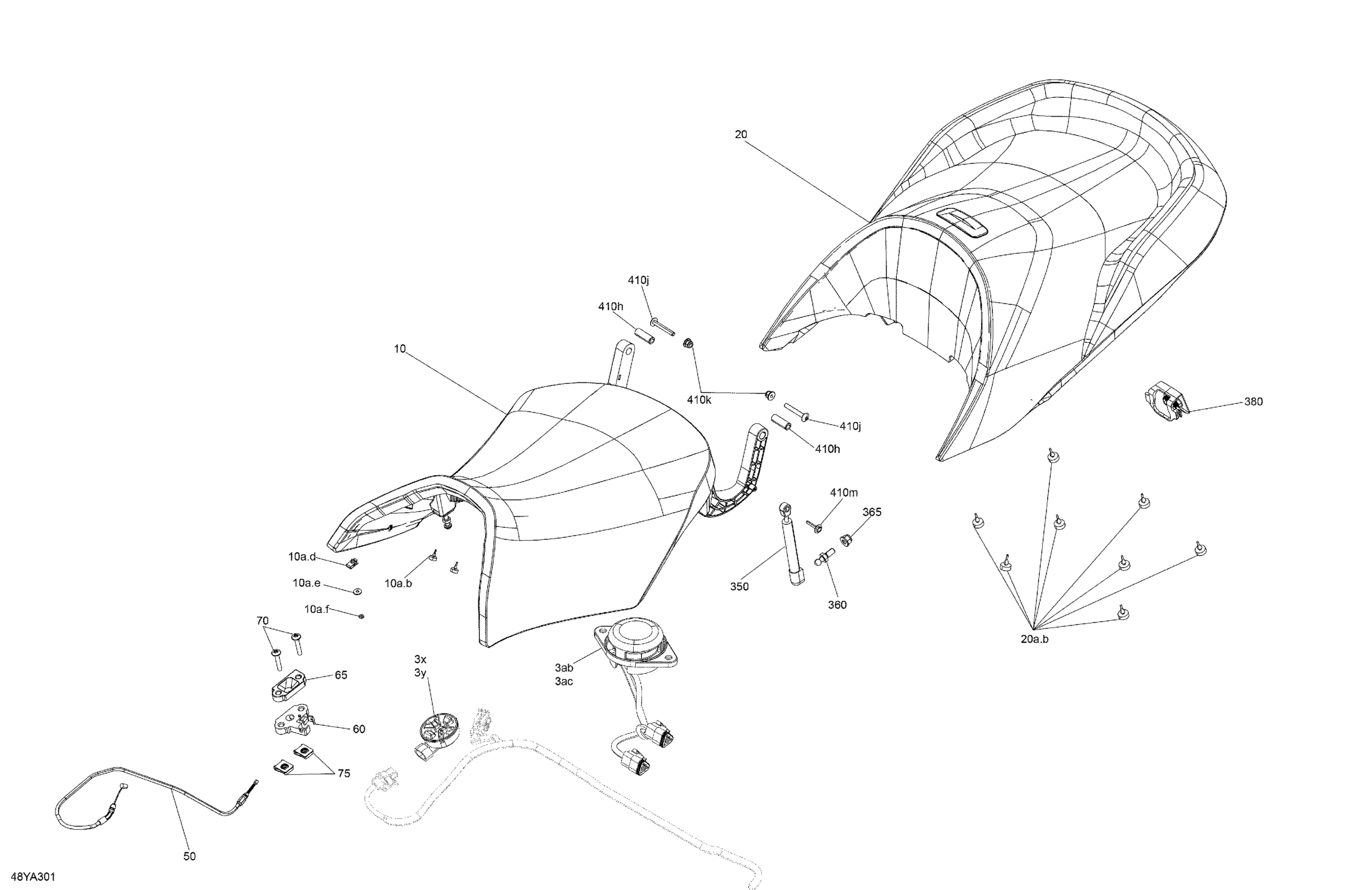

Can-Am RT - Chalk Metallic, 2021 Body - Seat Diagram

#

Description
Price

3ab

Passenger Detection Switch

710008103

$72.28

3ac

Passenger Detection Switch

710008103

$72.28

3x

RH Passenger Radio Keypad

710006797

Unavailable

3y

RH Passenger Radio Keypad

710006797

Unavailable

10

Driver Seat Ass'y

708002946

$620.00

10a.b

Rubber Stopper

708000759

$3.61

10a.d

Panel Nut M6 X 1.0

250100198

$1.73

10a.e

Flat washer M6

250200164

$0.83

10a.f

Hex. Nut M6

232160600

$1.08

20

Passenger Seat Ass'y | Includes 20 to 20c1

708003312

$410.00

20

Passenger Seat Ass'y | Includes 20 TO 20a2

708002951

$310.00

20a.b

Rubber Stopper

708000759

$3.61

20a.b

Rubber Stopper

708000759

$3.61

50

Actuator Cable

517307507

$11.00

60

Latch

705007379

$29.00

65

Trim Latch

708003260

$5.00

70

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

75

Panel Nut M6 X 1.0

250100208

$1.07

350

Shock Absorber

708003221

$84.00

360

Ball Head Stud

250300039

$6.15

365

Hex. Flange Elastic Nut M8

233281414

$1.14

380

Connector Cap | Includes 380 to 380d

708303050

$14.00

410h

Spacer

708000664

$6.00

410j

Torx Screw M6 X 45

250000748

$1.56

410k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

410m

Plastite Screw Type K-40, M4 X 25

250000101

$2.87
