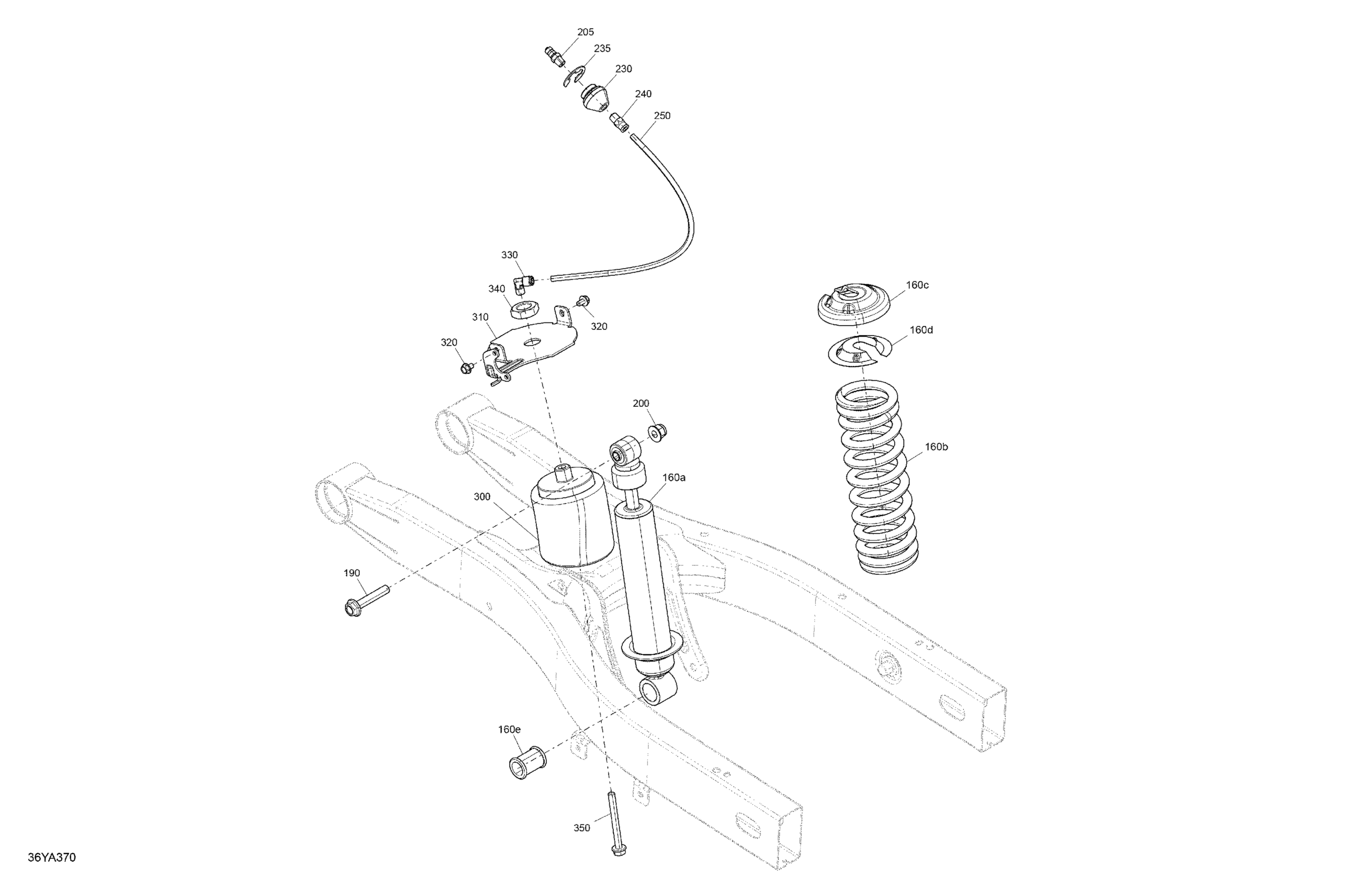

Can-Am RT - Chalk Metallic, 2021 Suspension - Rear Shocks Diagram

Description

Price

160a

Shock Absorber

706001552

$116.00

160b

Shock Absorber Spring

706001542

$61.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160e

Urethane Cushion

503191609

$18.00

190

Hex. Flange Screw M10 X 55

207605554

$8.00

200

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

205

Air Valve

706002797

$15.22

230

Pneumatic Connector

706004028

$19.00

235

Circlip

293370123

$3.00

240

Connector

706000869

$33.05

250

Hose 4.32Mm 3000Mm Long

219704415

$44.17

300

Air Damper Kit

219800175

$291.00

310

Support Plate

706001082

$19.00

320

Hex. Forming Screw M6 X 10

210261050

$1.42

330

Elbow 90°

706001018

$29.00

340

Jam Nut M20

250100119

$4.00

350

Hex. Flange Screw M8 X 75

207687544

$7.23
