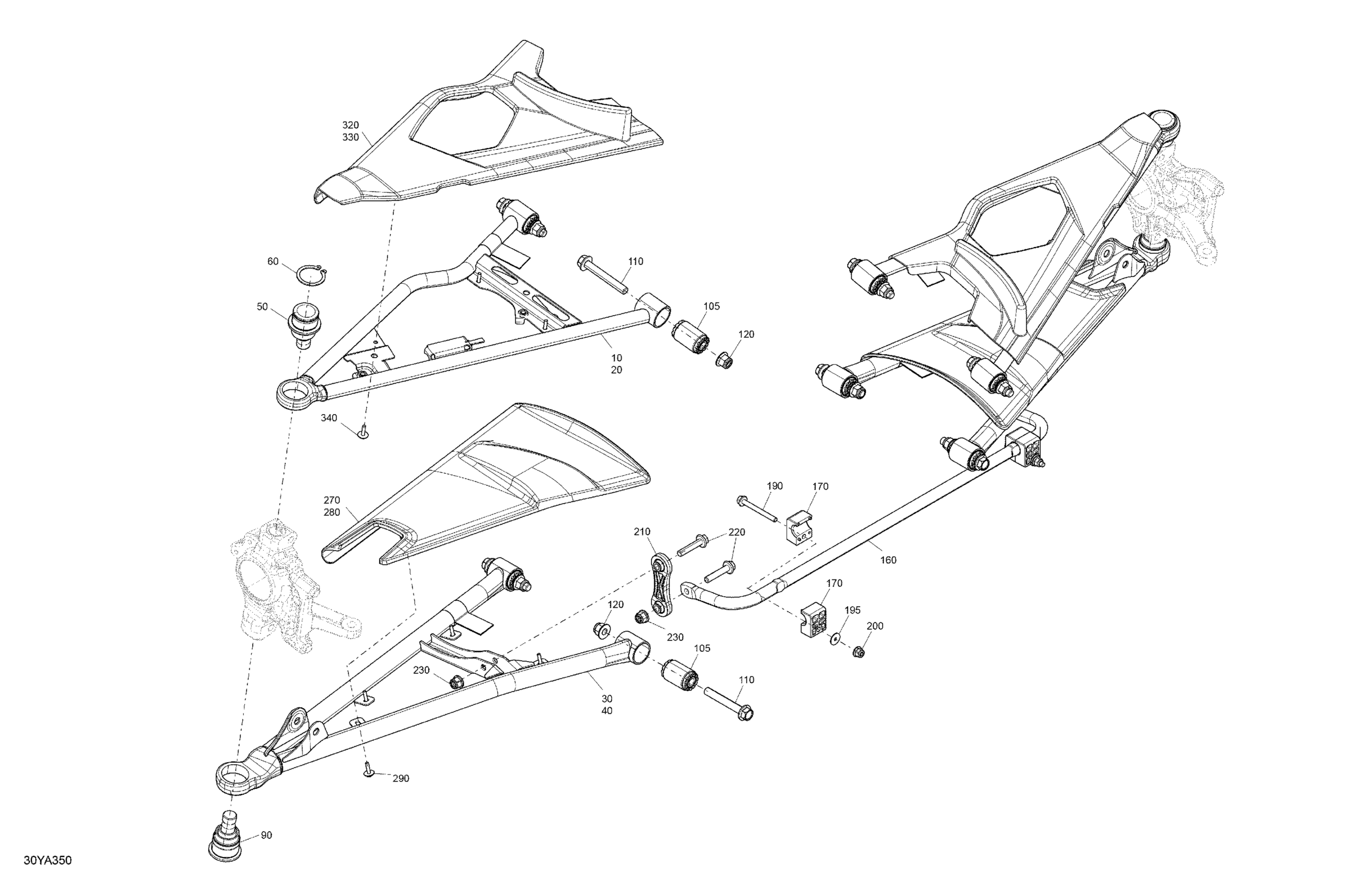

Can-Am RT - Chalk Metallic, 2021 Suspension - Front Diagram

#

Description
Price

10

LH Upper Suspension Arm

706203433

$158.99

20

RH Upper Suspension Arm

706203435

$158.99

30

LH Lower Suspension Arm

706201733

$158.99

40

RH Lower Suspension Arm

706201734

$158.99

50

Ball Joint

706202507

$61.99

60

Circlip

293370035

$2.64

90

Ball Joint

706202508

$42.49

105

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$4.29

120

Flange Elastic Nut M10

233201466

$3.17

160

Sway Bar

706202800

$90.99

170

Stabilizer Bushing

706201391

$9.21

190

Hex. Flange Screw M6 X 60

250000778

$4.44

195

Washer M6

250200029

$2.50

200

Hex. Flange Elastic Nut M6

233261466

$2.00

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.11

230

Elastic Flange Nut M8

233281464

$1.01

270

LH Lower Air Deflector

706201319

$22.99

280

RH Lower Air Deflector

706201320

$22.99

290

Screw M4 X 16

250000725

$3.49

320

LH Upper Air Deflector

706204026

$24.99

330

RH Upper Air Deflector

706204027

$24.99

340

Screw M4 X 16

250000725

$3.49
