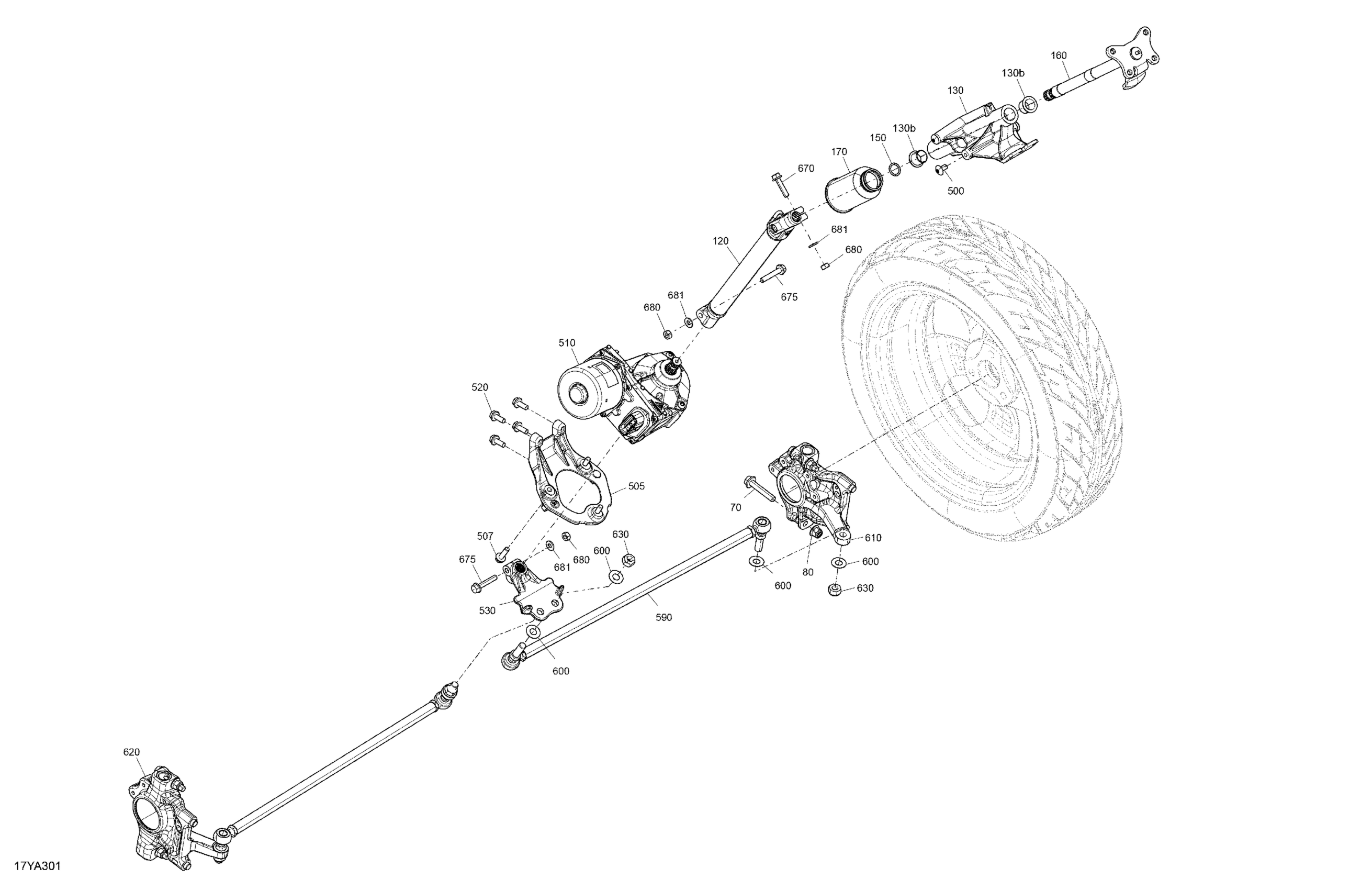

Can-Am RT - Chalk Metallic, 2021 Mechanic - Steering Column Diagram

Description

Price

Hex. Flange Screw M10 X 55

207605554

$7.62

Flange Elastic Nut M10

233201466

$3.17

120

Steering Column

709402393

$154.99

130

Steering Column Support | Included 130 to 130b

709402496

$129.99

130b

Steering Bushing

709402725

$3.28

150

O-Ring

709000089

$15.89

160

Upper Steering Column

709401397

$159.99

170

Bellows

709400790

$13.49

500

Torx Screw M8 X 16

250000751

$6.11

505

DPS Support

709401772

$43.99

507

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

510

Power Steering Ass'y

709402730

$1,791.49

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

530

Pitman Arm

709401760

$37.99

590

Tie Rod Ass'y

709401821

$158.99

600

Hardened Washer

706200281

$2.85

610

RH Knuckle Assembly

709402236

$190.49

620

LH Knuckle Assembly

709402233

$195.99

630

Hex. Elastic Hex. Nut M12

250100089

$0.46

670

Hex. Flange Screw M8 X 35

250001021

$4.44

675

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

680

Hex. Nut M8

232081417

$3.09

681

Washer

503189157

$3.28
