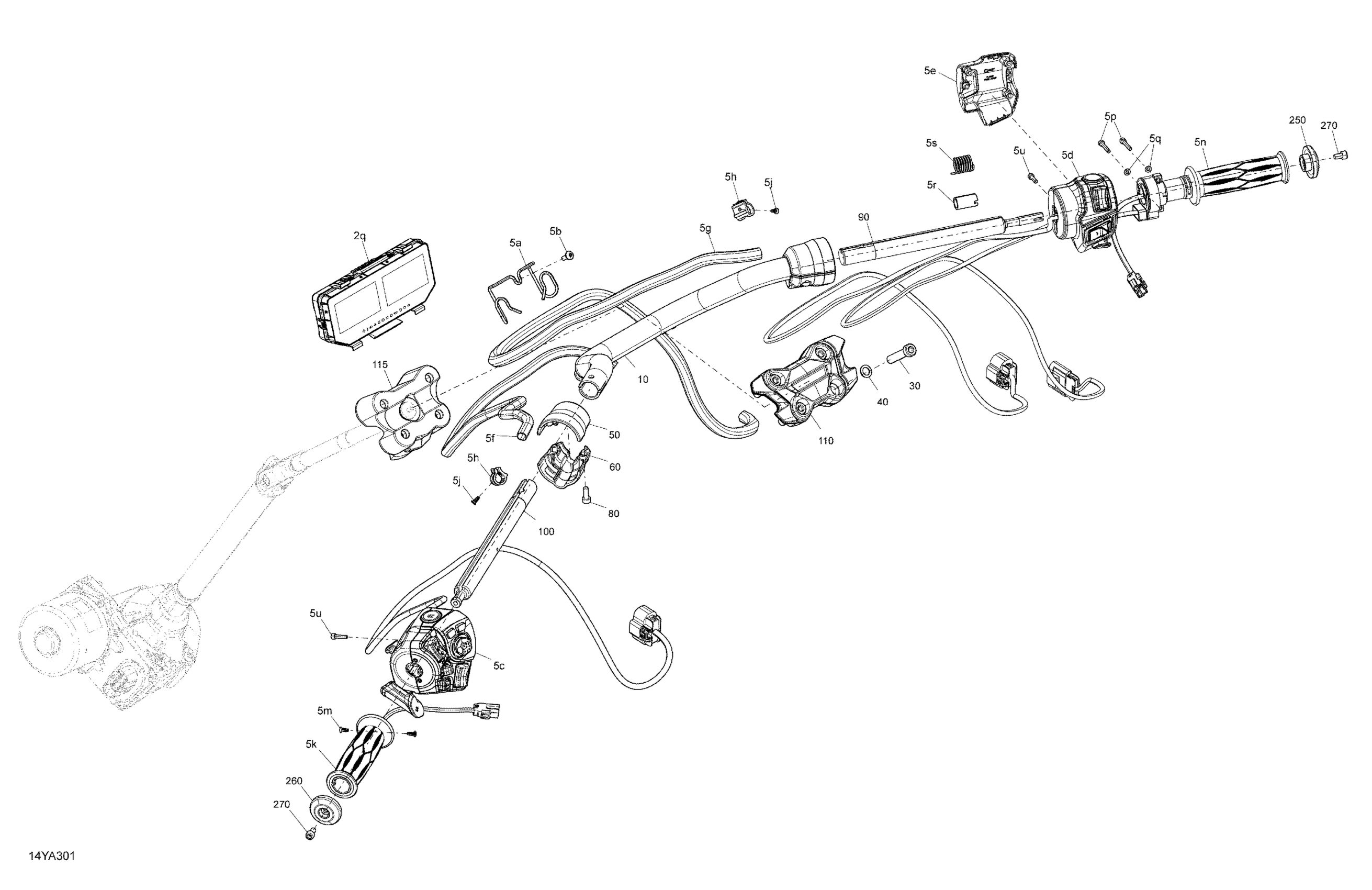

Can-Am RT - Chalk Metallic, 2021 Mechanic - Handlebar Diagram

#

Description
Price

2q

Full Size Color Multifunction Gauge

710007796

$1,190.00

5a

Wiring Harness Support

709402446

$15.00

5b

Torx Screw M5 X 14

250000742

$1.20

5c

LH Multi-Function Switch

710008090

$487.00

5d

RH Switch Housing | Included 5d to 5d1

710004583

$310.00

5e

Housing Switch

710005158

$16.00

5f

Braided Sleeve

710004231

$39.00

5g

Braided Sleeve

710004231

$39.00

5h

Wire Guide

709401804

$3.00

5j

Torx Cutting Screw, M4 X 10

250000453

$4.00

5k

Heating Handle Grip

709400625

$196.00

5m

Torx Cutting Screw, M4 X 10

250000453

$4.00

5n

Heated Throttle Grip

709402720

$290.00

5p

Socket Screw, M4 X 25

205042594

$2.00

5q

Flat Washer 4 mm

234040600

$0.46

5r

Bushing

709401801

$3.00

5s

Spring

709401937

$20.00

5u

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

10

Carbon Black, Handlebar

709402330

$122.00

30

Thin Socket Screw, Scotch Grip, M10

250000997

$7.00

40

Stainless Flat Washer, 10 mm

250200105

$1.74

50

Carbon Black, Upper Clamp

709401914

$94.00

60

Carbon Black, Lower Clamp

709401916

$83.00

80

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

90

RH Handlebar Tube

709401939

$41.00

100

LH HandleBar Tube

709401952

$43.00

110

Handlebar Support

709402377

$66.00

115

Black, Central Handle Support

709401906

$83.00

250

RH Handlebar End Piece

709402591

$25.00

260

LH Handlebar End Piece

709402592

$28.00

270

Screw-Socket Hd.Din.912

205061054

$2.00
