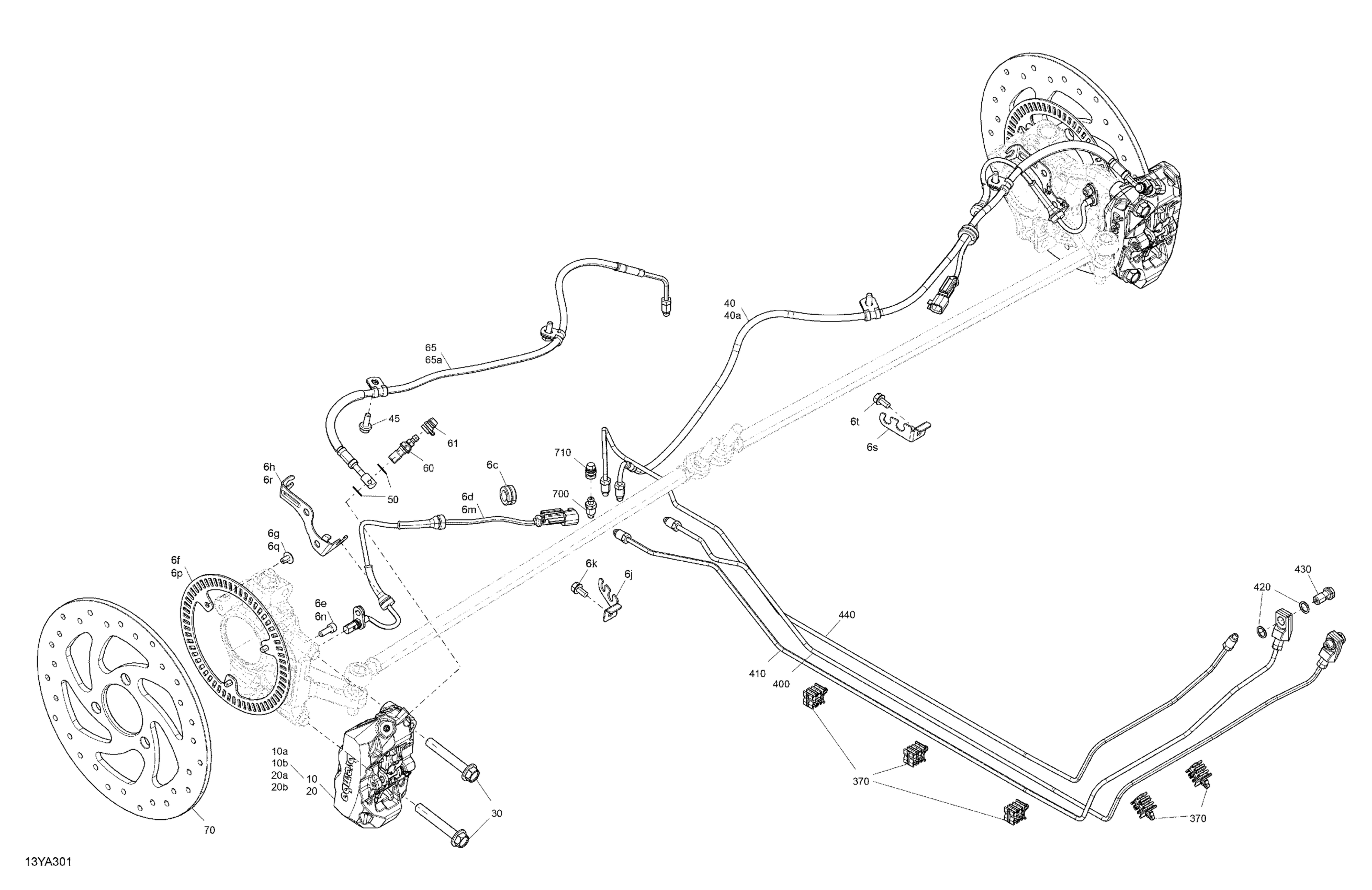

Can-Am RT - Chalk Metallic, 2021 Mechanic - Front Brakes Diagram

#

Description
Price

6c

Grommet

293720095

$7.69

6d

Speed Sensor

710006981

$83.99

6e

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

6f

Front Sensor Wheel

705601512

$43.99

6g

Torx-truss M/s M6 X 10

250000995

$4.44

6h

LH Support Wire

710004860

$2.29

6j

Speed Sensor Holder

710003156

$11.49

6k

Hex. Flange Screw M6 X 12

210261250

$1.90

6m

Speed Sensor

710006981

$83.99

6n

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

6p

Front Sensor Wheel

705601512

$43.99

6q

Torx-truss M/s M6 X 10

250000995

$4.44

6r

RH Support Wire

710004861

$2.29

6s

Speed Sensor Holder

710003157

$11.49

6t

Hex. Flange Screw M6 X 12

210261250

$1.90

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.49

10a

Brake Pad Kit

219800237

$79.49

10b

Spring/Pin/Clip Kit

219800238

$26.99

20

RH Front Caliper | Includes 20 to 20b

705600988

$381.49

20b

Spring/Pin/Clip Kit

219800238

$26.99

20a

Brake Pad Kit

219800237

$79.49

30

Hex Flange Screw M10 X 65

207506556

$6.77

40

RH Front Flexible Brake Line | Includes 40 to 40a

705601774

$61.49

40a

Clamp

293650256

$5.49

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

50

Washer

414920600

$1.90

60

Banjo Bolt/ Bleeder

705601201

$19.99

61

Bleeder Bolt Cap

705601190

$4.44

65

LH Front Flexible Brake Line | Includes 65 to 65a

705601773

$61.49

65a

Clamp

293650256

$5.49

70

Front Brake Disk

705601631

$153.99

370

Anchorage Tube

705601987

$5.18

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$31.99

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$31.99

420

Washer

414920600

$1.90

430

Banjo Bolt

507032551

$5.61

440

Rear Brake Rigid Tube

705601159

$31.99

700

Bleeder Screw

705600502

$11.11

710

Bleeder Bolt Cap

705601190

$4.44
