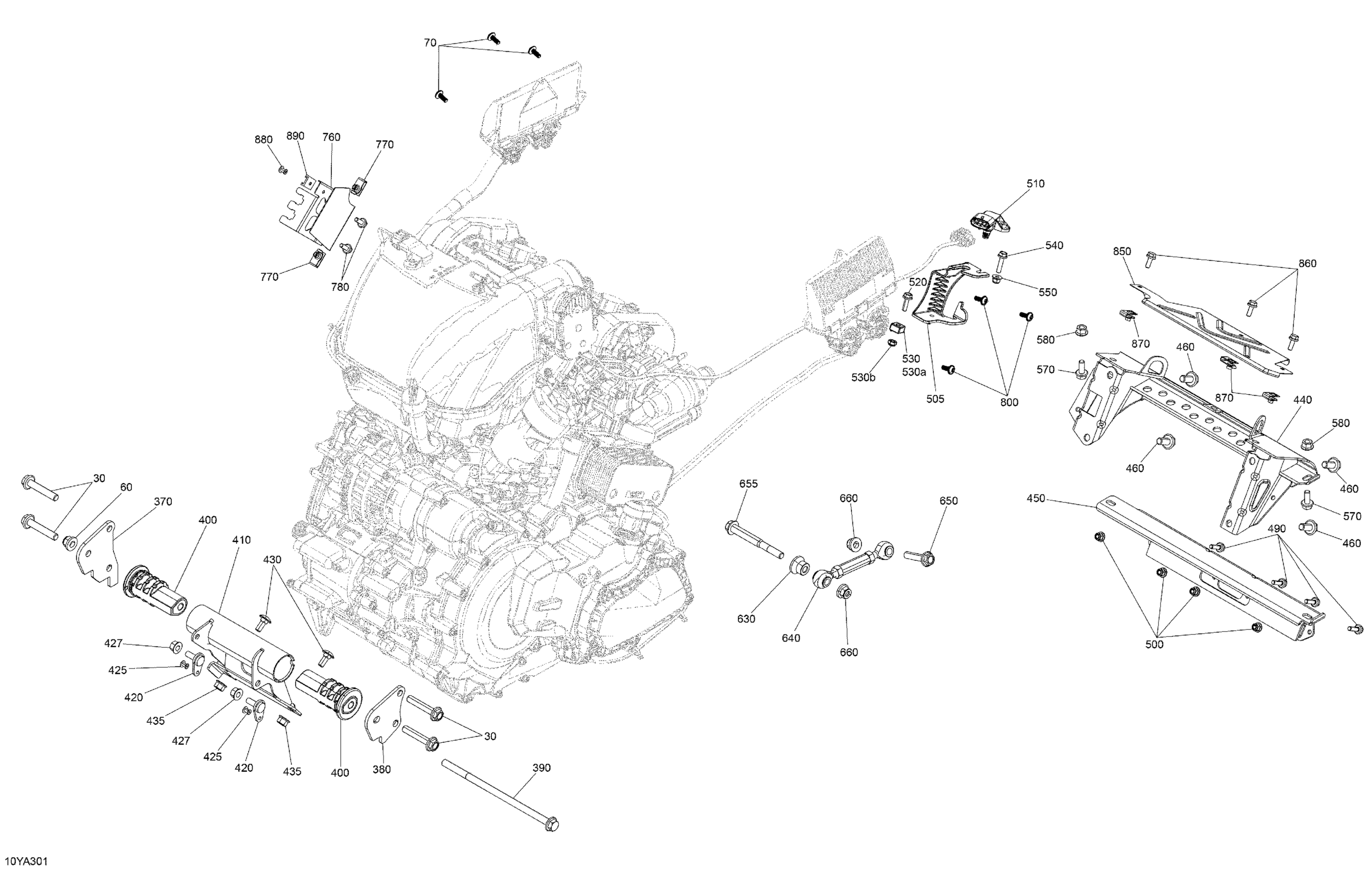

Can-Am RT - Chalk Metallic, 2021 Engine - System Diagram

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$4.00

Hex. Flange Elastic Nut M10

233201436

$1.74

Oval Head Torx Screw K60 X 16

250000546

$1.74

LH Engine Support

707001293

$22.00

RH Engine Support

707001294

$22.00

Hex. Flange Screw M10 X 220

250000507

$8.00

Rubber Mount

707000973

$90.00

Frame Extension

707000877

$95.00

Attach

707001292

$19.00

Pop Rivet 3/16"

390402300

$0.75

Hex. Flange Nut

233081436

$1.63

Carriage Bolt M8 X 20

207782046

$2.00

Hex. Flange Nut

233081436

$1.63

Front Engine Support

707001561

$105.00

Rubber Mount

707000876

$135.00

Hex Flange Screw M10 X 20

207502044

$4.28

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6

233261466

$1.66

Sensor Support

707002675

$3.00

Pressure And Temperature Sensor

707000995

$70.82

Hex. Flange Screw M6 X 20

207662054

$0.83

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

Hex. Elastic Stop Nut M6

232561600

$0.92

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Elastic Nut M6

233261466

$1.66

Hex. Flange Screw M8 X 20

207682046

$1.82

Hex. Flange Nut

233081436

$1.63

Spacer

707001736

$27.00

Connecting Rod

707001918

$64.00

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

Hex. Flange Screw M10 X 100

250001099

$12.00

Hex. Flange Elastic Nut M10

233201436

$1.74

Connector Support

707001353

$15.00

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Oval Head Torx Screw K60 X 16

250000546

$1.74

Upper Heat Deflector

707601057

$24.00

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Panel Nut M6 X 1.0

250100198

$1.73

Pop Rivet 3/16"

390402200

$0.26

Clip

270000141

$8.33
