Description

Price

10

Carbon Black, Secondary Mufller | Includes 10 to 10p

219800492

$953.99

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

10c

Panel Nut M6 X 1.0

250100198

$2.11

10d

Black, Flat Washer 6 mm

234061670

$1.25

10e

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10f

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

10g

Panel Nut M6 X 1.0

250100198

$2.11

10h

Black, Flat Washer 6 mm

234061670

$1.25

10j

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10k

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

10p

Black, Flat Washer 6 mm

234061670

$1.25

10n

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

20

Primary Exhaust Muffler | Includes 20 to 20y

707603211

$1,197.49

20

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

707602866

$1,197.49

20

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

707602866

$1,197.49

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$338.99

40

Exhaust Manifold | Includes 40 to 40j

707601922

$769.99

50

Hex. Flange Nut

233081436

$2.00

60

Exhaust Seal

707601985

$7.94

70

Exhaust Clamp

707600980

$24.99

80

Exhaust Clamp

707600980

$24.99

90

Exhaust Gasket

514054174

$28.49

100

Black (Epoxy), Exhaust Support | Includes 100 to 100b

707602839

$35.99

110

Hex. Flange Screw M8 X 55

207585544

$1.69

140

Anti-Vibration Rubber

293830162

$13.22

150

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

160

Washer 10 mm

506150000

$2.74

170

Hex. Flange Nut M10

233101600

$5.29

190

Bushing | Includes 240d to 240d1

503189282

$4.34

220

Spring

415107100

$6.35

350

Anti-Vibration Rubber

707600702

$8.57

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

370

Hex. Flange Screw M6 X 12

210261250

$1.90

460

Oxygen Sensor

707600872

$144.99

500

Heat Shield interior

707603641

$53.99

510

Heat Shield Exterior

707603642

$53.99

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

530

Flat Washer M6, Stainless

234062600

$0.77

540

Panel Nut M6 X 1.0

250100198

$2.11

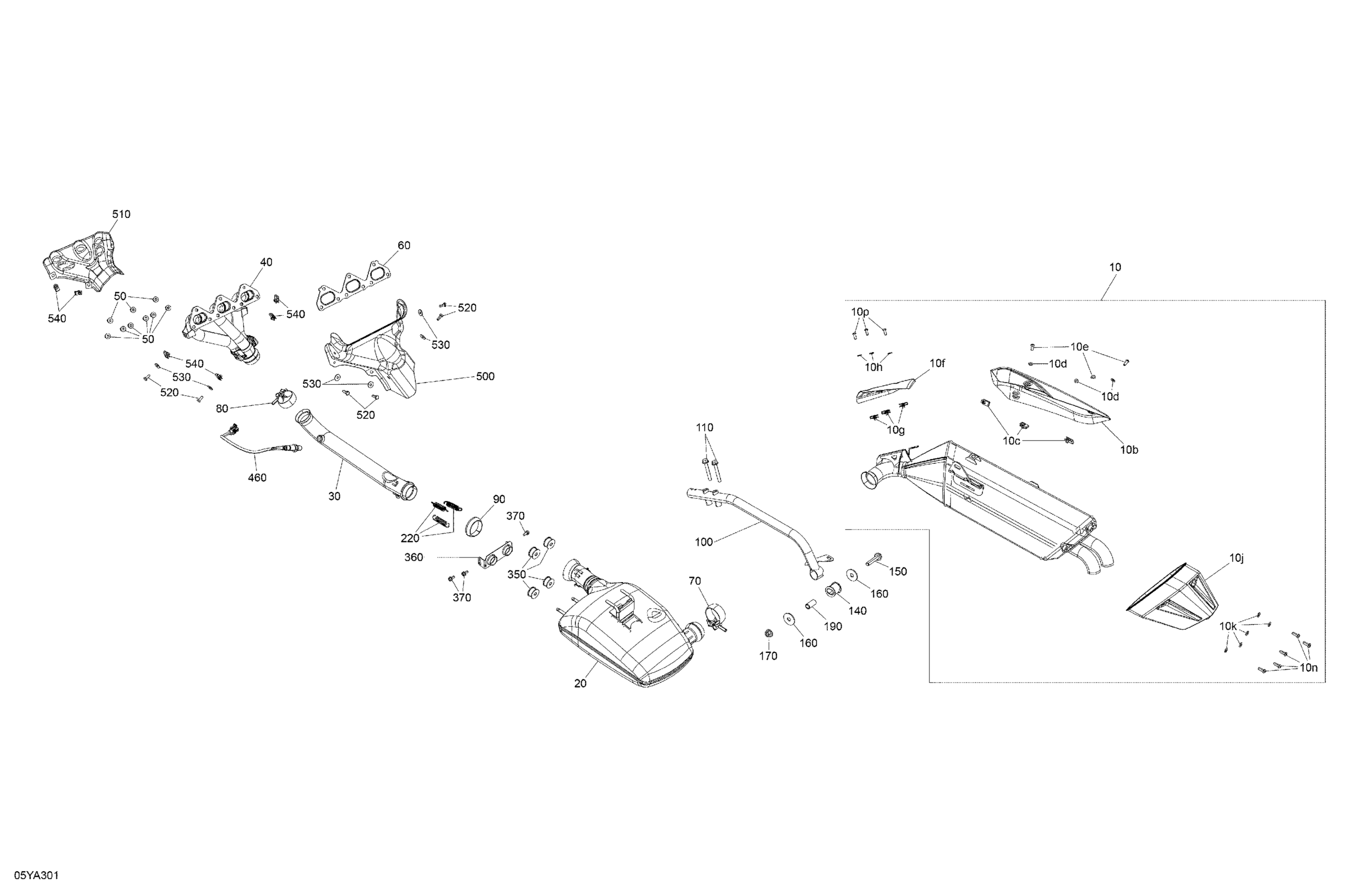

Can-Am RT - Chalk Metallic, 2021 Engine - Exhaust Diagram

Carbon Black, Secondary Mufller | Includes 10 to 10p

Carbon Black, Heat Shield | Includes 10b to 10b2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, Heat Shield | Includes 10g to 10g2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Primary Exhaust Muffler | Includes 20 to 20y

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

Exhaust Tuned Pipe | Includes 30 to 30d

Exhaust Manifold | Includes 40 to 40j

Hex. Flange Nut

Exhaust Seal

Exhaust Clamp

Exhaust Clamp

Exhaust Gasket

Black (Epoxy), Exhaust Support | Includes 100 to 100b

Hex. Flange Screw M8 X 55

Anti-Vibration Rubber

Hex. Flange Screw M10 X 50, Scotch Grip

Washer 10 mm

Hex. Flange Nut M10

Bushing | Includes 240d to 240d1

Spring

Anti-Vibration Rubber

Front Bracket | Includes 360 to 360b1a

Hex. Flange Screw M6 X 12

Oxygen Sensor

Heat Shield interior

Heat Shield Exterior

Hex. Screw M6 X 16, Scotch Grip

Flat Washer M6, Stainless

Panel Nut M6 X 1.0
